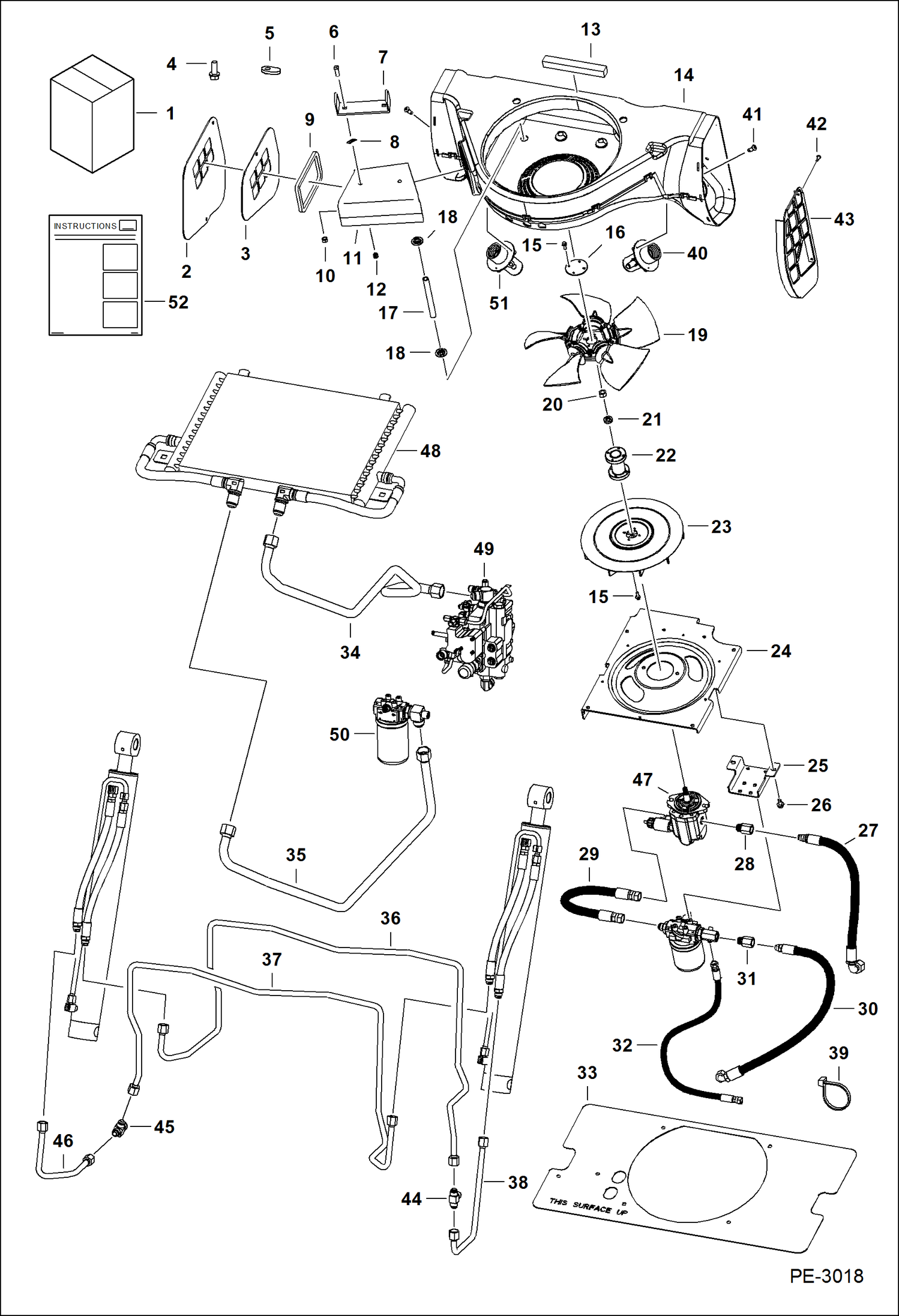

Запчасти Bobcat A-Series COOLING UPGRADE KIT (S/N 539911674 & Below, 540011360 & Below) ACCESSORIES & OPTIONS

1

7126319

KIT, UPGRADE COOLING Ref. 2-38 & 51 - When ordering this kit for machines with high flow option, also Order 7127538 high flow cooling kit

2

7124566

COVER for A300, S250, S300, S330 & T300

3

7124567

COVER for S220 & T250

4

31C636

BOLT

5

634187

NUT,SPTWLD

6

10C612

BOLT

7

7131534

MOUNT weld on - part of main frame

8

6684033

NUT

9

7126496

SEAL

10

57D6

NUT 5

11

CHUTE NLA - Order 714037 chute - Was 7124826 - A

11

7140307

CHUTE does not use Ref. 12

12

6649949

PLUG Use W/Ref. 11 (NLA/ 7124826 chute)

13

7126863

SEAL

14

7134338

HOUSING

15

49C412

BOLT

16

7125948

PLATE

17

7131872

SPACER

18

7131873

WASHER

19

7152335

FAN, ENG COOLANT Was 7128719 - A

20

96D8

NUT

21

6701097

WASHER

22

7128728

HUB

23

7123766

FAN

24

7126457

MOUNT

25

7126458

BRACKET

26

84G3712

BOLT 5

27

7137691

HOSE Also Order Ref. 28 - Was 7124797 - A

28

15HB1010

ADAPTER, COUPLER quick lock - Also Order Ref. 27 - Was 15HB1210 - B,D

29

7124832

HOSE

30

7124827

HOSE

31

15HB1010

ADAPTER, COUPLER quick lock - Was 78HA1010 - A

32

7125723

HOSE

33

7127216

TEMPLATE

34

7125181

TUBELINE cooler

35

7125182

TUBELINE filter

36

7126874

TUBELINE lift

37

7126873

TUBELINE lift

38

7126937

TUBELINE lift

39

6624289

STRAP, TIE

40

INLET Not in kit - use existing part

41

SCREW Not in kit - use existing part

42

SCREW Not in kit - use existing part

43

LOUVER Not in kit - use existing part

44

FITTING Not in kit - use existing part

45

FITTING Not in kit - use existing part

46

TUBELINE Not in kit - use existing part

47

HYD MOTOR Not in kit - use existing part

48

COOLER ASSY Not in kit - use existing part

49

VALVE ASSY Not in kit - use existing part

50

FILTER ASSY Not in kit - use existing part

51

INLET Not in kit - use existing part

52

6904896

INSTRUCTIONS
