Запчасти Bobcat A-Series CONTROLS ELECTRICAL ELECTRICAL SYSTEM

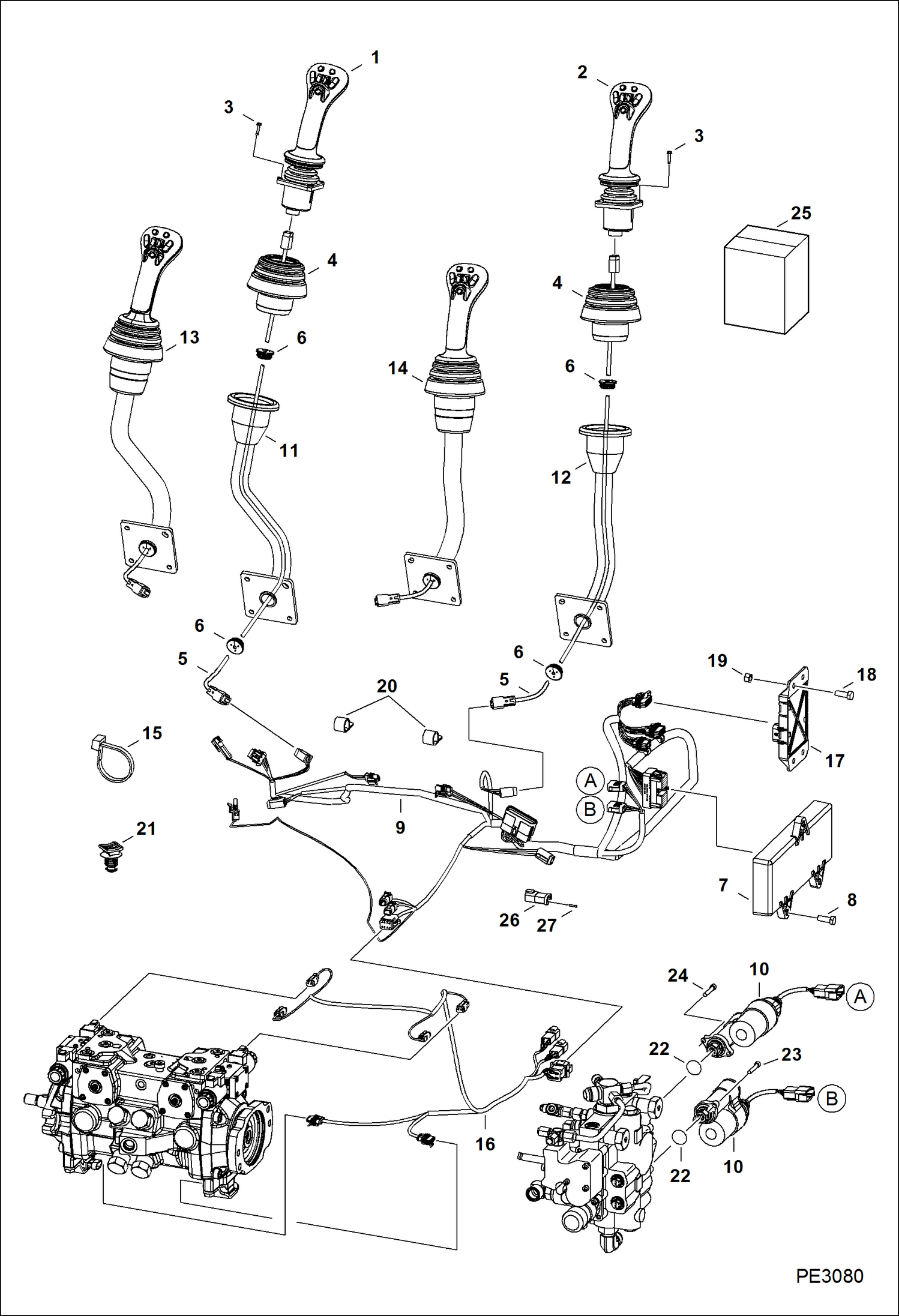

Схема запчастей Bobcat A-Series - CONTROLS ELECTRICAL ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

JOYSTICK LH NSS - Order Ref. 13 - Was 6687883 - A

2

JOYSTICK RH NSS - Order Ref. 14 - Was 6687882 - A

3

BOLT NSS - Order Ref. 25 - Was 6678659 - A

4

6678903

BOOT

5

HARNESS NSS - Order Ref. 25 - Was 6729397 - A

6

6684294

GROMMET

7

6679487

CONTROLLER, JOYSTICK DRIVE joystick

8

43C616

BOLT

9

7113323

HARNESS AWS joystick control

10

7101672

ACTUATOR W/Ref. 22

11

HANDLE NSS - LH - Order Ref. 13 - Was 6729792 - A

12

HANDLE NSS - RH - Order Ref. 14 - Was 6729791 - A

13

JOYSTICK ASMBLY LH LH - Ref. 1, 3-6 & 11 - Order Ref. 25 - Was 7111993 - A

14

JOYSTICK ASMBLY RH RH - Ref. 2-6 & 12 - Order Ref. 25 - Was 7111992 - A

15

6624289

STRAP, TIE

16

7131601

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - Was 7114735 - B,D

16

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

97D6

NUT 10

20

30H42

CLAMP

21

6681871

MOUNT

22

58K120

O-RING Use W/Ref. 10 - Was 6686220 - B,D

23

69G436

BOLT

24

29G416

BOLT

25

7126558

KIT, JOYSTICK

26

6691419

CONNECTOR, ELECTRICAL

27

6665370

PLUG

Выбрано товаров: 28
