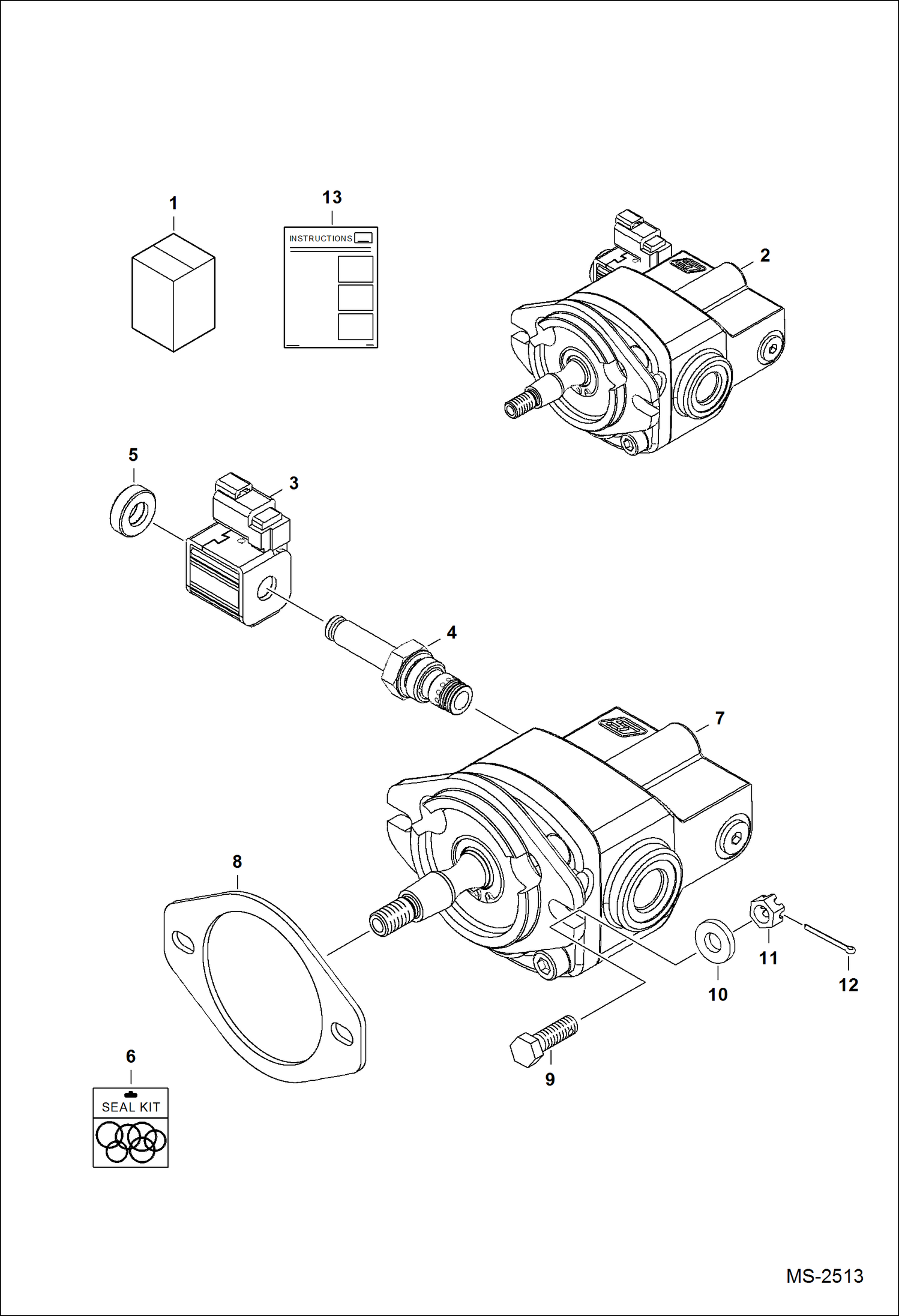

Запчасти Bobcat A-Series COOLING FAN MOTOR (Cast Iron) (S/N 539939999 & Below, 540039999 & Below) HYDROSTATIC SYSTEM

1

KIT, MOTOR FAN See BTI384

2

MOTOR, HYD COOLING FAN See BTI384 - cast iron - Ref. 2-8

3

COIL See BTI384 - W/metal cover

4

VALVE See BTI384 - stem - W/Ref. 5

5

NUT W/pre-applied thread locker

6

KIT, SEAL NSS - Order Ref. 1

7

MOTOR, HYD COOLING FAN NSS - Order Ref. 1

8

6698062

GASKET, MOTOR

9

7147826

BOLT, CROSS DRILLED

10

25E17

WASHER 5 .05'' thick

10

6557831

WASHER 0.15'' thick - 0.88'' OD

11

3D6

NUT

12

1F316

PIN

13

6986799

INSTRUCTIONS
