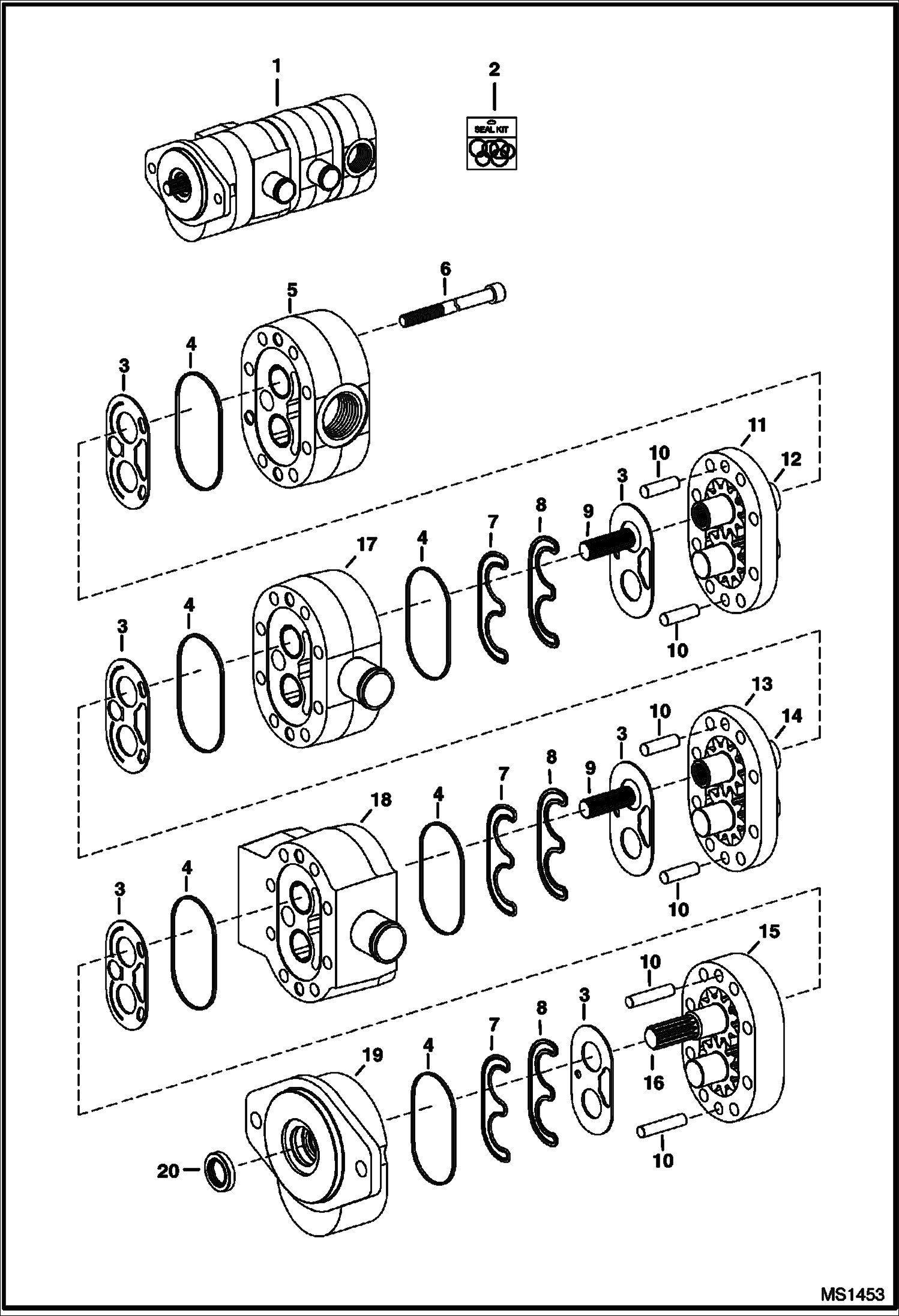

Запчасти Bobcat A-Series GEAR PUMP HYDROSTATIC SYSTEM

1

6686889

GEAR PUMP 163D72002

2

6688321

SEAL KIT Ref. 3, 4, 7, 8 & 20

3

WEAR PLATE NSS

4

SEAL, SECTION NSS

5

HOUSING, REAR NSS

6

BOLT NSS

7

SEAL, PRE-LOAD NSS

8

SEAL, LOAD NSS

9

CONNECTOR, SPLINE NSS

10

PIN NSS

11

HOUSING, GEAR NSS

12

GEAR SET NSS

13

HOUSING, GEAR NSS

14

GEAR SET NSS

15

HOUSING, GEAR NSS

16

GEAR SET NSS - drive

17

HOUSING, CENTER NSS

18

HOUSING, CENTER NSS

19

HOUSING, FRONT NSS

20

SEAL, SHAFT NSS
