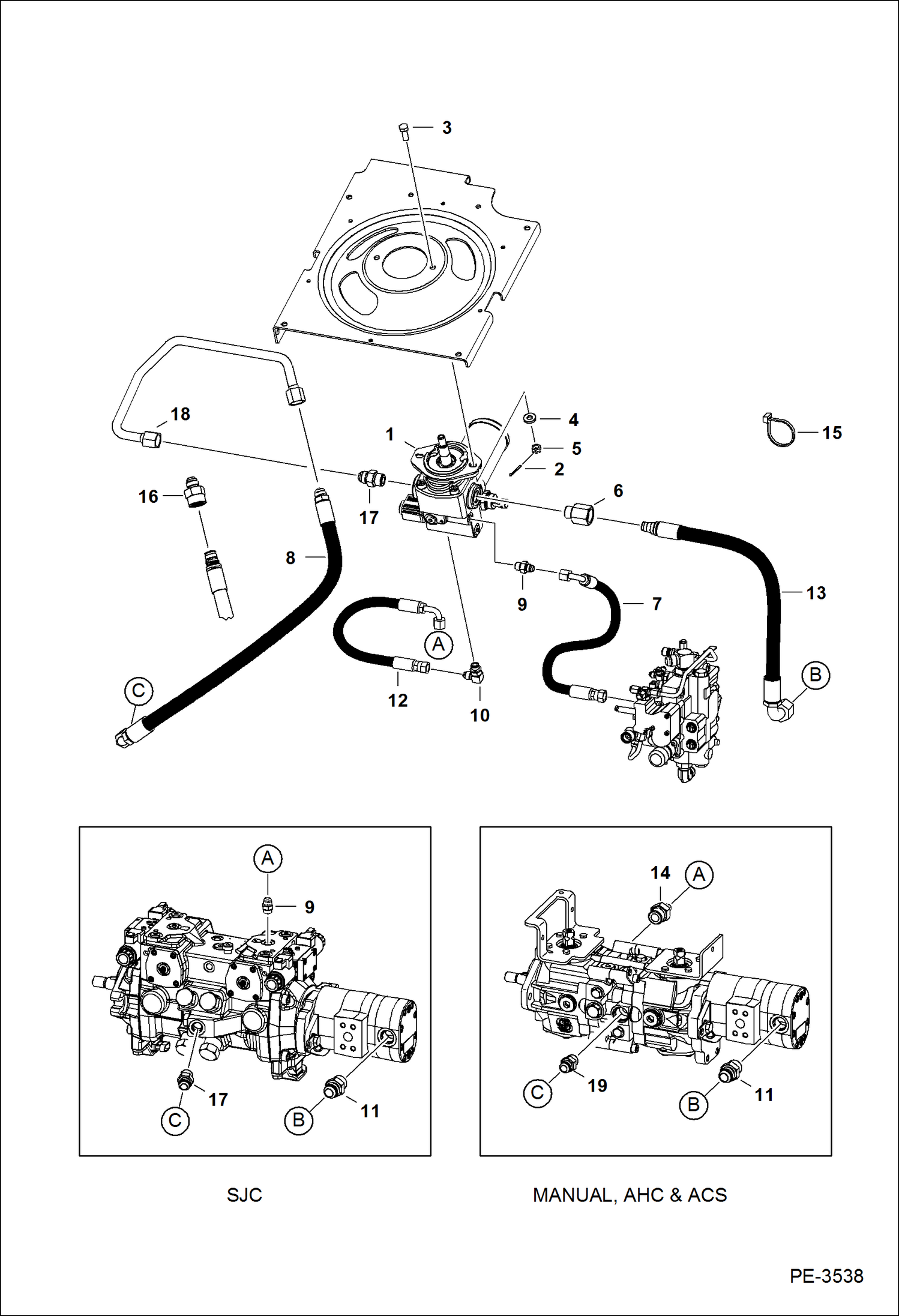

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Cooling Fan Motor) (S/N 539940001 & Above, 540040001 & Above) HYDROSTATIC SYSTEM

1

7164320

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514 - cast iron - Also Order (2) of Ref. 2 - Was 7132033 - A

2

1F316

PIN

3

7147826

BOLT, CROSS DRILLED

4

6557831

WASHER

5

3D6

NUT

6

15HB1010

ADAPTER, COUPLER quick lock - Also Order Ref. 13 - Was 78HA1010 - A

6

79K10

O RING 10

7

7147678

HOSE, HYD

8

7185483

HOSE, HYD Was 7124827 - B

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

15KB1212

FITTING, HYD CONNECTOR

11

79K12

O RING 10

12

6578804

HOSE

13

7137691

HOSE Also Order Ref. 6 - Was 7124797 - A

14

15KB0612

FITTING, HYD CONNECTOR

14

79K12

O RING 10

15

6624289

STRAP, TIE

16

ADAPTER, UNION NLA - Order Ref. 8 (7185483 hose) - Was 7154342 - A

16

79K10

O RING 10

17

15KB1008

FITTING, HYD CONNECTOR SJC

17

79K8

O RING 10

18

7149908

TUBELINE

19

15KB1010

FITTING, HYD CONNECTOR

19

79K10

O RING 10
