Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Cooler) (W/O Cooling Upgrade) (S/N 539911674 & Below, 540011360 & Below) HYDROSTATIC SYSTEM

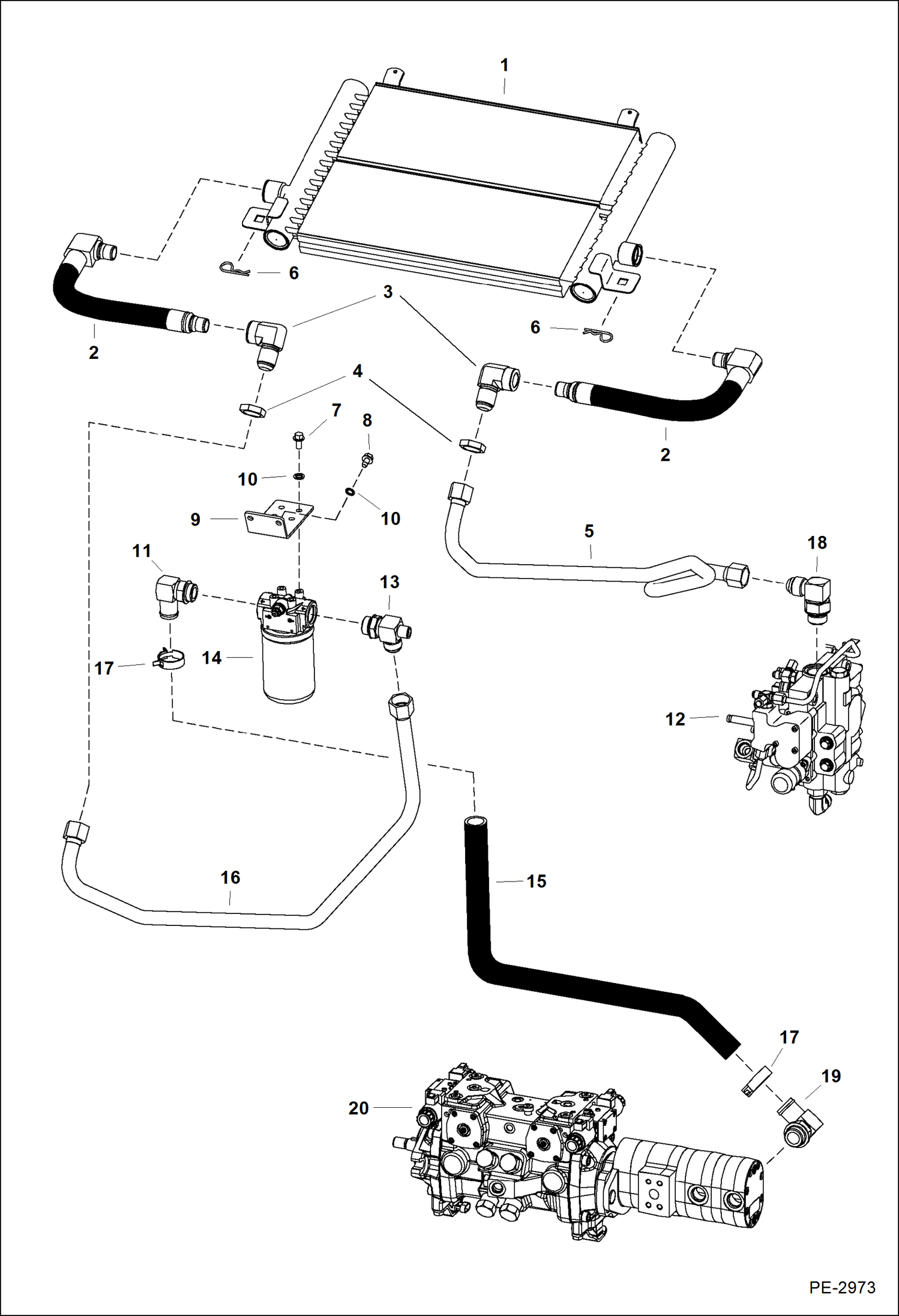

Схема запчастей Bobcat A-Series - HYDROSTATIC CIRCUITRY (W/Cooler) (W/O Cooling Upgrade) (S/N 539911674 & Below, 540011360 & Below) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7103750

EXCHANGER, OIL COOLER See BTI391 STC-16 fitting

1

6688523

SEAL KIT STC-16

2

7103751

HOSE STC-16 fitting

2

6688523

SEAL KIT STC-16

3

7103749

ELBOW STC-16 fitting

3

6690950

O-RING

3

6688523

SEAL KIT STC-16

4

86F10

NUT

5

7115091

TUBELINE

6

1318565

COTTER PIN

7

35C612

BOLT

8

84G3710

SCREW

9

7103903

MOUNT filter

10

6E6

WASHER

11

6697791

ELBOW Was 6729306 - B

12

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

13

6731527

TEE

13

79K16

O RING 10

14

6678155

FILTER ASSY

14

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

15

7108760

HOSE

16

7113355

TUBELINE

17

5HM42

HOSECLAMP

18

6813964

ELBOW

18

79K16

O RING 10

18

58K022

O-RING 10

19

7112788

ELBOW

20

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2975

Выбрано товаров: 28
