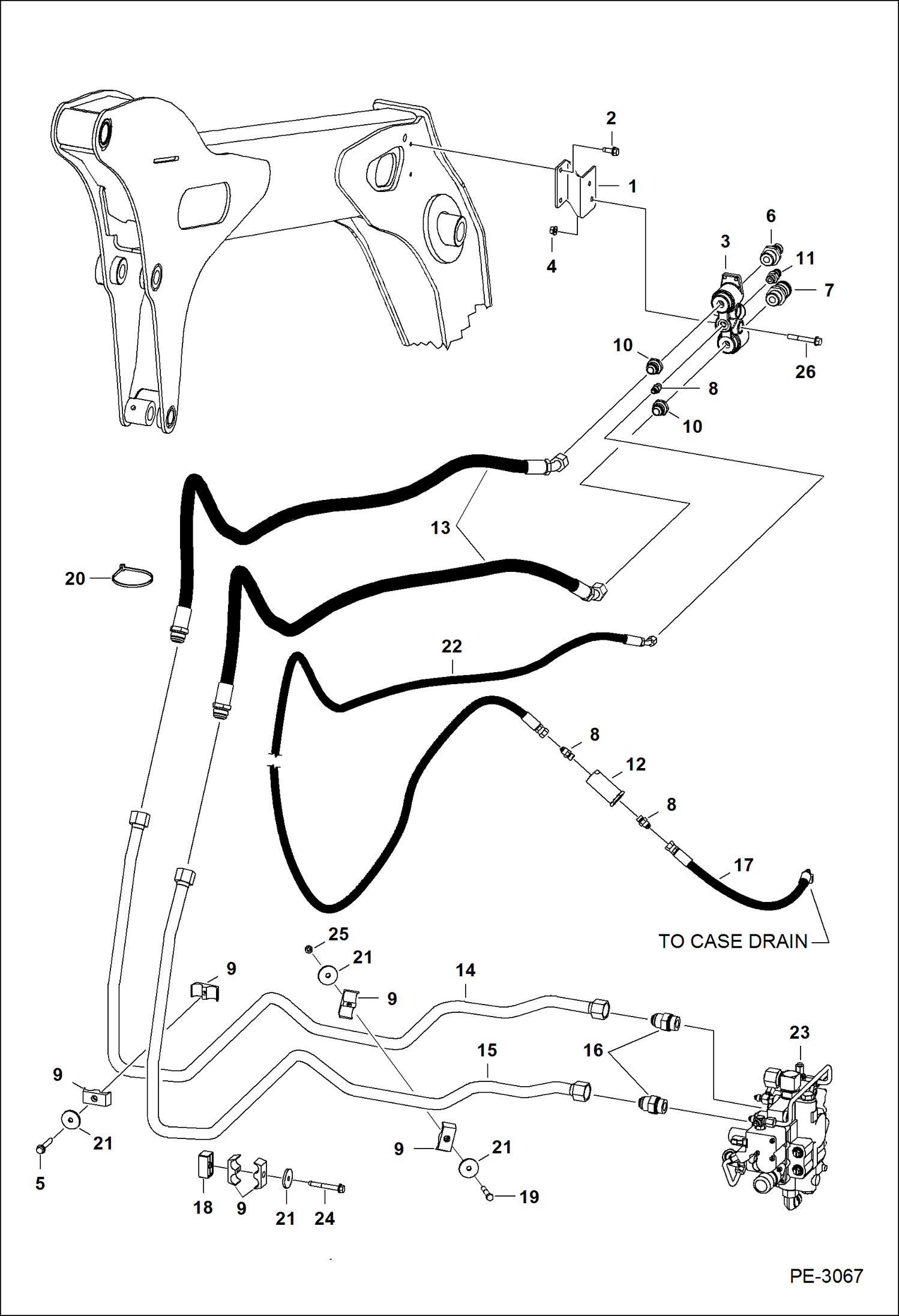

Запчасти Bobcat A-Series AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

7102414

BRACKET

2

84G3716

SCREW 5

3

6678076

BLOCK Ref. 6, 7 & 11 & (2) of Ref. 10

4

83D6

NUT 5

5

84G3740

BOLT

6

6679837

COUPLER male

6

6679841

SEAL blue - front

6

6680020

SEAL KIT (3) O-rings & (3) back-up washers

7

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

15KB0606

FITTING, HYD CONNECTOR

8

79K6

O RING 10

9

6729320

CLAMP

10

6679836

ADAPTER W/spring

11

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

11

6679840

SEAL blue - front

12

6661022

FILTER, OIL HYD IN-LINE

13

6734769

HOSE, HYD ASSY

14

7114817

TUBELINE

15

7114816

TUBELINE

16

15KB1616

FITTING, HYD CONNECTOR

16

79K16

O RING 10

17

7106215

HOSE

18

7113465

SPACER

19

17C640

BOLT 5

20

6624289

STRAP, TIE

21

872229

WASHER

22

6729746

HOSE

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

24

84G3748

BOLT

25

59D6

NUT

26

31C644

BOLT
