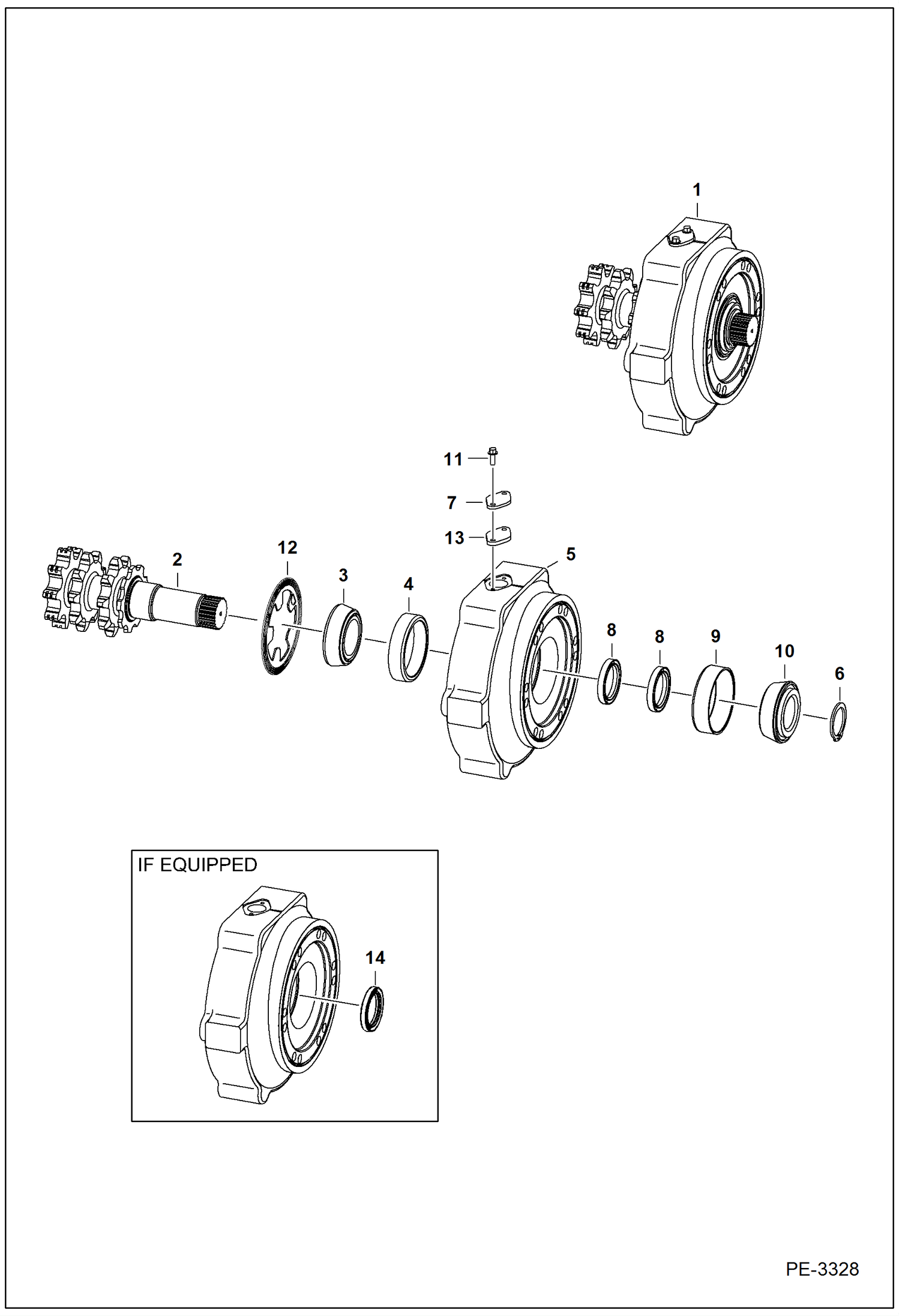

Запчасти Bobcat A-Series MOTOR CARRIER (Drive Motor Mount Assy) (W/Speed Sensor) (S/N 539912963 & Above) (S/N 540011426 & Above) DRIVE TRAIN

1

CARRIER, MOTOR See BTI419 - NLA - drive motor - Ref. 2-13 - Was 7126215 - A

2

7147579

SHAFT TRANS

3

6664845

CONE, BEARING

4

6650120

RACE

5

HOUSING See BTI419 - NLA - Was 6729663 - A

6

6693415

RING

7

6730013

COVER

8

6665755

SEAL, OIL

9

7100240

RACE

10

6693525

BEARING

11

35C412

BOLT

12

6690561

MAGNET speed sensor

13

7110287

GASKET

14

SHAFT, TRANS NLA - Order Ref. 2, 6 & 10 - Was 7126214 - A

15

SNAP RING NLA - Order Ref. 6 & 10

16

SPACER NLA - Order Ref. 6 & 10

17

BEARING NLA - Order Ref. 6 & 10
