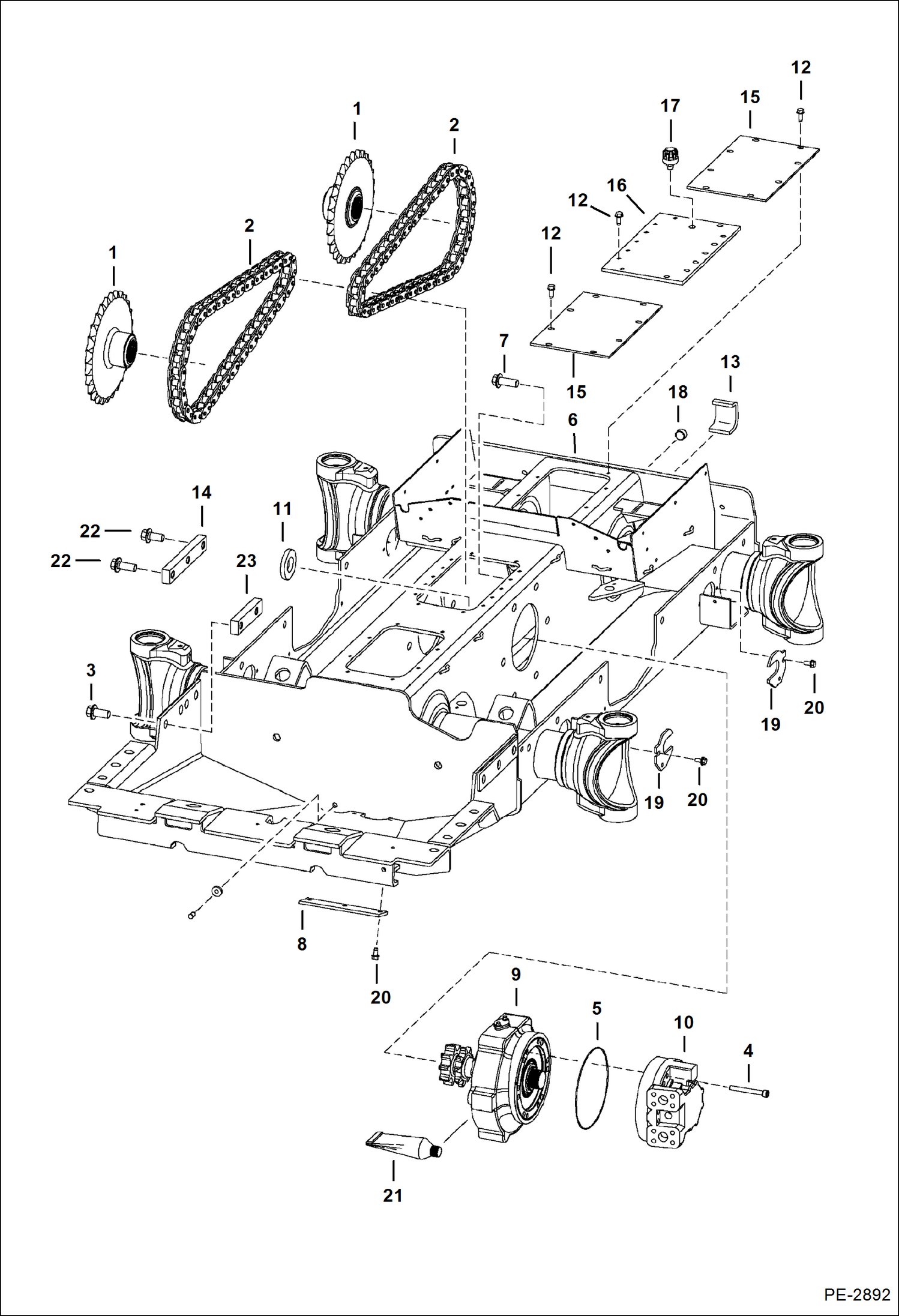

Запчасти Bobcat A-Series DRIVE TRAIN DRIVE TRAIN

1

7134165

SPROCKET Was 7107511 - A

2

7106862

CHAIN, DRIVE endless - 48 pitches

2

6690988

CHAIN, DRIVE service

2

6691078

LINK connecting

3

31C1228

BOLT

4

6717806

BOLT

5

25K30816

O-RING Was 25K30812 - B,D

6

7113822

CHAINCASE

7

6678971

BOLT motor mount

8

6700182

COVER, DRAIN

9

MOUNT ASSY See Illustration MOTOR CARRIER/ PE1395

10

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2218

11

6680055

MAGNET

12

84G3716

SCREW 5

13

6706485

HOOK tie down - weld-on

14

6706857

BLOCK 3 hole threaded

15

7129987

COVER Was 6733956 - A

16

7130369

COVER Was 6734642 - A

17

7025626

VENT, BREATHER - Was 6684923 - A

18

6731121

PLUG chaincase fill

19

6731052

COVER

20

84G3712

BOLT 5

21

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

22

31C1224

BOLT

23

7124840

BAR 2 hole threaded
