Запчасти Bobcat A-Series PANELS MAIN FRAME

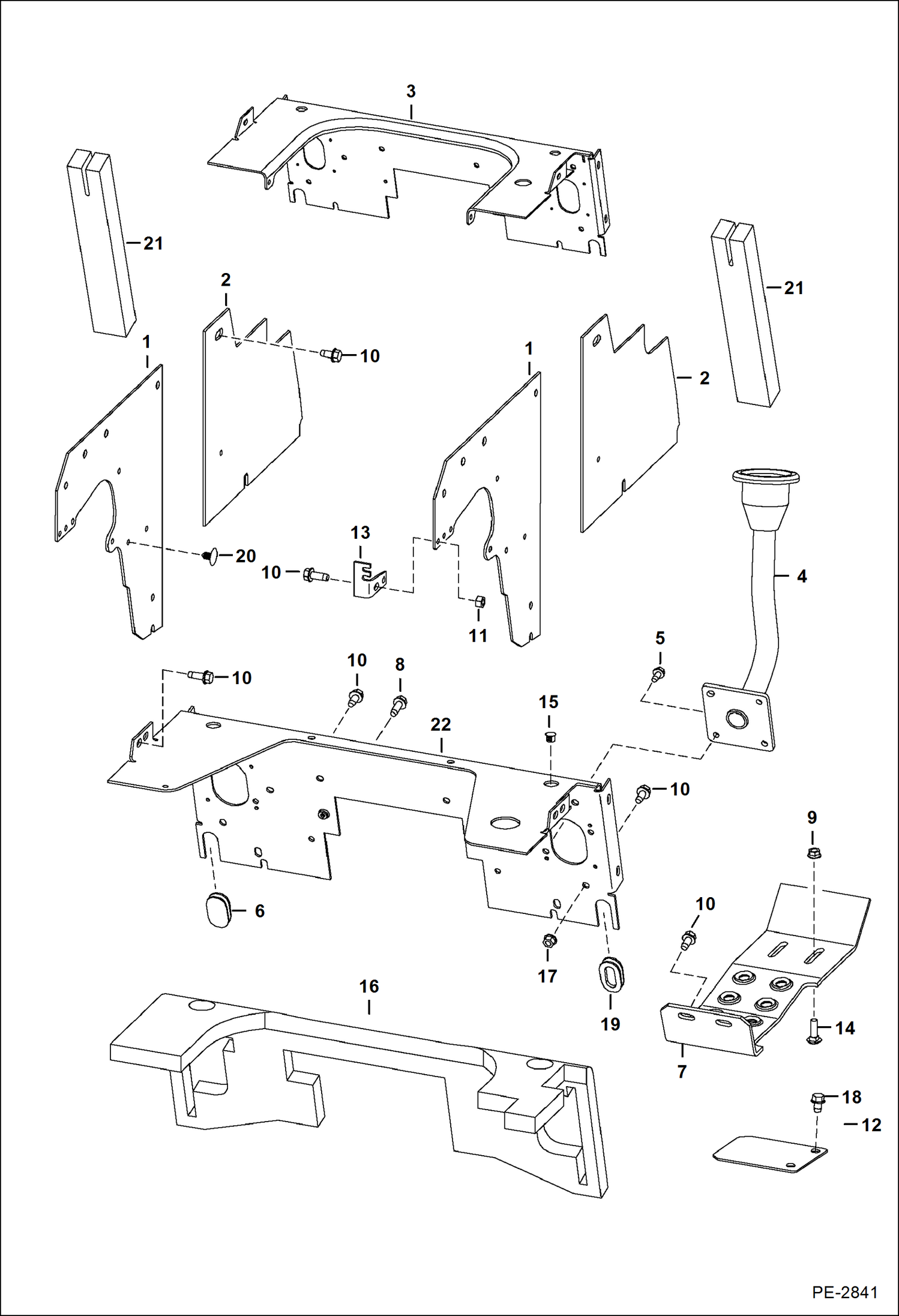

Схема запчастей Bobcat A-Series - PANELS MAIN FRAME

Артикул

Название

Примечание

Количество

1

6734521

PANEL

2

7117124

PANEL

3

7106707

SHIELD

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE3080 - NLA - joystick - R.H. - Order 7111992 joystick assembly - Was 6729791 - A

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE3080 - NLA - joystick - L.H. - Order 7111993 joystick assembly - Was 6729792 - A

5

35C512

BOLT

6

6714726

GROMMET

7

6729237

STEP

8

84G3716

SCREW 5

9

57D6

NUT 5

10

84G3712

BOLT 5

11

95D6

NUT

12

6729774

COVER cylinder access

13

6732450

BRACKET cable

14

37C620

BOLT

15

6648348

PLUG 0.81'' dia hole

16

6716800

INSULATION Use W/Ref. 3

16

7139184

INSULATION Use W/Ref. 22

17

89D5

NUT

18

84G3710

SCREW

19

6577961

GROMMET

20

6674895

RETAINER

21

6732618

SEAL

22

7139183

SHIELD

Выбрано товаров: 24
