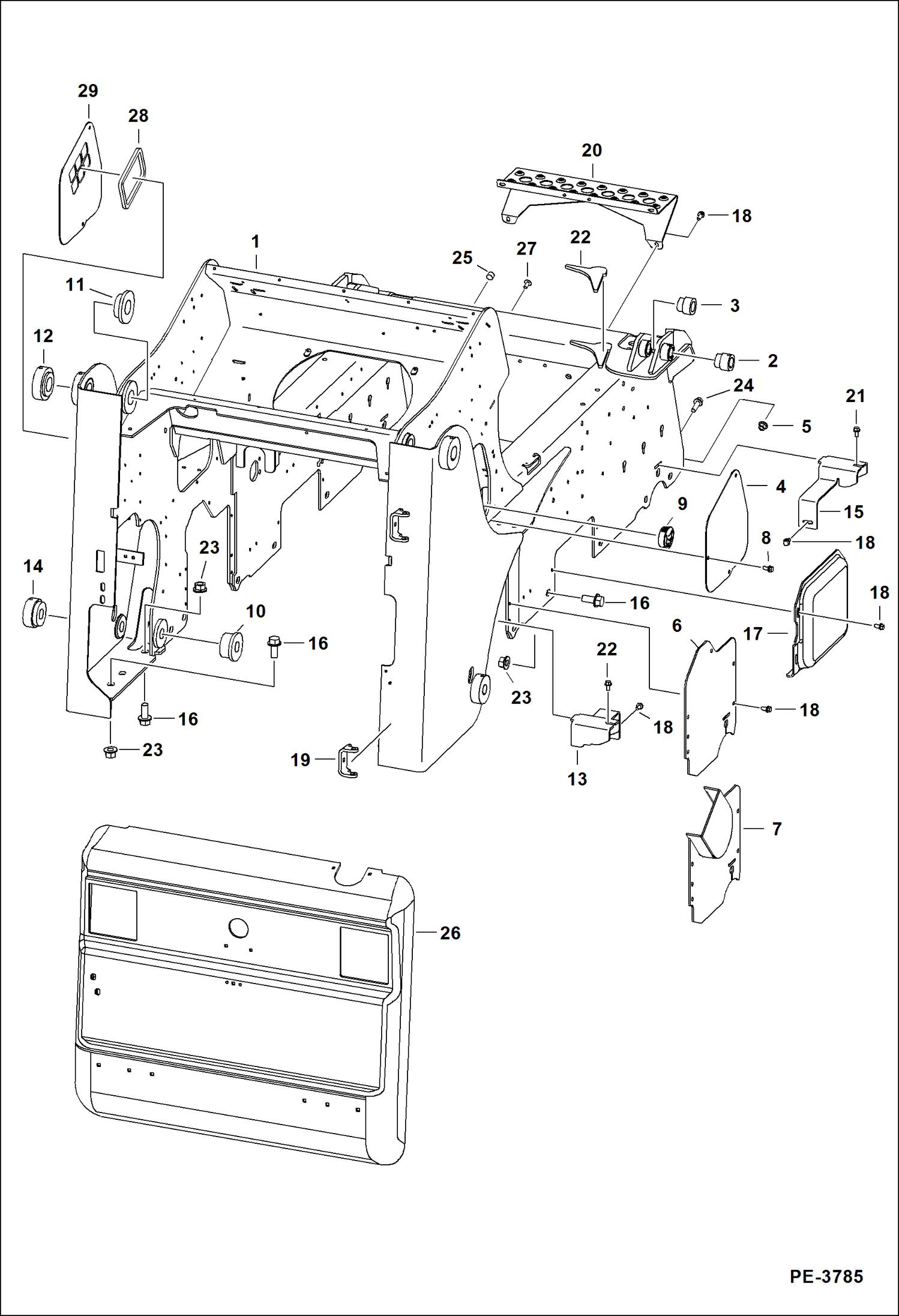

Запчасти Bobcat A-Series MAIN FRAME (S/N 539940028 & Above) MAIN FRAME

1

7150199

FRAME, MAIN ASSY

2

6717277

BUSHING, WELD-ON weld-on

3

6717278

BUSHING, WELD-ON

4

6730783

COVER

5

83D8

NUT 5

6

7124839

COVER for std. flow

7

7135766

COVER for high flow - remove and discard Ref. 16 bolt that interferes with cover

8

84G3708

SCREW

9

6718796

PLUG

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

7145686

SHIELD wheel sensor - L.H. front and R.H. rear

14

6730784

BUSHING outside upright weld-on

15

7145685

SHIELD wheel sensor - R.H. front and L.H. rear

16

31C1228

BOLT

17

6719168

COVER

18

84G3712

BOLT 5

19

6708987

HINGE, WELD-ON

20

6732577

STEP, MFR

21

35C612

BOLT

22

6733917

GUSSET

23

53D12

NUT

24

31C824

BOLT 10

25

6679966

PLUG .687'' diameter hole

26

6729991

REAR DOOR

27

6669308

RETAINER

28

7126496

SEAL

29

7124566

COVER W/vent holes
