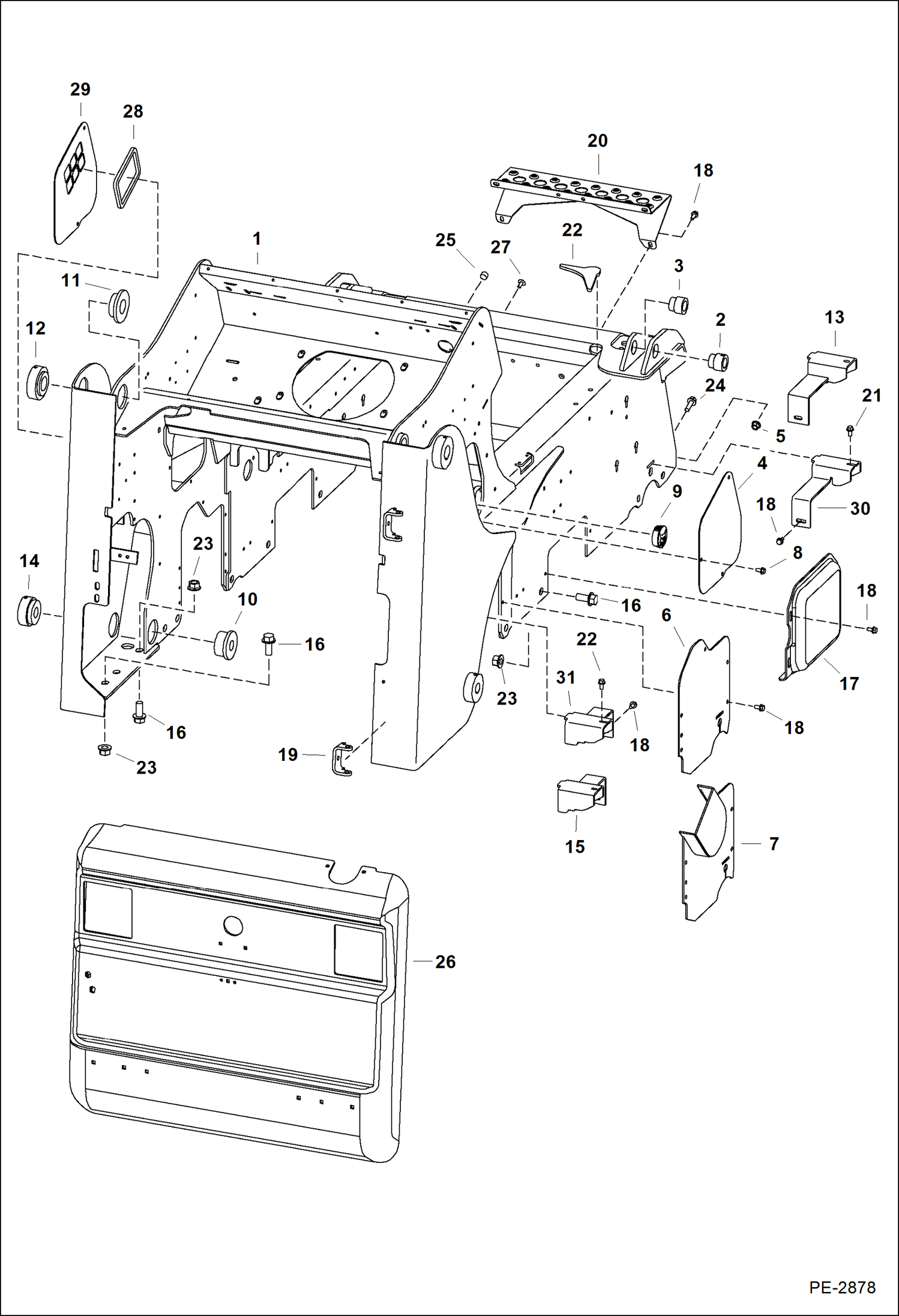

Запчасти Bobcat A-Series MAIN FRAME (S/N 539940027 & Below) MAIN FRAME

1

MAIN FRAME NLA - Order 7150199 - Also Order 7142858, 7142859 tubeline, 7142876 bulkhead mount & (3) of 84G3712 screw - if cooling has not been upgraded, Also order cooling upgrade kit (7126319) - Was

1

MAIN FRAME NLA - Order 7150199 - Also Order 7142858, 7142859 tubeline, 7142876 bulkhead mount & (3) of 84G3712 screw - Was 7124884 - A

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

6717277

BUSHING, WELD-ON weld-on

3

6717278

BUSHING, WELD-ON

4

6730783

COVER

5

83D8

NUT 5

6

COVER NLA - Order 7124839 and remove and discard Ref. 16 bolt that interferes with cover - Was 7107573 - A

6

7124839

COVER

7

COVER NLA - Order 7135766 and remove and discard Ref. 16 bolt that interferes with cover - Was 7111740 - A

7

7135766

COVER for High Flow Option

8

84G3708

SCREW

9

6718796

PLUG

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

SHIELD NLA - R.H. front - Order 7145685 shield - Was 6731354 - A

13

SHIELD NLA - L.H. front - Order 7145686 shield - Was 6731353 - A

14

6730784

BUSHING outside upright weld-on

15

SHIELD NLA - R.H. rear - Order 7145686 shield - Was 6731782 - A

15

SHIELD NLA - L.H. rear - Order 7145685 shield - Was 6731783 - A

16

31C1228

BOLT

17

6719168

COVER

18

84G3712

BOLT 5

19

6708987

HINGE, WELD-ON

20

6732577

STEP, MFR

21

35C612

BOLT

22

6733917

GUSSET

23

53D12

NUT

24

31C824

BOLT 10

25

6679966

PLUG .687'' diameter hole

26

6729991

REAR DOOR See Illustration REAR DOOR/ PE2951

27

6669308

RETAINER

28

7126496

SEAL

29

6730783

COVER W/O vent holes - See Ref. 4

29

7124566

COVER W/vent holes

30

7145685

SHIELD wheel sensor - R.H. front and L.H. rear

31

7145686

SHIELD wheel sensor - L.H. front and R.H. rear
