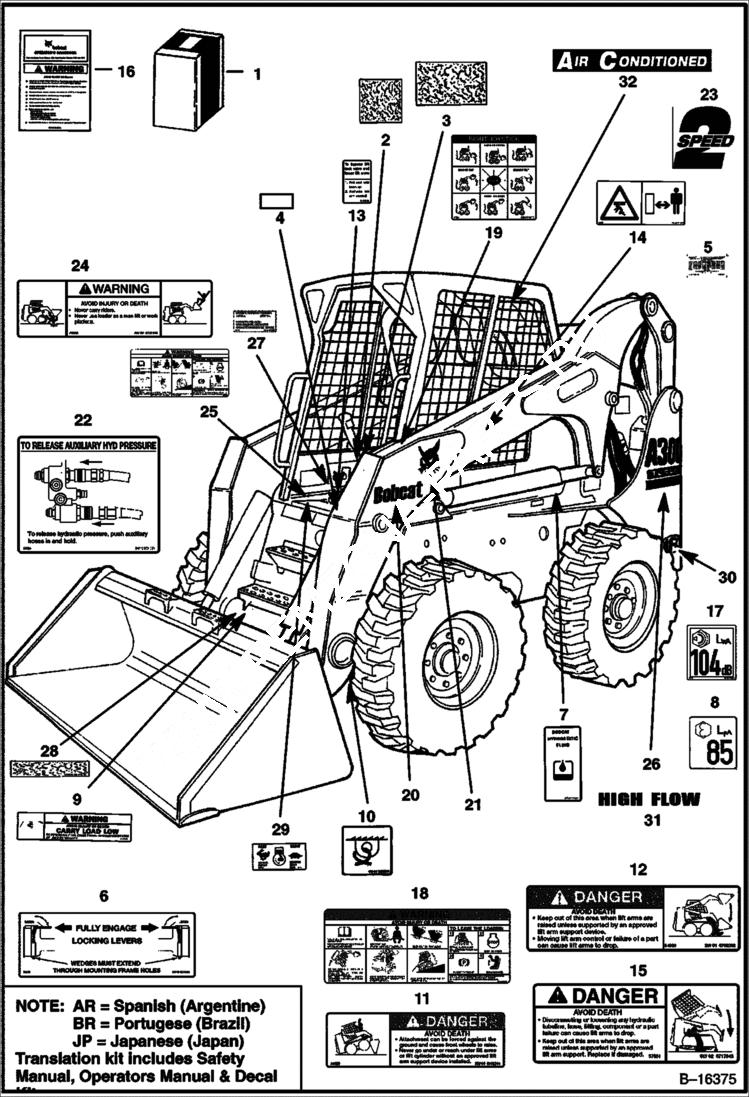

Запчасти Bobcat A-Series DECALS ACCESSORIES & OPTIONS

1

KIT decal

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

1

7101414AR

KIT translation - SEE NOTE - tier II

1

7101414BR

KIT translation - SEE NOTE - tier II

2

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6555341

SAFETY TREAD 3'' x 12'' (76mm x 305mm)

5

DECAL NLA - patent - Was 6557224 - C

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

8

6579385

DECAL noise warning - Europe only

9

6579528

DECAL, WARNING carry load low

10

6727595

DECAL

11

6702301

DECAL, DANGER

12

6702302

DECAL, DANGER

13

6711840

DECAL manual lift release

14

6713507

DECAL stay clear - Europe only

15

6717343

DECAL, DANGER

16

6730083

HANDBOOK, OPERATOR'S W/WIRE ROPE

16

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

16

6558310

SLEEVE wire rope

16

84G3112

BOLT 5

17

6734803

DECAL sound - 104 db - Europe only

18

6730212

DECAL

19

6730922

DECAL right joystick

20

6731336

DECAL Bobcat - black - lift arm

21

6731508

DECAL LH - Bobcat head - black - lift arm

21

6731507

DECAL RH - Bobcat head - black - lift arm

22

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

23

6729078

DECAL 2-speed - not in kit

24

6732696

DECAL, WARNING

25

6730210

DECAL, OPERATION all wheel steer

26

6732697

DECAL model number - A300

27

7177809

DECAL, ROC 1361 kg (3000 lbs) - A

28

SAFETY TREAD NLA - 6 in. x 22 in. (152 mm x 559 mm) - Order 7108222 - Was 6732911 - A

28

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

29

6735140

DECAL, THROTTLE

30

DECAL NLA - IR Logo - upright - Was 6735864 - A

31

6727913

DECAL high flow

32

6729077

DECAL air conditioned - not in kit
