Запчасти Bobcat A-Series OIL PAN (S/N 5264 & 5265) (V3300 DI T Kubota) (Tier II) POWER UNIT

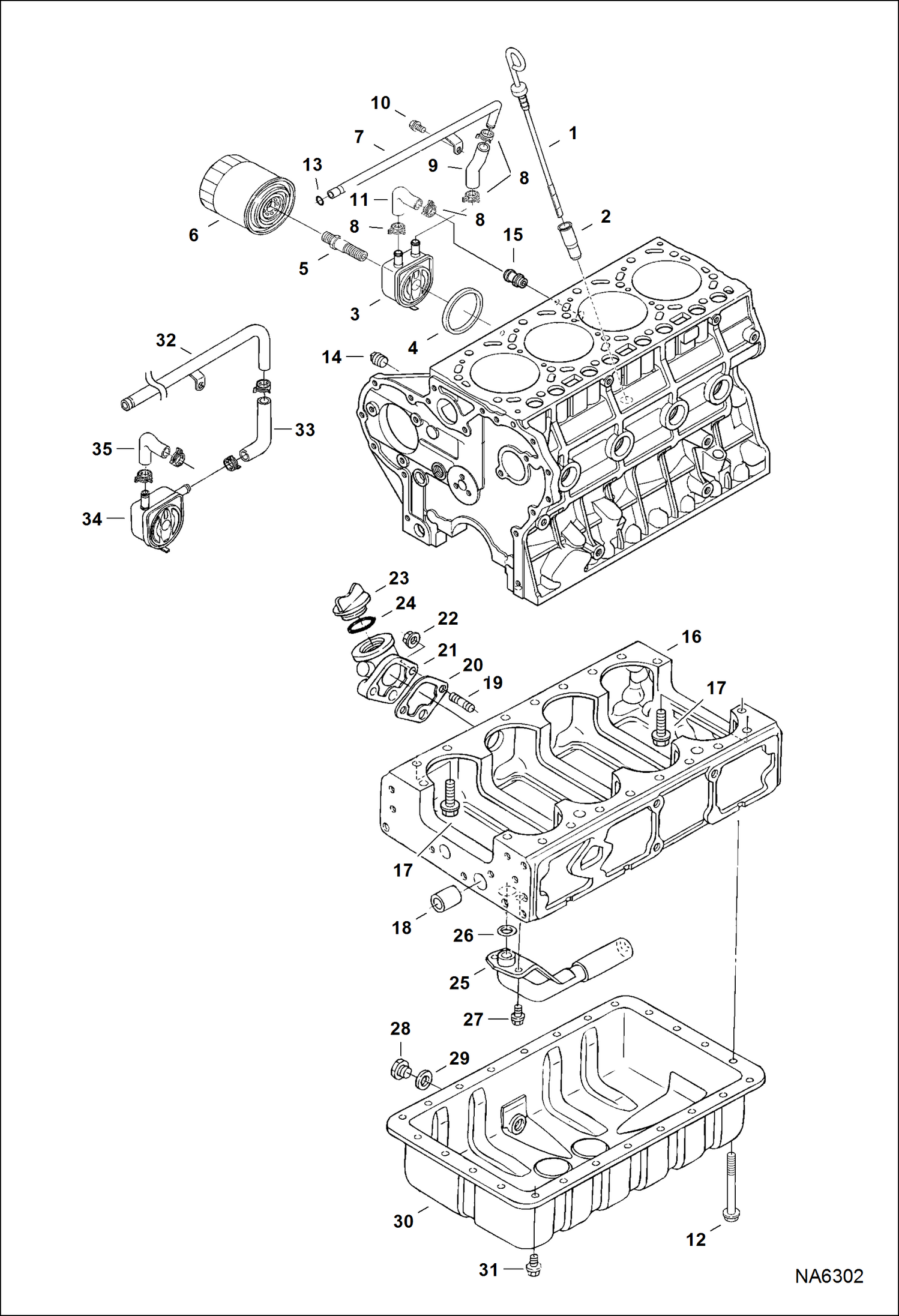

Схема запчастей Bobcat A-Series - OIL PAN (S/N 5264 & 5265) (V3300 DI T Kubota) (Tier II) POWER UNIT

Артикул

Название

Примечание

Количество

1

7020951

DIPSTICK, OIL ENG See Service Letter SL5161 NLA - Was 7020951 - A

2

6680702

TUBE

3

6698523

EXCHANGER, OIL COOLER

4

6686402

SEAL

5

7012202

ADAPTER Was 6680910 - A

6

6678233

FILTER, OIL ENG 12

7

6698558

PIPE, OIL

8

6675618

CLAMP

9

6698559

HOSE, RUBBER

10

6680662

BOLT

11

7020958

HOSE, HYD

12

6680659

BOLT

13

6685971

O-RING

14

16F2

PLUG Was 6698520 - A

15

6680646

ADAPTER

16

6698527

BLOCK, ENG. LOWER Was 6685921 - A

17

6680654

BOLT

18

7017199

PIN, STRAIGHT Was 6680655 - A

19

6652670

STUD

20

6685923

GASKET

21

6685922

FLANGE

22

6969819

NUT, FLANGE

23

6685924

CAP

24

6684782

O-RING

25

6680660

SCREEN, OIL

26

6680661

O-RING

27

6680662

BOLT

28

6680657

PLUG

29

6631046

SEAL

30

6680656

OIL PAN

31

6685925

BOLT

32

6685970

PIPE, OIL

33

6685972

HOSE

34

6680909

OIL COOLER

35

6685969

HOSE

Выбрано товаров: 35
