Запчасти Bobcat A-Series ENGINE MOUNTS POWER UNIT

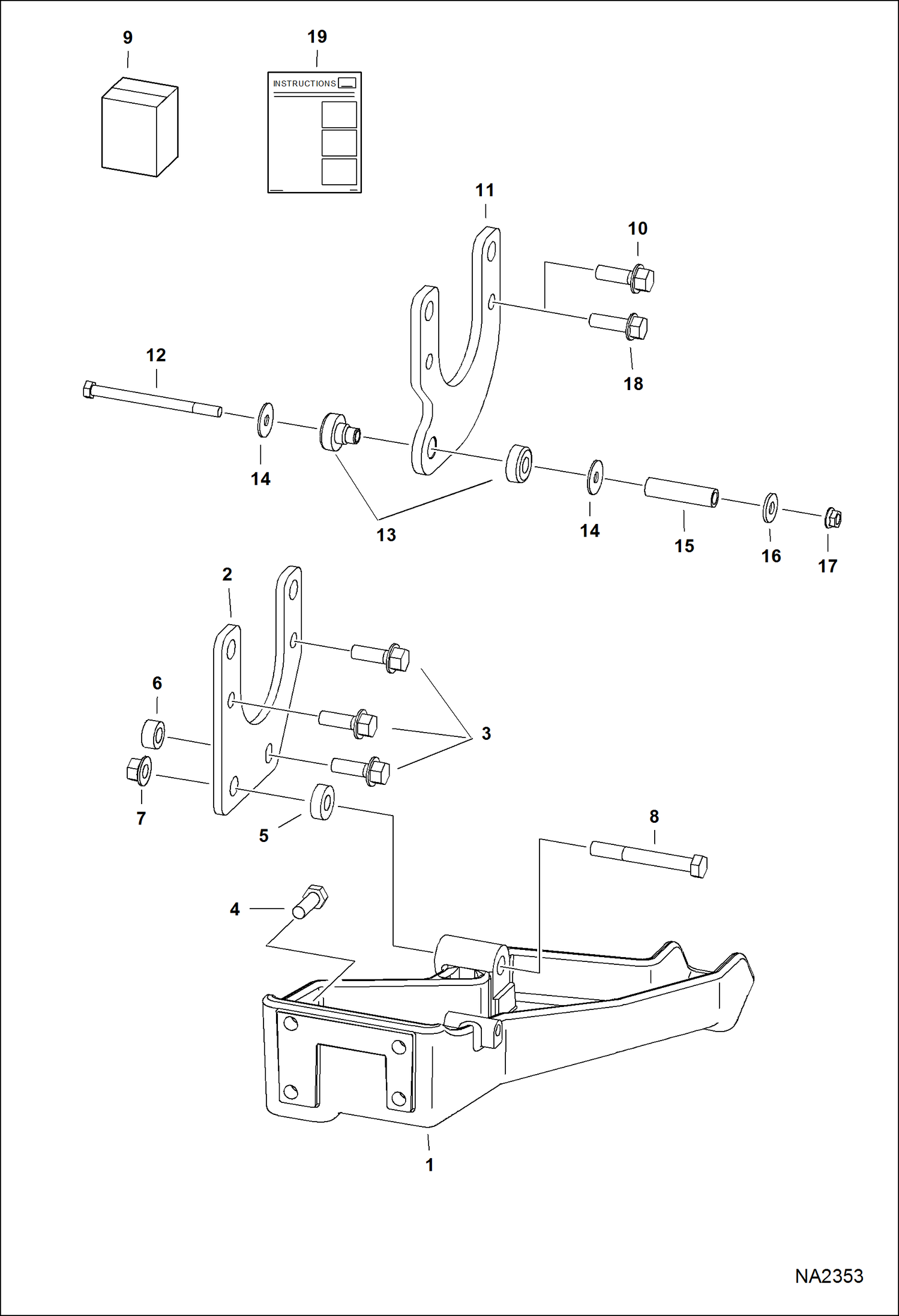

Схема запчастей Bobcat A-Series - ENGINE MOUNTS POWER UNIT

Артикул

Название

Примечание

Количество

1

7109792

MOUNT

2

7106240

SUPPORT

3

7131273

SCREW

4

6719829

BOLT

5

7106750

SPACER SJC - Was 7107572 - A

6

7105753

SPACER

7

83D10

NUT 5

8

17C1064

BOLT 5

9

7181229

KIT, MOUNT ISOLATED Ref. 10-19

10

45C824

BOLT Use W/Sauer-Danfoss pump

11

7147389

SUPPORT

12

43C680

BOLT

13

7149357

MOUNT, LOAD ISOLATOR neoprene rubber - identified W/purple and white dot

14

6737388

WASHER

15

7147350

SPACER, TUBE hard spacer

16

27E6

WASHER 5

17

53D6

NUT

18

7131273

SCREW Use W/Rexroth pump

19

6987496

INSTRUCTIONS

Выбрано товаров: 19
