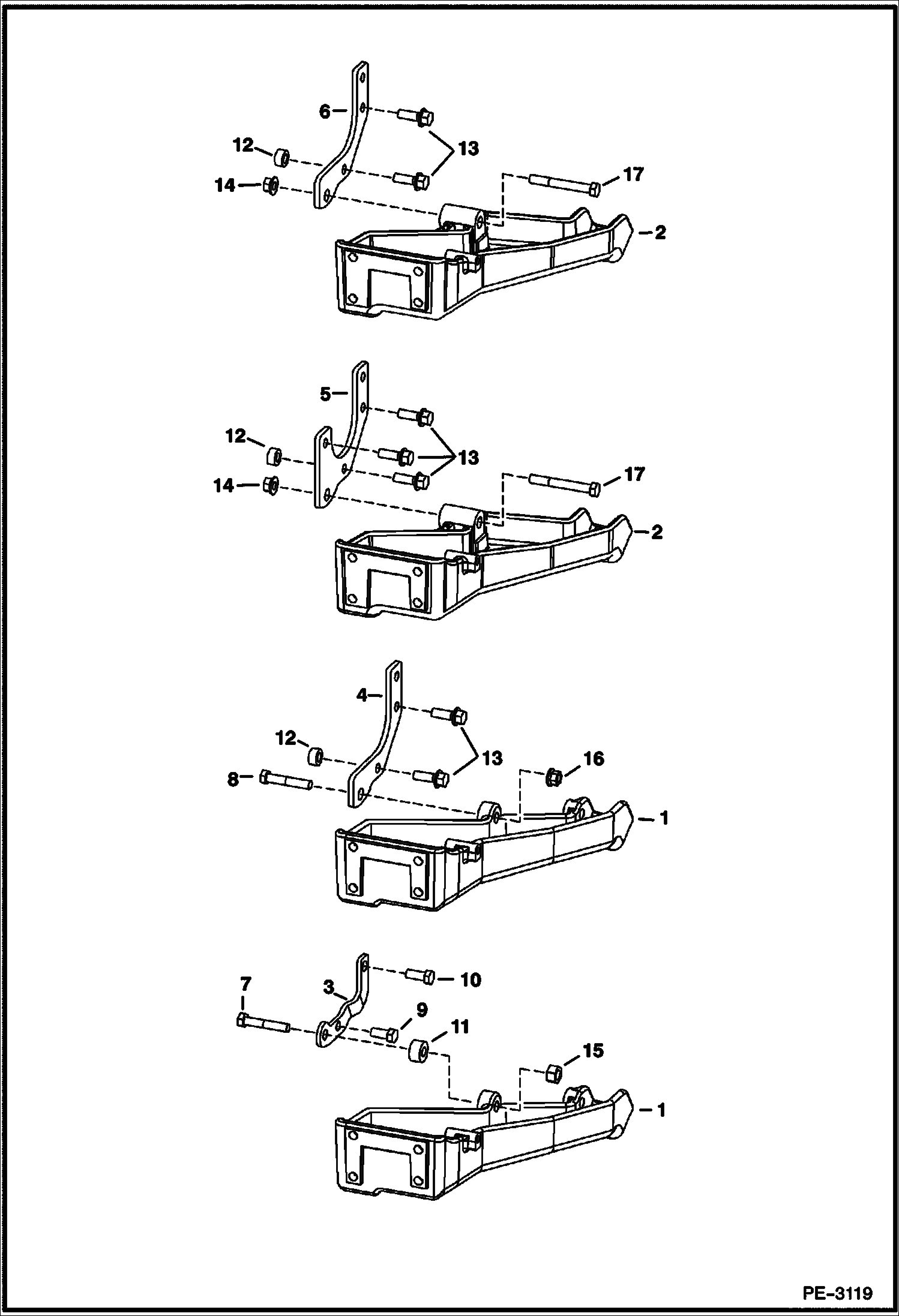

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

6729942

MOUNT

2

MOUNT See Illustration ENGINE MOUNTS/ NA2353

3

BRACKET NLA - Order Ref. 4, 8, 12 & 16 - Was 6735979 - A

4

7128608

SUPPORT Use W/Ref. 1

5

SUPPORT NLA - Order Ref. 6 - Was 7106239 - A

6

7128604

SUPPORT Use W/Ref. 2

7

6675221

BOLT

8

17C940

BOLT

9

17C816

BOLT

10

17C820

BOLT

11

6736349

SPACER

12

7105753

SPACER

13

17C824

BOLT 5 for Ref. 4 & 6

13

17C824

BOLT 5 for Ref. 5

14

53D10

NUT

15

83D8

NUT 5

16

83D9

NUT

17

17C1056

BOLT
