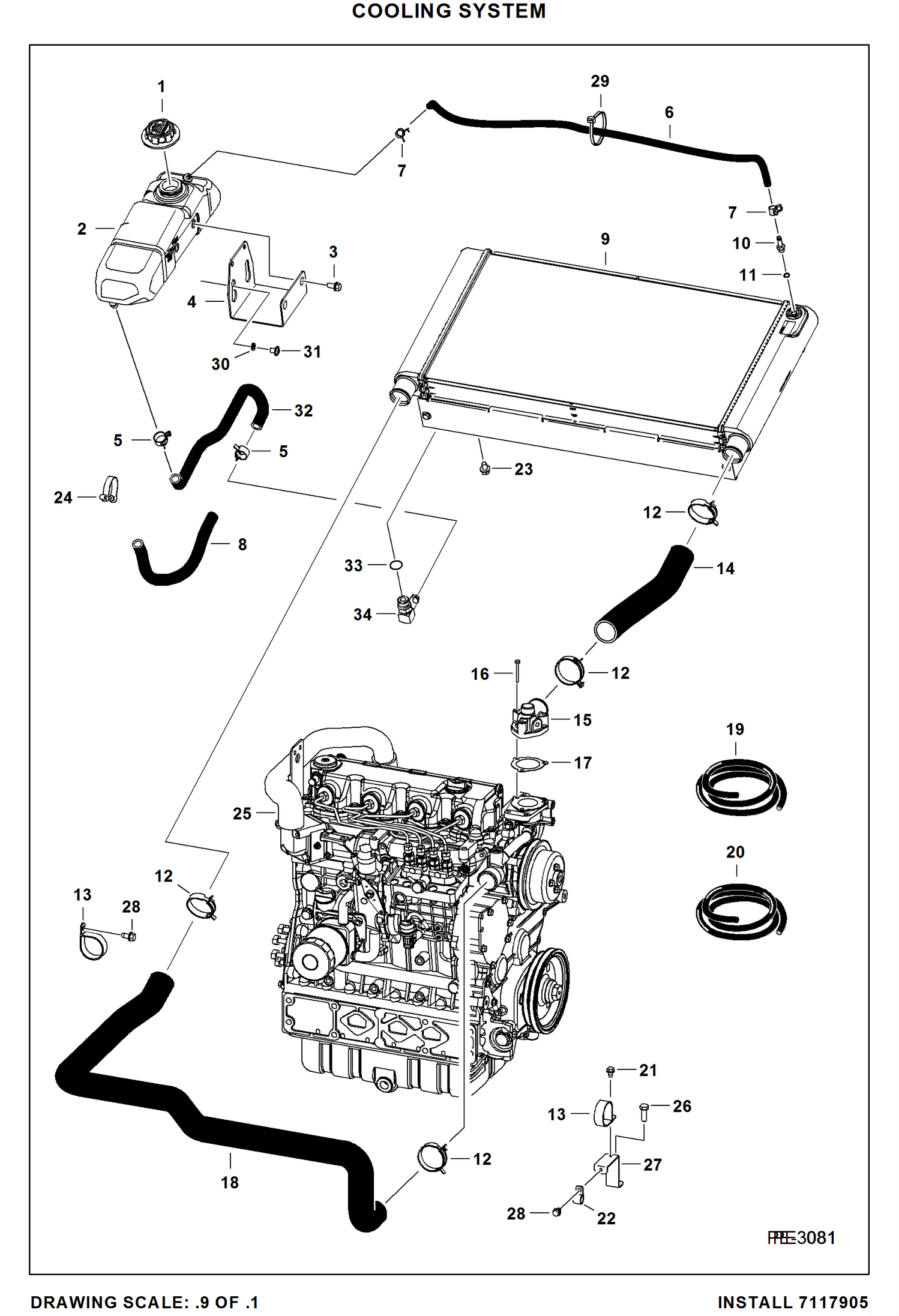

Запчасти Bobcat A-Series COOLING SYSTEM (S/N 526411062 & Above, 526511010 & Above) POWER UNIT

1

6733429

CAP

1

6733996

DECAL, WARNING engine coolant - 14 psi

2

6732375

TANK

3

6733886

BOLT Use W/Ref. 4 (NLA/ 6732870 mount)

4

MOUNT NLA - W/O mounting slots - Order 7162194 mount & (2) each of Ref. 30 & 31 - Was 6732870 - A

4

7162194

MOUNT, TANK COOLANT See BTI391 W/slotted mounting holes

5

5HM23

CLAMP

6

HOSE NLA - Order Ref. 19 - .25'' I.D. - 36'' (914mm) long

7

5HM14

CLAMP

8

HOSE NLA - Order Ref. 32 & orientate fitting on exchanger toward cab - Was 17.25'' (440 mm) of Ref. 20 - B

9

7173921

EXCHANGER, WATER RADIATOR Was 6684367 - A

10

6734090

ADAPTER W/ Ref. 11

11

79K4

O RING 10

12

5HM55

CLAMP

13

30H91

CLAMP

14

6728749

HOSE Was 6729310 - D

15

COVER See Illustration WATER PUMP & THERMOSTAT/ B17610 See Illustration WATER FLANGE & THERMOSTAT/ B22925 - thermostat

16

BOLT See Illustration WATER PUMP & THERMOSTAT/ B17610 See Illustration WATER FLANGE & THERMOSTAT/ B22925

17

GASKET See Illustration WATER PUMP & THERMOSTAT/ B17610 See Illustration WATER FLANGE & THERMOSTAT/ B22925

18

6736566

HOSE

19

6577822

HOSE bulk - sold per foot

20

6578172

HOSE bulk - sold per foot

21

84G3712

BOLT 5

22

30H34

CLAMP

23

35C516

BOLT 10

24

6513471

CLAMP

25

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B26841 See Illustration ENGINE & LOWER GASKET KIT/ B26842

26

6731198

BOLT

27

7112683

BRACKET

28

84G3116

SCREW Was 84G3108 - B

29

6610510

TIE

30

7162111

SPACER Use W/Ref. 4 (7162194 mount)

31

7161087

BOLT Use W/Ref. 4 (7162194 mount)

32

7159166

HOSE, WATER FORMED See BTI391 fitting on exchanger is orientated toward cab

33

7013200

ELBOW

34

79K10

O RING 10
