Запчасти Bobcat A-Series ENGINE ELECTRICAL CIRCUITRY (Engine) (S/N 5234, 5235) ELECTRICAL SYSTEM

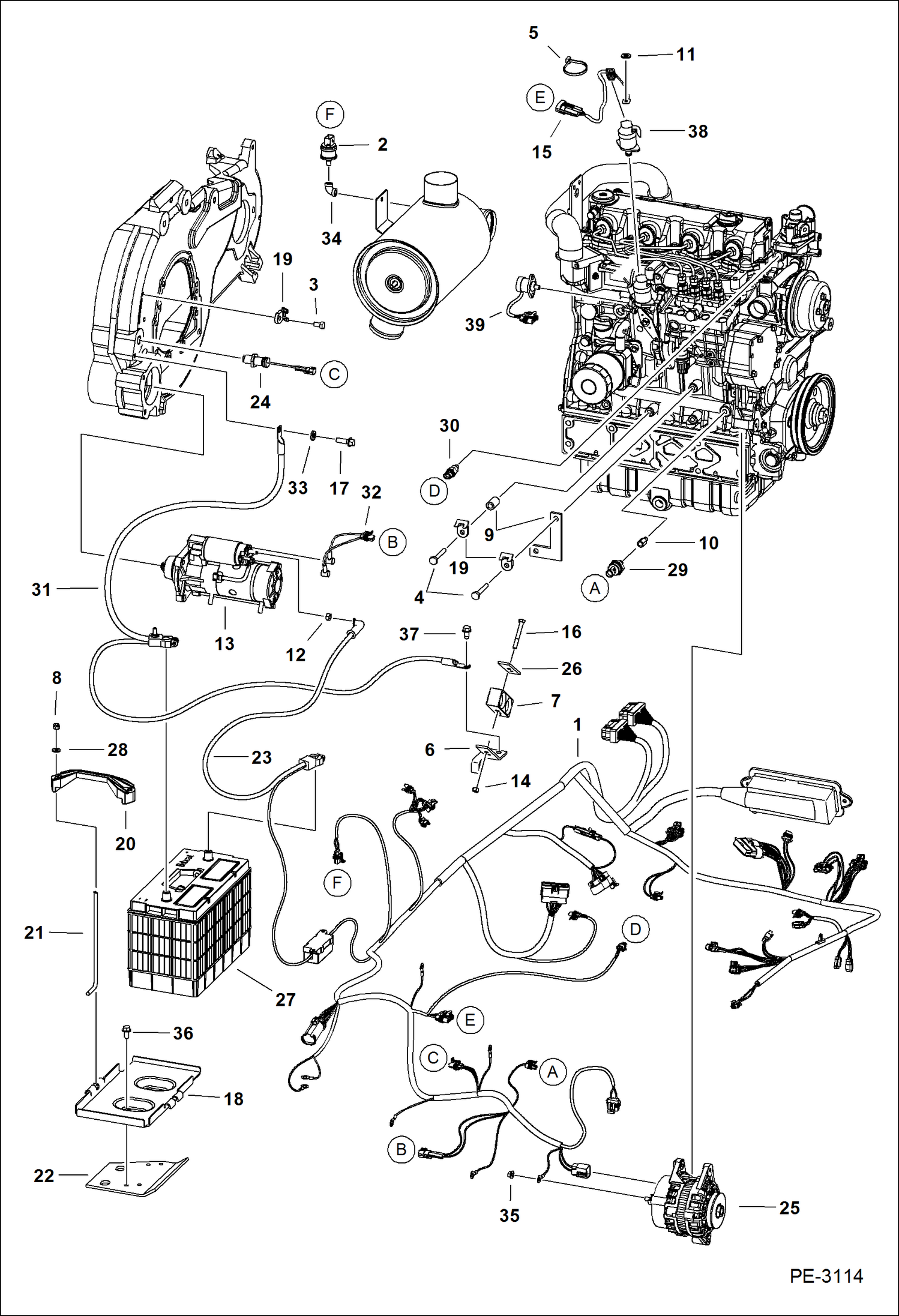

Схема запчастей Bobcat A-Series - ENGINE ELECTRICAL CIRCUITRY (Engine) (S/N 5234, 5235) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6730292

HARNESS, MFR main frame

2

6665371

SWITCH condition indicator

3

17C610

BOLT

4

7110310

SCREW Use W/Ref. 9 (7101893 Spacer) - Was 7101892 - A

4

84G3712

BOLT 5 Use W/Ref. 9 (6733869 bracket)

5

6624289

STRAP, TIE

6

6715131

BRACKET

7

6715197

CLAMP

8

59D5

NUT 5

9

6733869

BRACKET

9

7101893

SPACER

10

ELBOW NLA - Order 7102451 - Was 6707040 - A

10

7102451

FITTING straight

11

6E4

WASHER 10

12

4DM10

NUT starter

13

STARTER See Illustration STARTER/ B16488R

14

95D5

NUT

15

6736515

HARNESS fuel shutoff solenoid - Use W/Ref. 38 (NLA/ 6680749 solenoid)

16

17C540

BOLT

17

35C612

BOLT negative cable ground

18

6712536

PAN battery

19

6679034

MOUNT

20

6569203

CLAMP battery

21

6576280

BOLT battery hold down

22

6579989

BRACKET

23

6719141

CABLE POSITIVE 43'' (1092 mm) & 17'' (432 mm) long

24

6684037

SENSOR rpm

25

ALTERNATOR See Illustration ALTERNATOR/ C3529

26

6715132

RETAINER

27

6665427

BATTERY, DRY 950 AMP

28

25E15

WASHER

29

6674315

SENSOR eng oil pressure

30

6718414

SENDER, TEMP ENG

31

6727803

CABLE negative - 26.75'' (680mm) & 19'' (483mm) long

32

6733370

HARNESS

33

6E6

WASHER

34

24F1

ELBOW cable

35

43DM8

NUT

36

84G3712

BOLT 5

37

84G3716

SCREW 5

38

SOLENOID, SHUTOFF FUEL See Illustration GOVERNOR/ B17615 - NLA - 2-pin connector - Use W/Ref. 15 - Order 6689034 solenoid - Was 6680749 - A

39

6689034

SOLENOID, SHUTOFF FUEL See Illustration GOVERNOR/ B17615 - 3-pin connector - Ref. 15 not required
