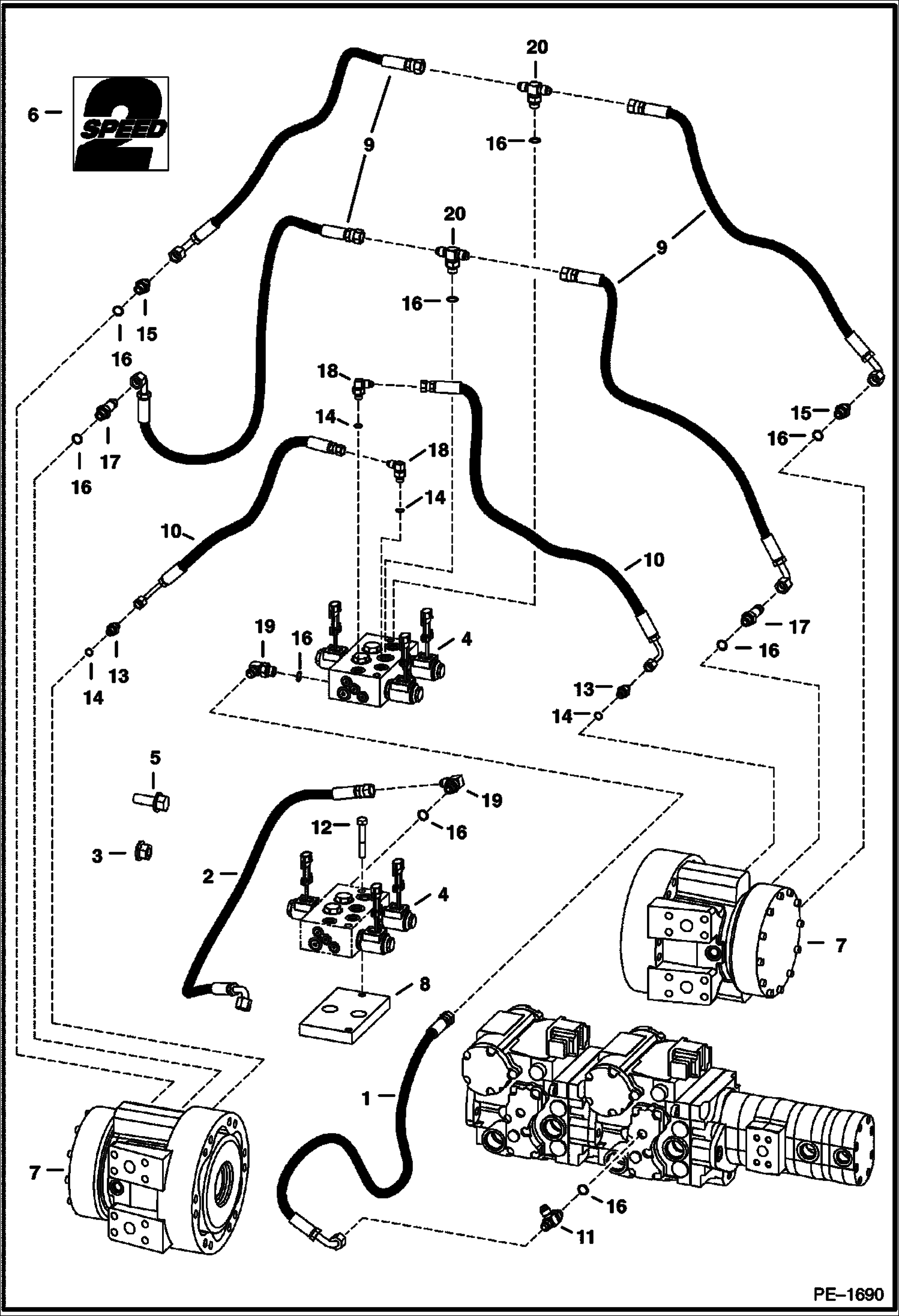

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (2-Speed Option) HYDROSTATIC SYSTEM

1

6579167

HOSE

2

6628613

HOSE

3

83D12

NUT

4

VALVE See Illustration 2-SPEED VALVE/ MS1385 2-speed

5

31C1228

BOLT

6

6729078

DECAL

7

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B16657

8

6729039

BLOCK 2-speed

9

6729590

HOSE

10

6729591

HOSE

11

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 16

12

43C640

BOLT

13

15KB0404

FTG HYD S Connector W/Ref. 14 - flat boss face

14

79K4

O RING 10

15

15KB0606

FITTING, HYD CONNECTOR W/Ref. 16

16

79K6

O RING 10

17

16KB0606

FTG HYD L CONNECTOR W/Ref. 16

18

17KB0404

FTG HYD ELBOW 90 W/Ref. 14

19

17KB0606

FITTING W/Ref. 16

20

19KB0606

TEE W/Ref. 16
