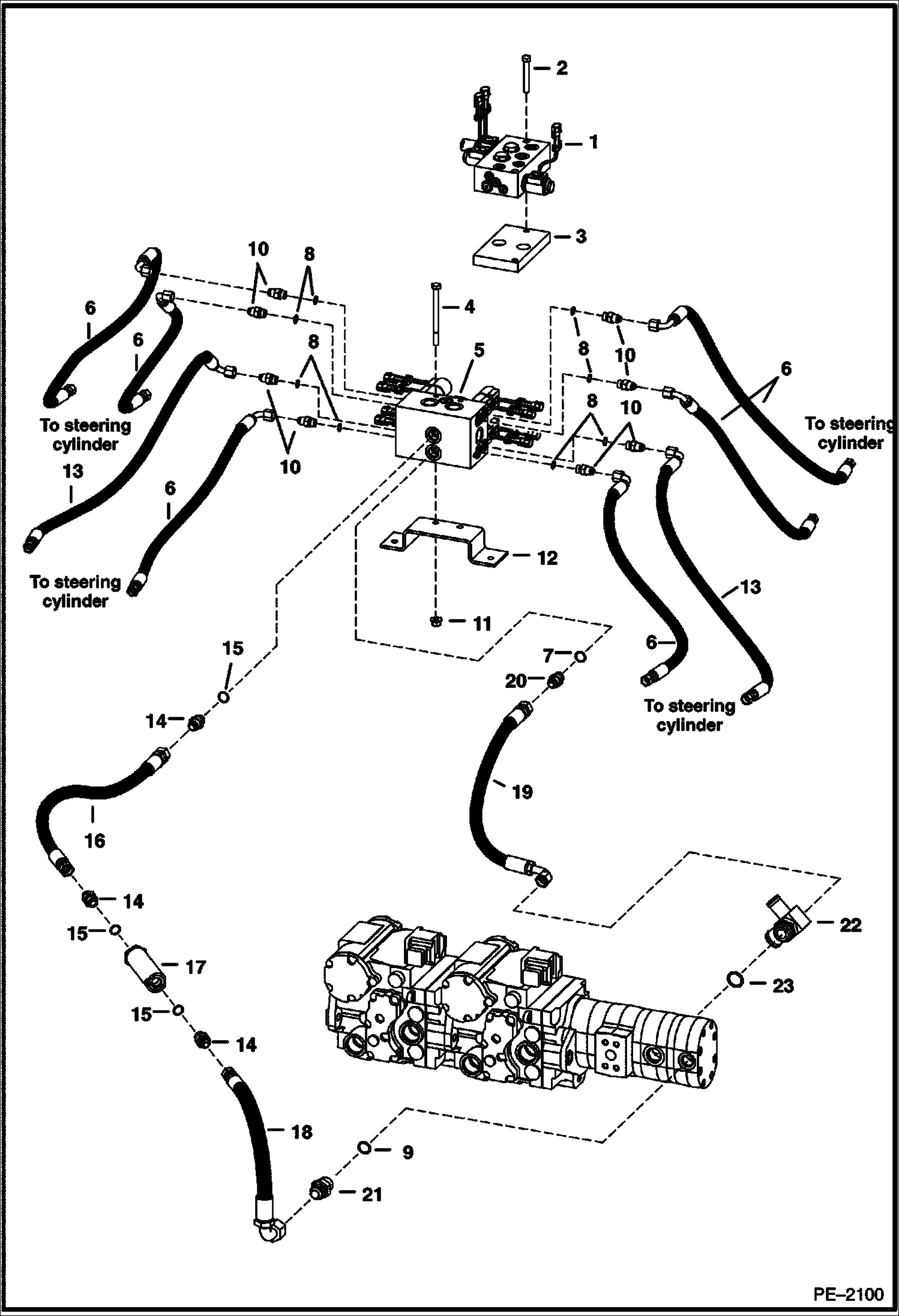

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (Steering Valve) HYDROSTATIC SYSTEM

1

VALVE See Illustration 2-SPEED VALVE/ MS1385 2-speed

2

43C640

BOLT

3

6729039

BLOCK 2-speed

4

17C672

BOLT

5

VALVE See Illustration STEERING VALVE/ MS1174 steering

6

6736693

HOSE

7

79K10

O RING 10

8

79K6

O RING 10

9

79K12

O RING 10

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 8

11

83D6

NUT 5

12

6729017

MOUNT

13

6736907

HOSE

14

15KB0808

FITTING, HYD CONNECTOR W/Ref. 15

15

79K8

O RING 10

16

6727921

HOSE

17

6679143

FILTER, VALVE STEERING IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B22136 in-line - steering

18

6729754

HOSE

19

6809326

HOSE

20

18KB1010

FITTING, HYD ELBOW W/Ref. 7

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 9

22

6731181

TEE W/Ref. 23

23

79K16

O RING 10
