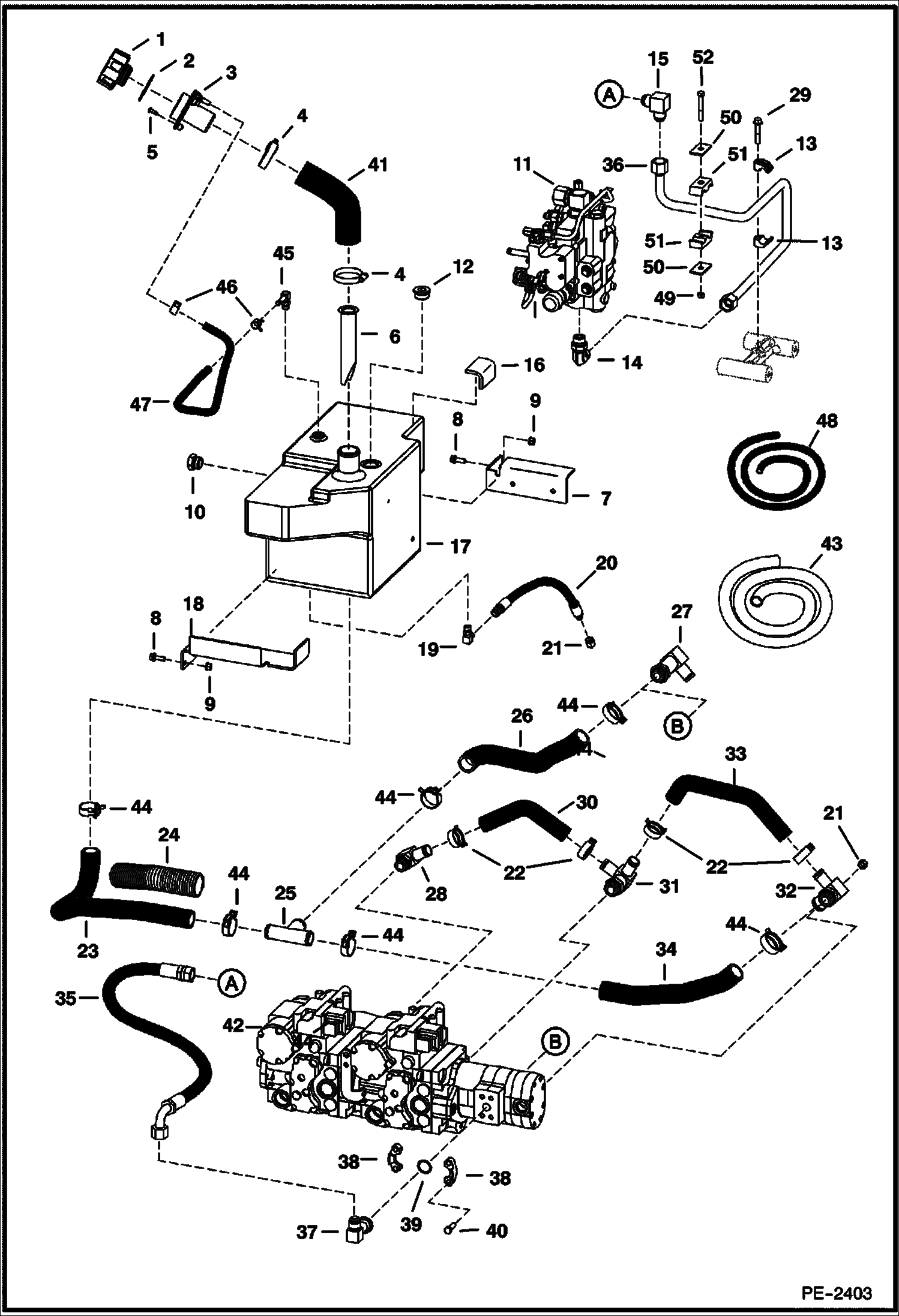

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Tank) (S/N 526412000, 526512000 & Above) HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD breather & fill - also Order Ref. 2

2

6700631

GASKET

3

6727354

INLET

4

42HL250

CLAMP

5

6706517

SCREW self tapping

6

7120881

SCREEN, FILLER Was 6569219 - A

7

6718851

BRACKET front

8

35C516

BOLT 10

9

83D5

NUT 5

10

6665915

GAUGE sight

10

6734563

WASHER KIT

10

6734561

WASHER

10

25K30118

O RING 10

10

79K6

O RING 10

11

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

12

47K10

PLUG

12

79K16

O RING 10

13

7100462

CLAMP

14

7101797

ELBOW

14

79K12

O RING 10

15

77F8

ELBOW

16

6578278

PAD

17

6731209

TANK hydraulic oil

18

6718850

BRACKET rear

19

17KB0606

FITTING

19

79K6

O RING 10

20

7106212

HOSE

21

36K5

CAP

22

5HM35

HOSECLAMP

23

6732502

HOSE

24

SHIELD NLA - 10'' (254mm) long - Order Ref. 43

25

6817459

FITTING

26

6727426

HOSE

27

6731181

TEE

28

6727182

ELBOW

28

75K16

O RING 10

29

35C632

BOLT

30

6729478

HOSE

31

6726992

TEE

31

79K16

O RING 10

32

6733809

TEE

32

79K16

O RING 10

33

6729477

HOSE

34

6729476

HOSE

35

6736649

HOSE, HYD ASSY 33.50'' (850.9 mm) long

35

7113772

HOSE 29.50'' (749.3 mm) long

36

6736656

TUBELINE

37

7106040

ELBOW 4-bolt flange - A

38

19J12

CLAMP

39

55K214

O-RING

40

17C620

BOLT

41

6731638

HOSE

42

PUMP hydrostatic

43

6705749

SHIELD bulk - sold per foot

44

5HM42

HOSECLAMP

45

6727313

ELBOW

45

79K6

O RING 10

46

5HM15

CLAMP

47

HOSE NLA - 23'' (584mm) long - Order Ref. 48

48

6586251

HOSE bulk - sold per foot

49

59D6

NUT Was 85D6 - A

50

872229

WASHER

50

6592507

PLATE rect.

51

6592506

CLAMP

52

17C640

BOLT 5 Use W/Ref. 50 (872229B washer)

52

17C644

BOLT Use W/Ref. 50 (6592507 rect. plate)
