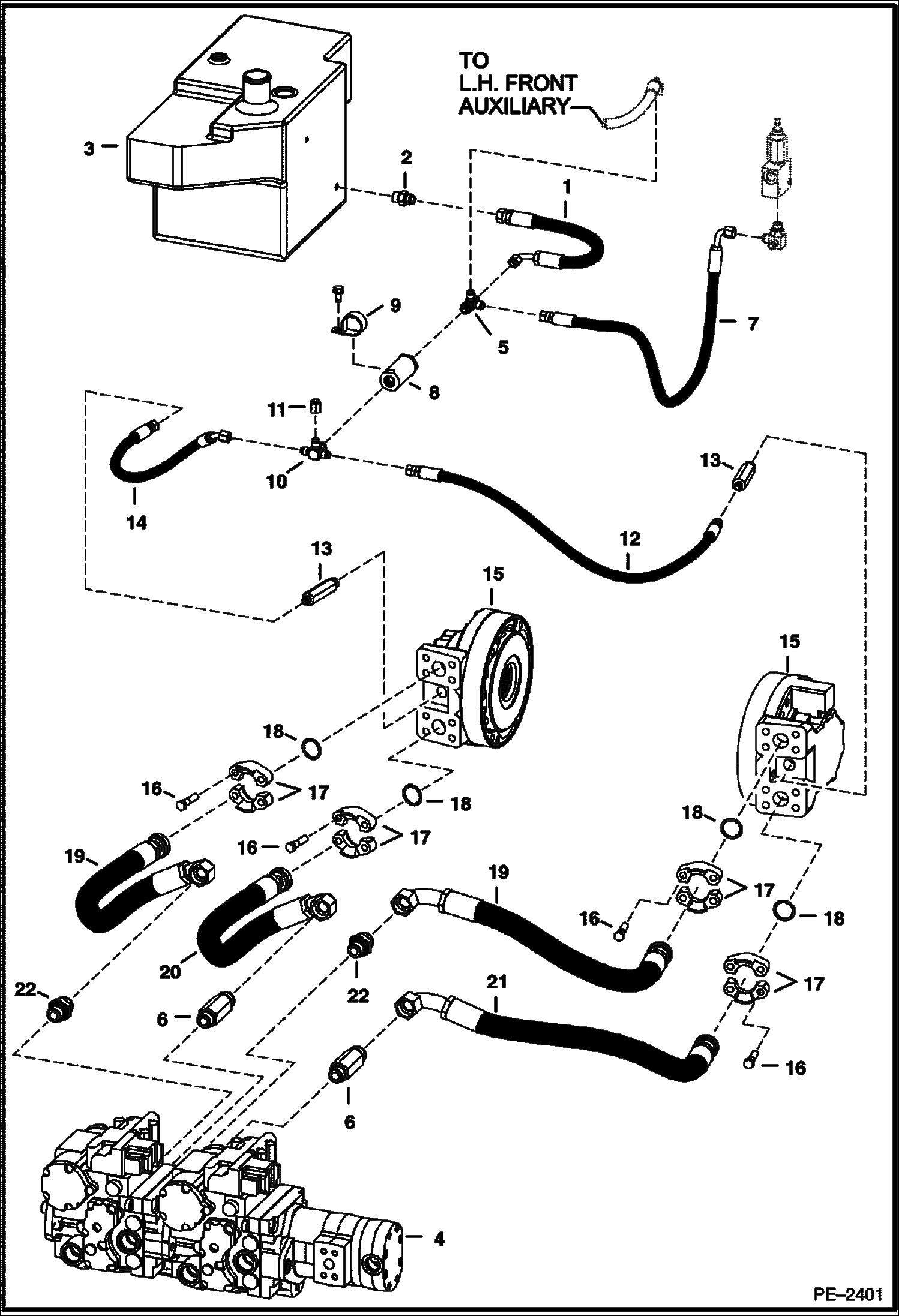

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Motors) (S/N 526412000, 526512000 & Above) HYDROSTATIC SYSTEM

1

6733219

HOSE

2

15KB0808

FITTING, HYD CONNECTOR

2

79K8

O RING 10

3

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE2070 hydraulic

4

PUMP See Illustration HYDROSTATIC PUMP/ B26304 hydrostatic

5

6718031

TEE

5

79K6

O RING 10

6

6716243

ADAPTER

6

79K12

O RING 10

7

6732483

HOSE

8

6661022

FILTER, OIL HYD IN-LINE

9

30H79

CLAMP

10

6725497

CROSS

10

79K6

O RING 10

11

36K5

CAP

12

7126010

HOSE Was 6732485 - A

13

6717306

ADAPTER

13

79K8

O RING 10

14

6732484

HOSE

15

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B16657 drive

16

17C728

BOLT

17

20J16

FLANGE

18

55K219

O'RING

19

6679140

HOSE

20

6679139

HOSE

21

6679138

HOSE

22

15KB1612

FITTING, HYD CONNECTOR

22

79K12

O RING 10
