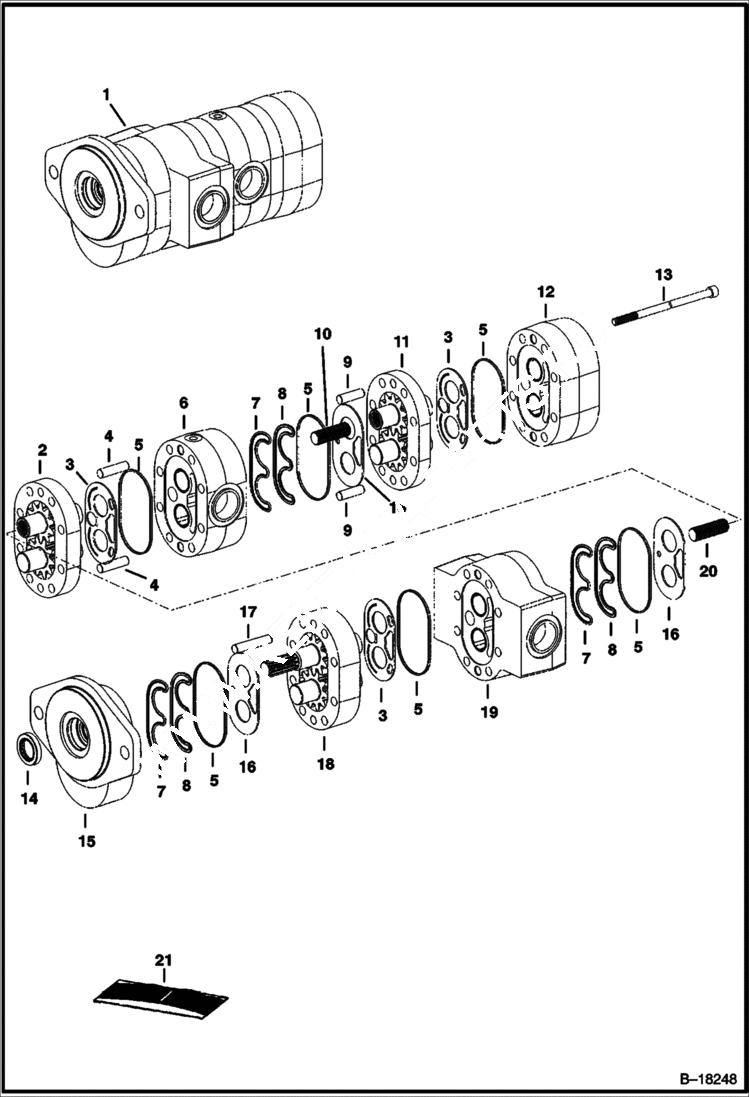

Запчасти Bobcat A-Series * HIGH FLOW HYDRAULICS (Gear Pump) HIGH FLOW HYDRAULICS

1

PUMP NLA - model 163D1303 - Order 6686710 - Was 6681599 - A

1

6686710

GEAR PUMP model 163D1480

1

GEAR PUMP model 163D1431 - 40 GPM - Order 6688672 - Was 6685844 - A

1

6688672

PUMP, GEAR TRIPLE model 163D72015 - 37 GPM

2

SECTION NSS

3

WEAR PLATE NSS

4

PIN NSS

5

SEAL NSS

6

BODY NSS

7

SEAL, BACKUP NSS

8

SEAL, LOAD NSS

9

PIN NSS

10

SHAFT NSS

11

SECTION NSS

12

BODY NSS

13

BOLT NSS

14

SEAL, SHAFT NSS

15

COVER NSS

16

WEAR PLATE NSS

17

PIN NSS

18

SECTION NSS

19

BODY NSS

20

SHAFT NSS

21

6688326

KIT, SEAL Ref. 3, 5, 7, 8, 14 & 16 - Was 6678731 - A

21

6688321

SEAL KIT Ref. 3, 5, 7, 8, 14 & 16 - for model 163D1431
