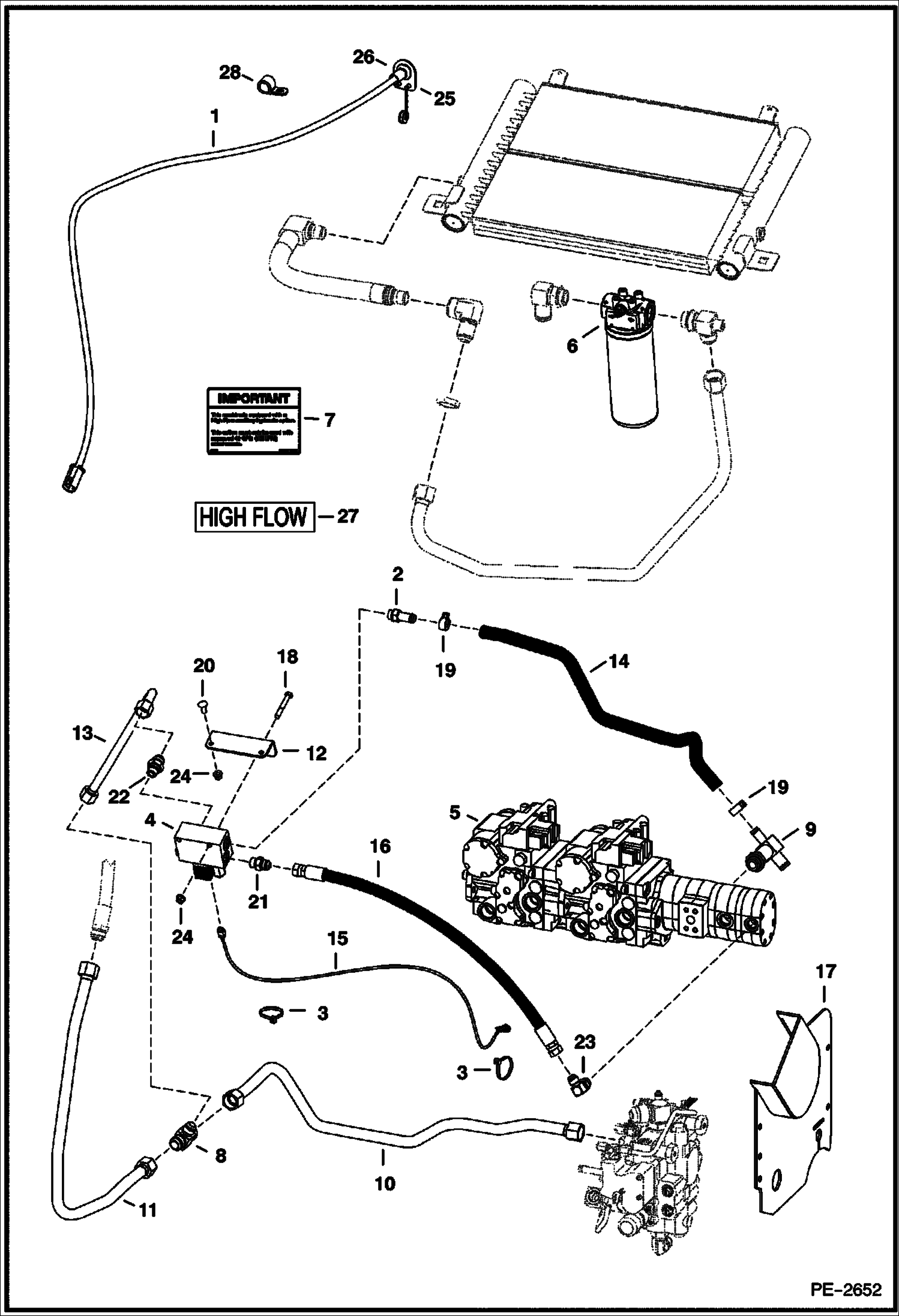

Запчасти Bobcat A-Series HIGH FLOW HYDRAULICS (40 GPM) (S/N 526412200, 526512100 & Above) HIGH FLOW HYDRAULICS

1

6718426

HARNESS, LIFT ARM attachment control

2

1316263

ADAPTER

2

79K10

O RING 10

3

6624289

STRAP, TIE

4

VALVE See Illustration HIGH FLOW HYDRAULICS/ B22497 40/37 G.P.M.

5

PUMP See Illustration HYDROSTATIC PUMP/ B26305 See Illustration HYDROSTATIC PUMP/ B26304

6

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

7

6727913

DECAL high flow

8

6730143

TEE

9

6731182

TEE

9

79K16

O RING 10

10

6732993

TUBELINE

11

6733309

TUBELINE

12

6736501

MOUNT

13

7113417

TUBELINE Was 6736502

14

6736503

HOSE

15

6736767

HARNESS high flow

16

7101566

HOSE

17

7135766

COVER R.H. - Was 7111740 - A

18

17C644

BOLT

19

5HM24

CLAMP

20

10C616

BOLT 10

21

15KB1010

FITTING, HYD CONNECTOR

22

15KB1210

FITTING, HYD CONNECTOR

23

17KB1010

FITTING, HYD ELBOW

24

83D6

NUT 5

25

84G3112

BOLT 5

26

30H35

CLAMP 10

27

7113512

DECAL approved attachments only

28

30H35

CLAMP 10
