Запчасти Bobcat A-Series HYDRAULIC CONTROL VALVE (Service Valve) (S/N 526412000, 526512000 & Above) HYDRAULIC SYSTEM

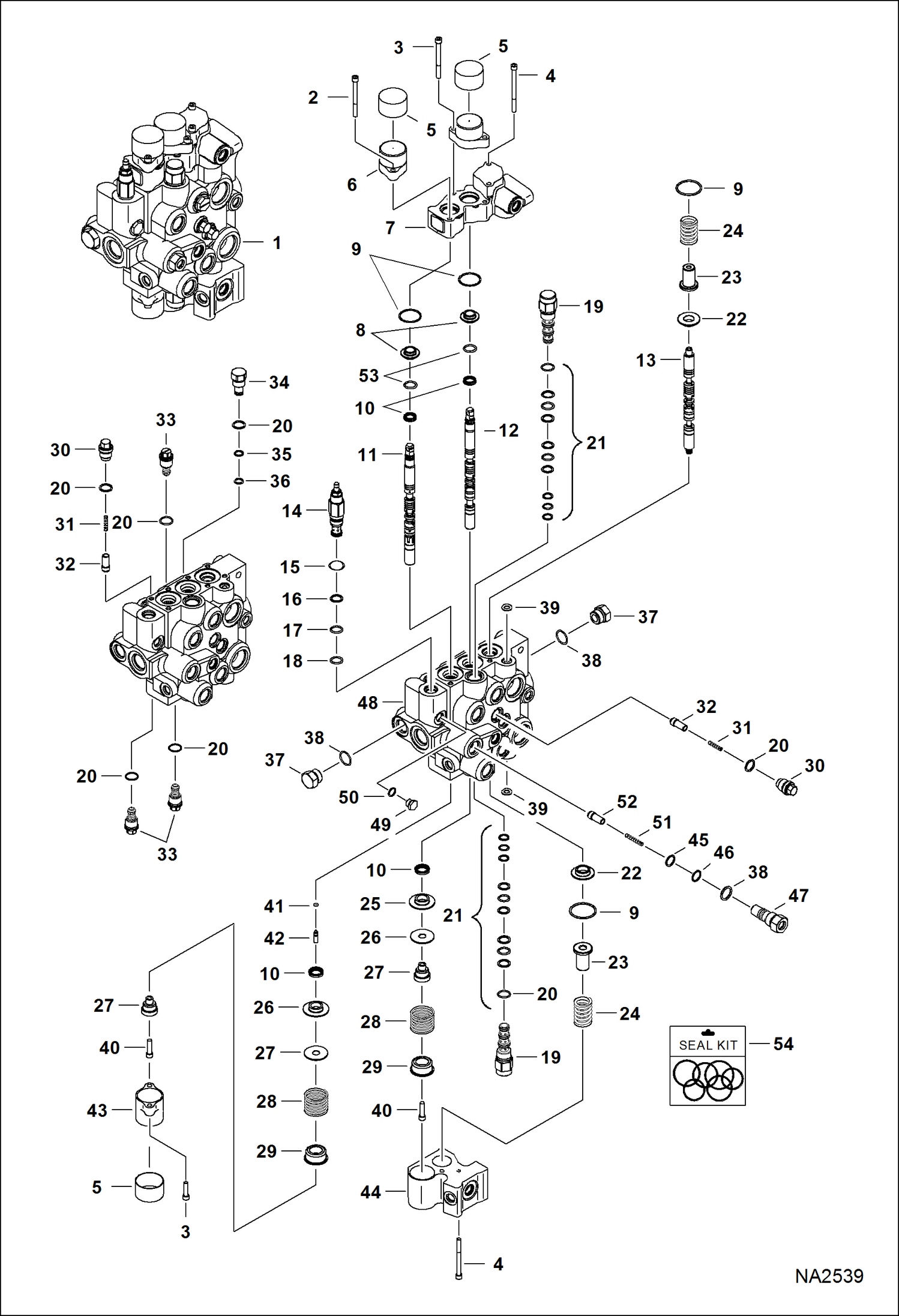

Схема запчастей Bobcat A-Series - HYDRAULIC CONTROL VALVE (Service Valve) (S/N 526412000, 526512000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7184230

VALVE, CONTROL SERVICE

2

69G436

BOLT

3

29G416

BOLT

4

29G444

BOLT

5

6662848

CAP

6

7101345

BONNET, DETENT HYD VALVE

7

6817004

BODY

8

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

9

1K127

O-RING 10

10

6683274

SEAL, SPOOL 10

11

7209459

SPOOL, LIFT Was 7108241 - C

12

7108242

SPOOL, TILT

13

7112383

AUX SPOOL

14

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

15

58K017

O-RING 10

16

6665569

WASHER back-up

17

25K20016

O RING 10

18

6665570

RING guide

19

6689739

VALVE pilot operated - W/Ref. 21

20

79K8

O RING 10

21

6690431

KIT, SEAL W/Ref. 20

22

7138376

BUSHING

23

6814694

RETAINER

24

7121399

SPRING

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6592109

ADAPTER

28

6587580

SPRING

29

6592100

COLLAR

30

7134520

PLUG check valve - W/Ref. 20

31

7166339

SPRING, LOAD CHECK

32

7166047

SEAT, CHECK VALVE

33

6684645

VALVE, ANTI CAV anti-cav - 3500psi - W/Ref. 20

34

6816549

PLUG ASSY PORT RLF W/Ref. 20, 35 & 36

35

58K013

O-RING

36

73K013

RING, BACK-UP

37

24K7

PLUG W/Ref. 38

38

79K10

O RING 10

39

55K204

O RING 10

40

7102652

SCREW

41

58K4

O-RING

42

6801167

PLUG plastic - 0.69'' long

43

6803092

BONNET

44

6814279

BLOCK

45

73K016

RING, BACK-UP

46

58K016

O-RING 10

47

7134522

PLUG W/Ref. 38, 45 & 46

48

BODY NSS

49

6812171

PLUG W/Ref. 50

50

75K6

O-RING

51

7166047

SEAT, CHECK VALVE

52

7166339

SPRING, LOAD CHECK

53

82K019

O-RING alignment

54

7123964

KIT, SEAL COMPLETE includes 7123963, 7123965, 6632279, 6669732 & (2) each of 6685603 & 6690431

54

7123963

SEAL KIT, EXTERNAL FITTING 3 spool - Ref. 9, 10, 39, 41 & 42

54

7123965

KIT, SEAL external fitting

54

6685603

KIT, SEAL solenoid valve

54

6632279

KIT, SEAL main relief - Ref. 15-18

54

6669732

KIT, SEAL solenoid valve

54

6690431

KIT, SEAL pilot valve - Ref. 21

Выбрано товаров: 60
