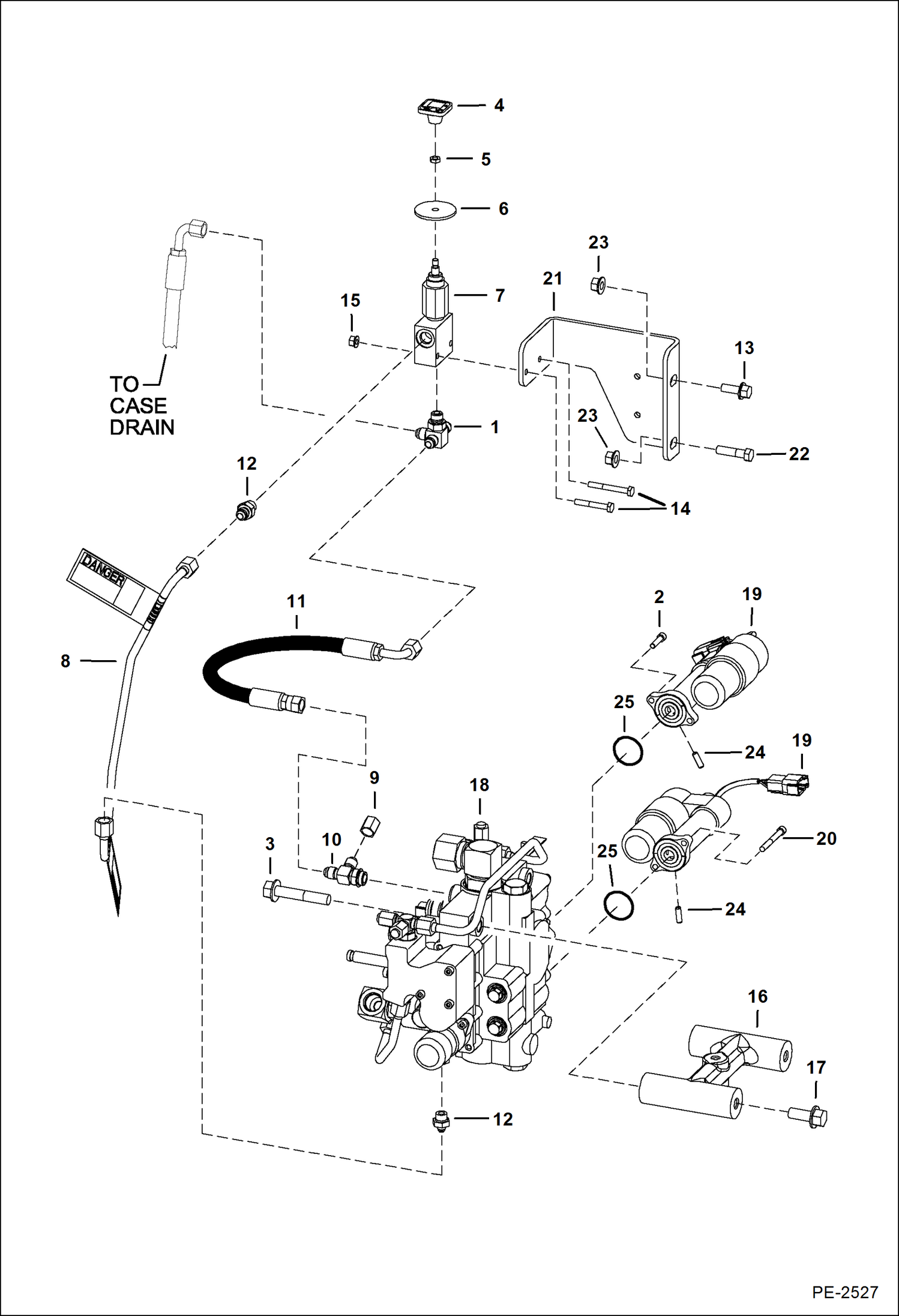

Запчасти Bobcat A-Series LIFT & TILT CONTROL CIRCUITRY (One Piece Valve) (S/N 526412000, 526512000 & Above) HYDRAULIC SYSTEM

1

6725182

TEE

1

79K6

O RING 10

2

29G416

BOLT

3

17C844

BOLT

4

6737524

KNOB

5

7D4

NUT

6

6707101

SEAL neoprene

7

7230495

VALVE, LIFT MANUAL manual lift - Was 6667844 - A

8

HOSE NLA - Order 7148997 tube line - Was 7103172

8

7148997

TUBELINE, HYD available only as an assembly W/two danger decals installed - Was 7103172 - A

8

6809511

DECAL, DANGER

9

36K5

CAP

10

21KB0606

FTG HYD STRAIGHT TEE

10

79K6

O RING 10

11

7110284

HOSE

12

15KB0406

FTG HYD S CONNECTOR Use W/Ref. 8 (NLA hose)

12

79K6

O RING 10

12

15KB0606

FITTING, HYD CONNECTOR Use W/Ref. 8

12

79K6

O RING 10

13

35C616

BOLT 5

14

17C428

BOLT

15

83D4

NUT 10

16

7109934

MOUNT, VALVE

17

31C820

BOLT

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 control

19

7101672

ACTUATOR W/Ref. 25

20

69G436

BOLT

21

6718881

BRACKET

22

17C624

BOLT 5

23

83D6

NUT 5

24

7108236

PIN

25

58K120

O-RING Use W/Ref. 19
