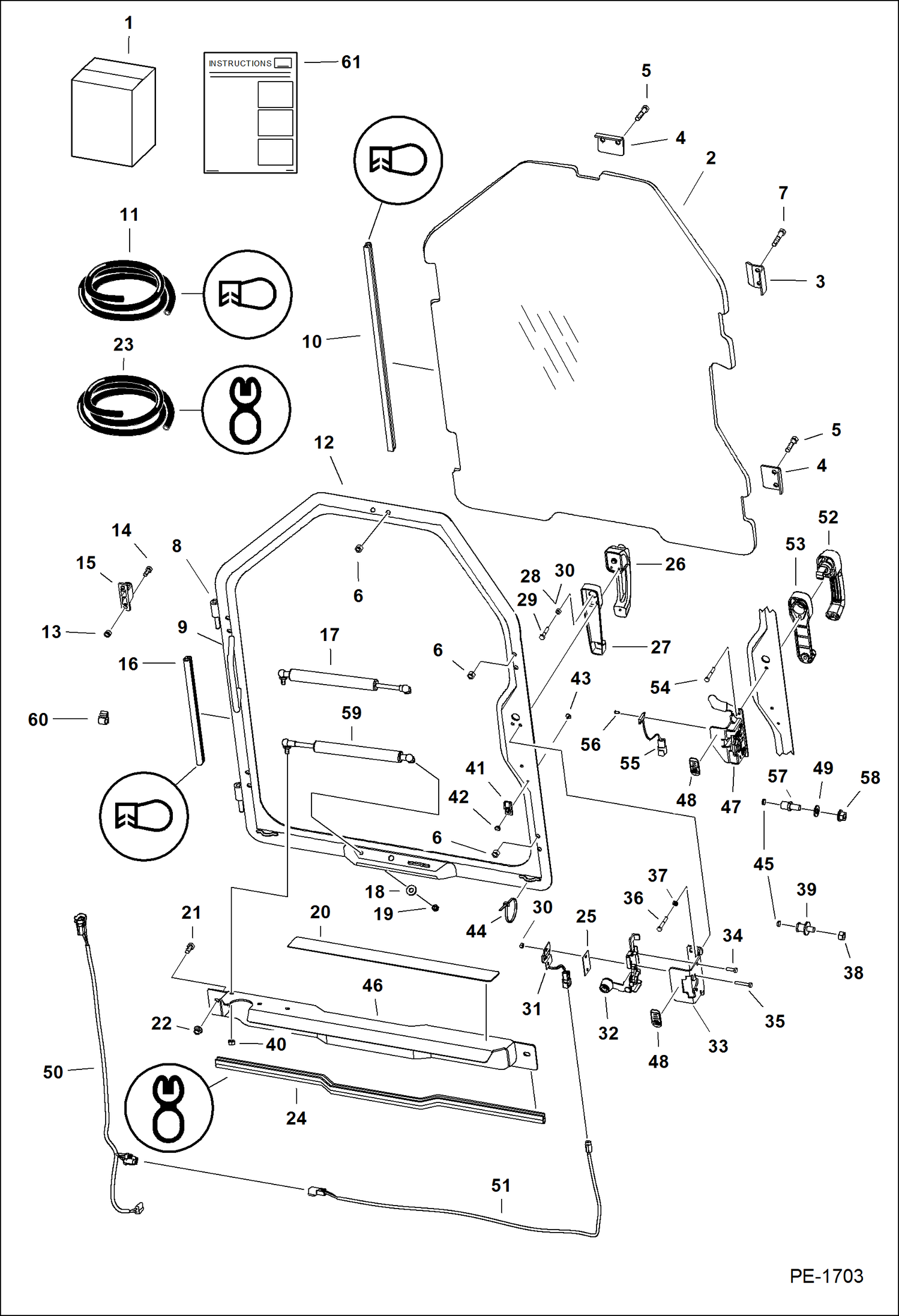

Запчасти Bobcat A-Series CAB DOOR (Special Applications) ACCESSORIES & OPTIONS

1

6730823

KIT door - Ref. 2-24 & 40-59 - wiper is not included because it may scratch special applications window

2

6732351

WINDOW 0.5'' thick polycarbonate - W/top notch

3

6725938

CLAMP

4

6725937

CLAMP

5

17C628

BOLT

6

95D6

NUT

7

17C624

BOLT 5

8

6718376

HINGE door

9

7138347

HANDLE grab - Was 6718521 - B

10

SEAL NLA - 115'' (2921 mm) long - Order Ref. 11

11

7011039

SEAL, BULK/FT 34 sold per foot - Was 6675558 - A

12

DOOR See BTI369 - NLA - W/Ref. 8 & 9 - Was 6726932 - A

12

7110430

SPECIAL APPS DOOR Uses 2 bolt mount handle - W/Ref. 8 & 9

13

59D5

NUT 5

14

17C512

BOLT 5

15

6717593

HINGE base

16

SEAL NLA - 127.3'' (3233,4 mm) long - Order Ref. 11

17

GAS SPRING NLA - Order Ref. 59 - Was 6682586 - A

17

6678548

SOCKET ball

17

6649244

BALL STUD

17

6649245

RETAINER spring

18

25E16

WSHR

19

46D5

NUT acorn

20

6542731

SAFETY TREAD

21

55D6

NUT

22

17C612

BOLT 5

23

6513152

SEAL bulk - sold per foot

24

SEAL NLA - 36'' (914,4 mm) long - Order Ref 23

25

6718520

COVER latch

26

HANDLE See BTI370 - NLA - 3 bolt mount - Was 6674667 - A

26

KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241 key - Was 6709527 - A

26

6693241

KEY 10 ignition - single key W/O ring

27

SPACER See BTI370 - NLA - 3 bolt mount - Was 6717146 - A

28

61D4

NUT 5

29

17C420

BOLT For 3 bolt mount handle

29

1CM630

BOLT For 3 bolt mount handle

30

1DM6

NUT For 2 bolt mount handle - Was 4DM6 - A

30

1DM6

NUT For 2 bolt mount handle - Was 4DM6 - A

31

6731212

SENSOR For Ref. 32

32

LATCH See BTI370 - NLA - 3 bolt mount - Was 6674666 - A

33

6717369

BRACKET latch

34

1CM620

BOLT For 3 bolt mount handle

35

1CM635

BOLT For 3 bolt mount handle

36

1CM640

SCREW For 3 bolt mount handle

37

6EM60

WASHER, SPRING

38

91D7

NUT 7/16'' thread - Use W/Ref. 39

39

6654170

STRIKER BOLT 7/16'' thread - W/O sensor

39

BOLT NLA - 7/16'' thread - for door W/sensor - Order Ref.'s 49, 57 & 58 - Was 6677194 - A

40

61D5

NUT

41

6665000

CLIP

42

6665321

RIVET male - plastic

43

6665322

RIVET female - plastic

44

6624289

STRAP, TIE Use W/doors W/welded-on retainers

45

6677192

SENSOR, MAGNETIC

46

6730816

SHIELD

47

7109661

LATCH, DOOR W/SENSOR 2 bolt mount - W/Ref. 55

48

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

49

18EM1224

WASHER Use W/Ref. 57

50

HARNESS NLA - Order 7104465 harness & 7106277 harness - Was 6730885 - A

50

7106277

WIPER HARNESS wiper

51

7104465

DOOR SWITCH HARNESS door sensor

52

7109662

HANDLE, LATCH DOOR 2 bolt mount

53

7109663

SPACER 2 bolt mount

54

1CM640

SCREW For 2 bolt mount handle

55

6728459

SENSOR, DOOR Use W/Ref. 47 - Also Order (2) of Ref. 56

56

6677193

RIVET plastic

57

7109664

BOLT 12 mm thread

58

51DM12

NUT 12 mm thread - Use W/Ref. 57

59

7157893

GAS SPRING

60

6675378

CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers

61

6901013

INSTRUCTIONS
