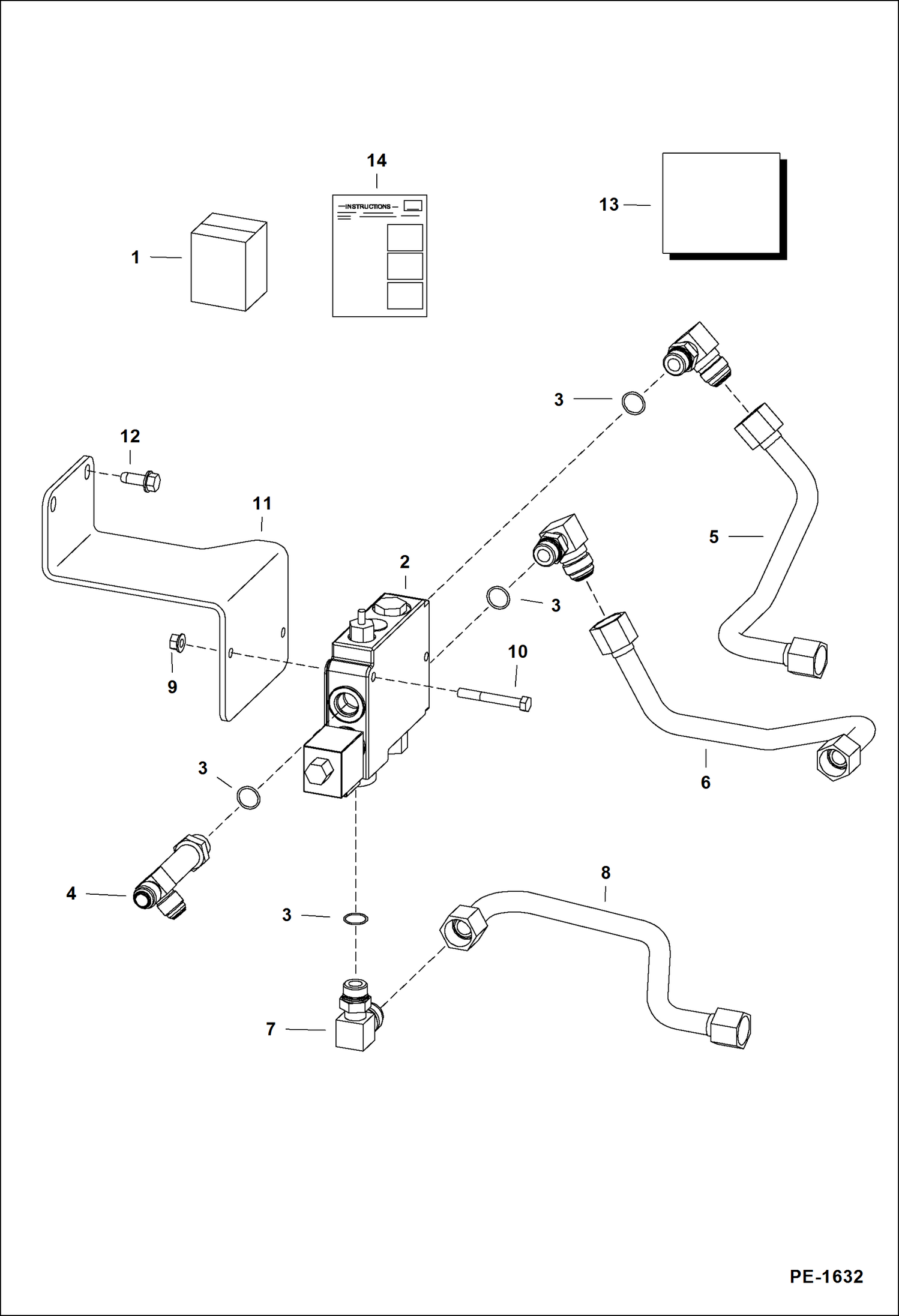

Запчасти Bobcat A-Series BUCKET POSITIONING KIT ACCESSORIES & OPTIONS

1

6734107

KIT Ref. 2-13 - Was 6732354 - B,D

2

6675669

VALVE, BPV See Illustration BUCKET POSITIONING VALVE/ MS1943A PAINTED PRIMER RED

3

99K10

O'RING tapered boss face

3

79K10

O RING 10 flat boss face

4

6730077

TEE W/Ref. 3

4

97K8

O-RING flared end

5

6728180

TUBELINE Was 6730811 - B,D

6

6728179

TUBELINE Was 6730810 - B,D

7

17KB1210

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

8

6730812

TUBELINE

9

83D5

NUT 5

10

17C540

BOLT

11

6730898

MOUNT

12

84G3716

SCREW 5

13

6578278

PAD

14

6902066

INSTRUCTIONS Was 6901709 - B,D
