Запчасти Bobcat A-Series FRONT COVER POWER UNIT

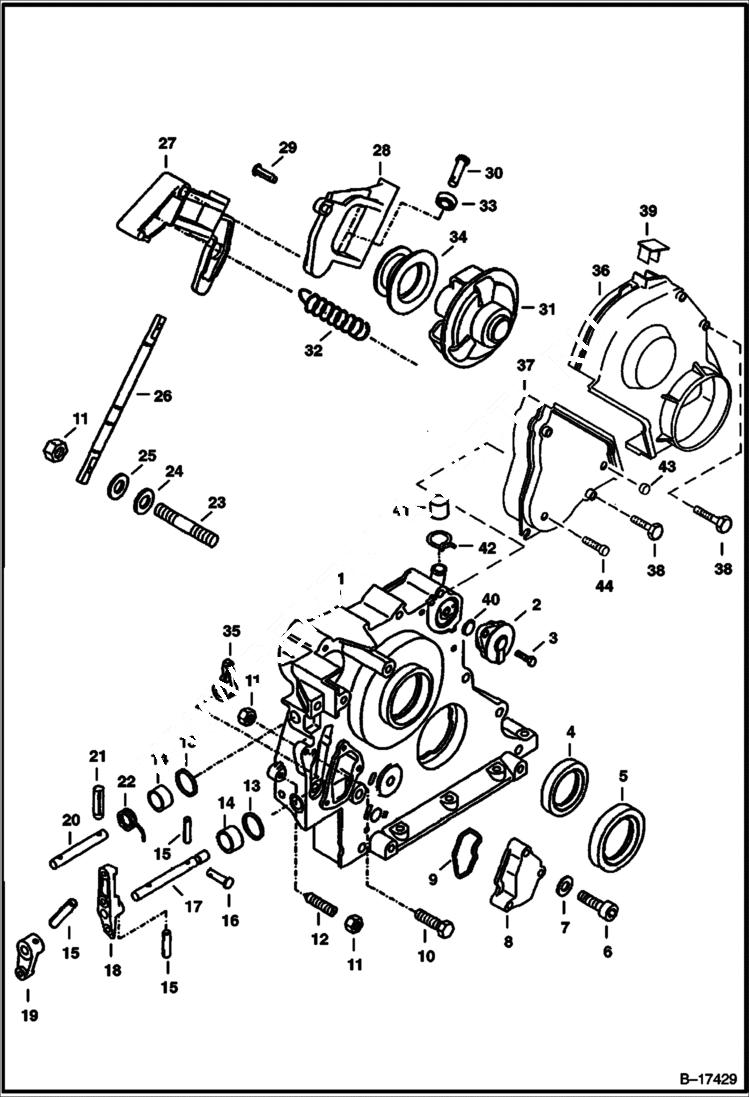

Схема запчастей Bobcat A-Series - FRONT COVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6666748

COVER, FRONT front

2

6666749

BREATHER vent - W/Ref. 40

3

6666695

BOLT

4

6666731

SEAL camshaft

5

6666730

SEAL front main - crankshaft

6

6666710

SCREW

7

6672943

WASHER

8

6666757

COVER

9

6666753

WASHER

10

6666684

BOLT

11

1DM6

NUT

12

6666698

SET SCREW

13

6666714

O-RING

14

6666732

SLEEVE

15

6666688

PIN

16

6666694

PIN clevis

17

6666729

SHAFT lever

18

6672945

ARM lever

19

6666721

LEVER shut-off

20

6666726

SHAFT lever

21

6666686

PIN notched

22

6666727

SPRING

23

6666700

STUD

24

6666717

WASHER

25

6666723

WASHER

26

6666740

SHAFT

27

6672946

ARM lever

28

6666745

LEVER roller - W/Ref. 29, 30 & 33

29

6666687

NAIL notched

30

6666713

PIN

31

6672705

METER, FRONT COVER ENG Was 6666736 - A

32

6673168

SPRING

33

6666692

BEARING ball

34

6666744

SLEEVE

35

6666733

ARM lever

36

6668763

SHIELD

37

6673153

SHIELD W/Ref. 43

38

6666691

BOLT

38

BOLT NLA - Order 6666691 - Was 6672898 - A

39

6668904

CAP

40

6669643

O-RING

41

6666761

CAP Was 6672886 - A

42

6666701

CLAMP

43

6672899

PLUG

44

6679667

SCREW tamper proof

Выбрано товаров: 45
