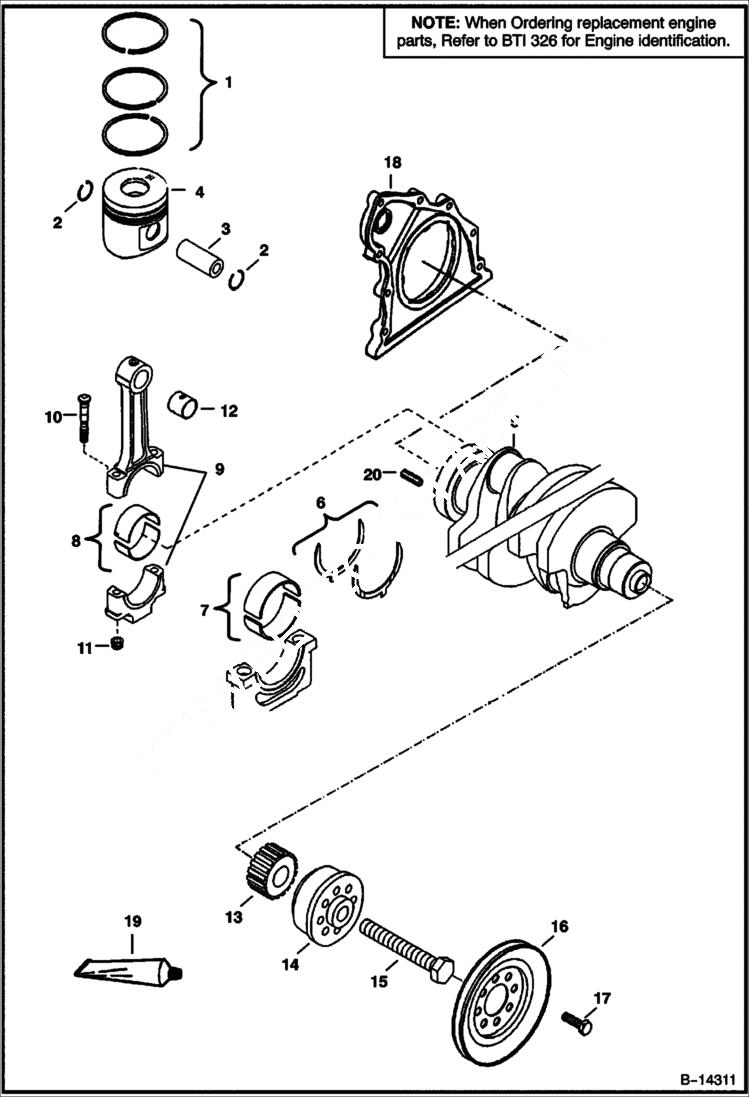

Запчасти Bobcat A-Series PISTON & CRANKSHAFT POWER UNIT

1

6672896

RING, PISTON

2

6666404

RING, SNAP

3

6666470

PIN

4

6673152

PISTON, ENG W/Ref. 1-3

5

6673150

CRANKSHAFT

6

6666456

WASHER, THRUST

7

6669395

MAIN BEARING 2.7559'' (70,00mm) - std

7

6669396

MAIN BEARING 2.7461'' (69,75 mm)

7

6669397

MAIN BEARING 2.7362'' (69,50 mm)

8

6672889

BEARING 2.165'' (55,00mm) - std

8

6672893

BEARING 2.155'' (54,75mm) - Was 6666458 - A

8

6666459

BEARING 2.145'' (54,50mm)

9

6668943

ROD connecting - W/Ref. 10-12

10

6668942

BOLT

11

6666442

NUT

12

6666463

BUSHING

13

6666471

PULLEY

14

6666482

FLANGE

15

6666444

BOLT

16

6666446

PULLEY

17

6666433

BOLT

18

6688307

COVER REAR rear - Was 6666491 - A

19

6632823

GASKET liquid - use between Ref. 18 & block

20

6672890

ADAPTER
