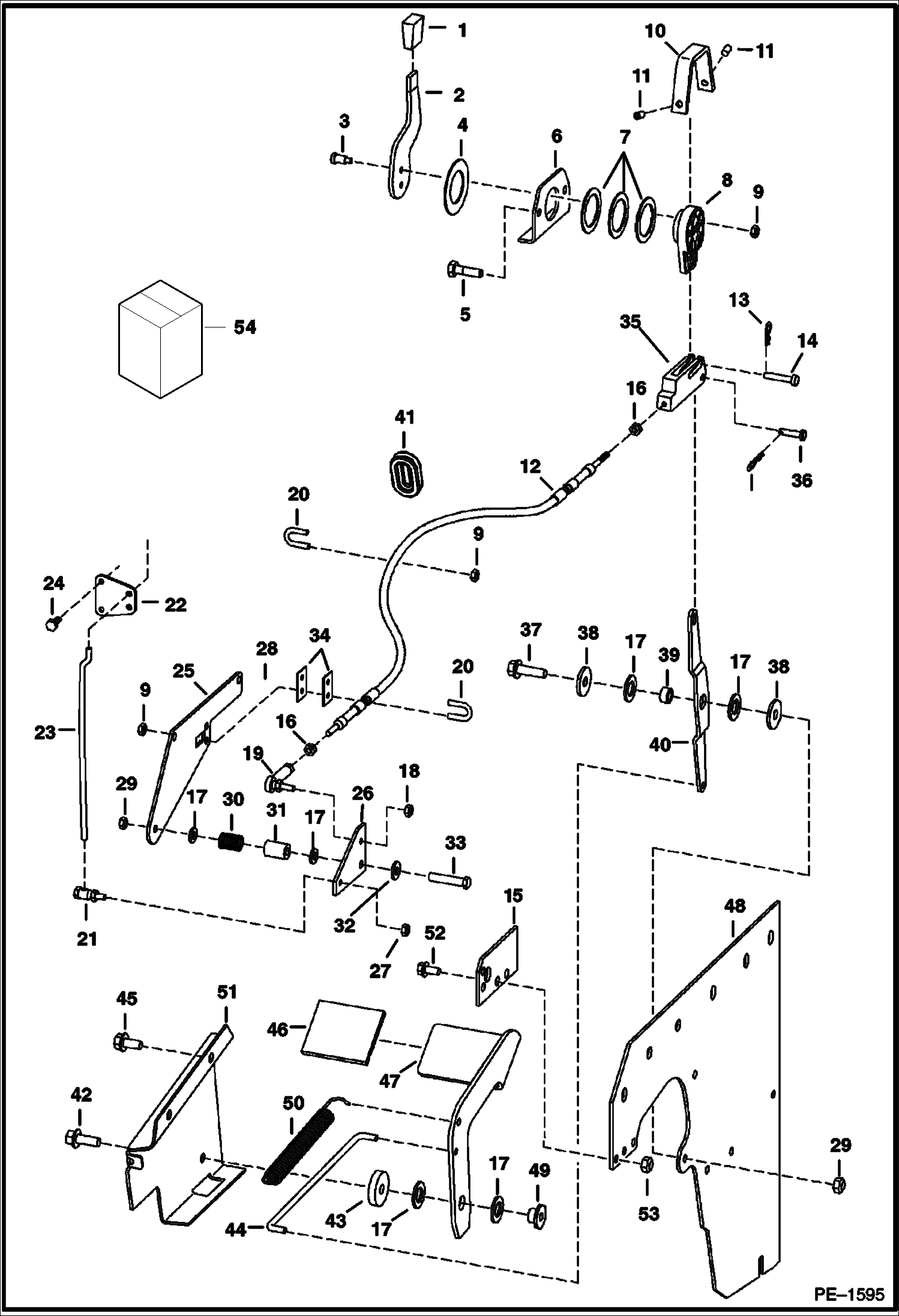

Запчасти Bobcat A-Series THROTTLE (S/N 519611308 & Above, 519711135 & Above) POWER UNIT

1

6564452

GRIP

2

6705452

LEVER

3

38C610

BOLT shoulder

4

6567962

WASHER

5

84G3724

BOLT

6

6576262

MOUNT

7

6630945

WASHER

8

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

8

6734416

LEVER 3-hole rod attachment

9

85D5

NUT 5

10

6576261

COVER Was 6734520 - A

11

6706572

SET SCREW

12

6709959

CABLE, THROTTLE

13

6513495

COTTER PIN

14

2F4051

PIN

15

6732449

PLATE cable

16

8D4

NUT

17

6700170

WASHER plastic

18

86D4

NUT

19

6631036

JOINT

20

6592766

U-BOLT

21

6557291

BALL JOINT

22

6707903

LEVER

23

6707904

ROD

24

53CM616

BOLT

25

6709052

MOUNT

26

6701187

BELLCRANK

27

85D4

NUT 5

28

53CM820

BOLT

29

85D6

NUT, 5

30

6704453

SPRING

31

6708314

BUSHING, SPACER

32

25E18

WASHER

33

84G3728

BOLT

34

6713920

SHIM .0528'' (1,34mm) thick

35

6734503

CLEVIS Was 6731901 - A

36

1304227

PIN

37

84G3720

BOLT

38

619021

WASHER, 5

39

6564343

SPACER

40

6734417

LEVER Was 6729063 - B

41

6577961

GROMMET

42

45C616

BOLT

43

6732322

SPACER

44

6731900

ROD

45

84G3712

BOLT 5

46

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

47

6735680

FOOT PEDAL Was 6731898 - A

48

PANEL See Illustration PANELS/ PE1357

49

6559479

NUT retaining

50

6700743

SPRING

51

6732323

BRACKET

52

84G3716

SCREW 5

53

95D6

NUT
