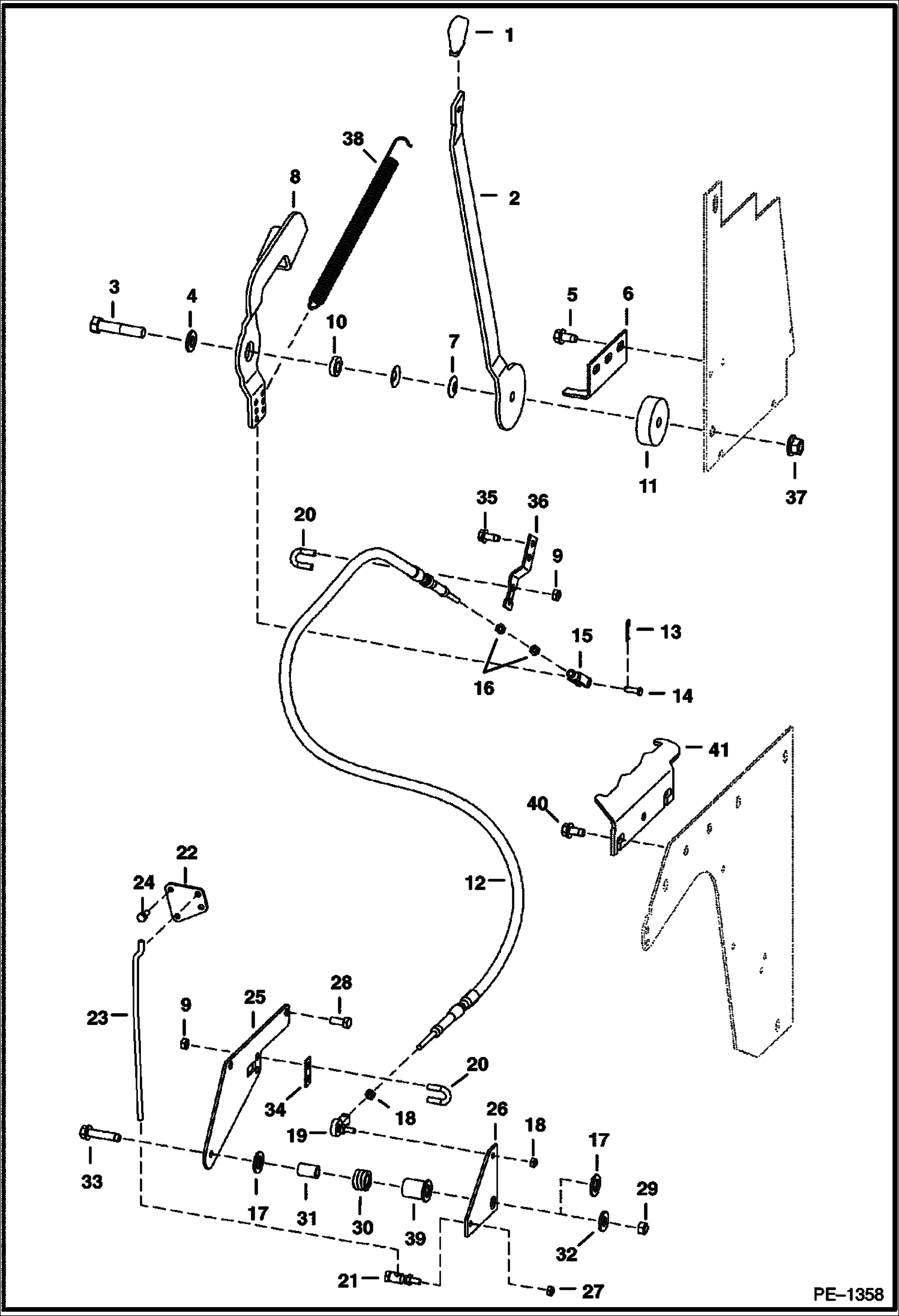

Запчасти Bobcat A-Series THROTTLE (S/N 5196 11307, 5197 11134 & Below) POWER UNIT

1

6564452

GRIP

2

6729062

LEVER

3

17C840

BOLT shoulder

4

25E22

WASHER

5

84G3712

BOLT 5

6

6729076

MOUNT

7

6678750

WASHER

8

6729061

PEDAL foot

9

85D5

NUT 5

10

6728463

BUSHING

11

6728461

BUSHING

12

6678035

CABLE 1955 mm (77'') long

12

6709959

CABLE, THROTTLE 1575 mm (62'') long

13

6513495

COTTER PIN

14

2F4051

PIN

15

2J4200

CLEVIS

16

8D4

NUT

17

6700170

WASHER plastic - Use W/NLA spring 6704453

17

6700170

WASHER plastic - Use W/6678735 spring

18

86D4

NUT

19

6631036

JOINT

20

6592766

U-BOLT

21

6557291

BALL JOINT

22

6707903

LEVER

23

6707904

ROD

24

53CM616

BOLT

25

6709052

MOUNT

26

6579742

BELLCRANK

27

85D4

NUT 5

28

53CM820

BOLT

29

85D6

NUT, 5

30

SPRING NLA - .66'' (16,75 mm) I.D. - Order 6678735, Also Order 6715163 bushing (Ref. 39) - A

30

6678735

SPRING .75'' (19,05 mm) I.D.

31

6708314

BUSHING, SPACER

32

25E18

WASHER

33

84G3728

BOLT

34

6713920

SHIM .0528'' thick

34

6713920

SHIM .0528'' thick

35

84G3112

BOLT 5

36

6729773

BRACKET

37

89D8

NUT

38

6579072

SPRING

39

6715163

BUSHING, PRESS FIT Use W/6678735 spring

40

84G3716

SCREW 5

41

6732025

STOP throttle
