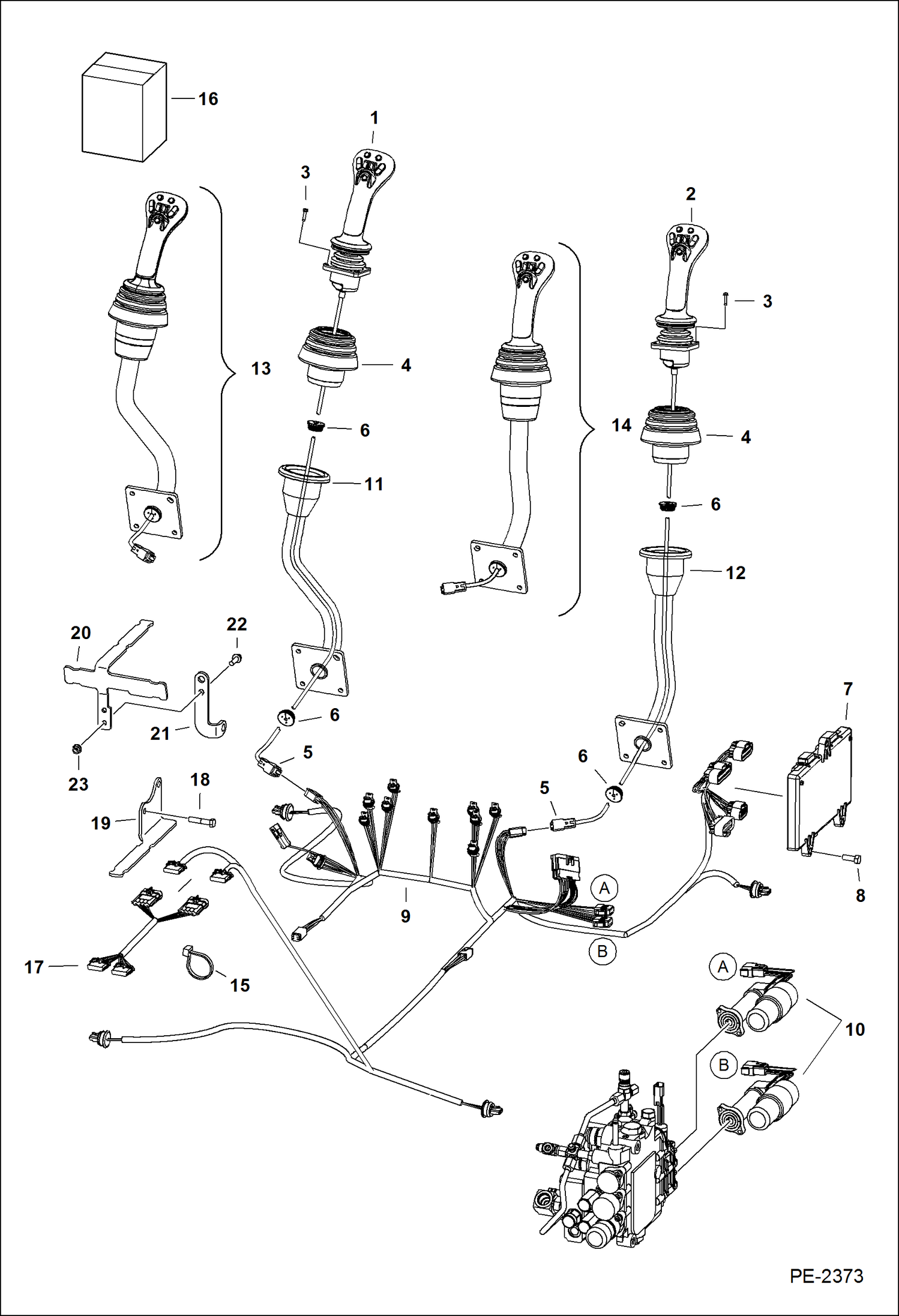

Запчасти Bobcat A-Series CONTROLS ELECTRICAL ELECTRICAL SYSTEM

1

JOYSTICK LH NSS - Order Ref. 13 - Was 6687883 - A

2

JOYSTICK RH NSS - Order Ref. 14 - Was 6687882 - A

3

BOLT NSS - Order Ref. 16 - Was 6678659 - A

4

BOOT NSS - Order Ref. 16 - Was 6678903 - A

5

HARNESS NSS - Order Ref. 16 - Was 6729397 - A

6

6684294

GROMMET

7

6683608

CONTROLLER joystick

8

43C616

BOLT

9

6733293

HARNESS joystick control - Was 6729397 - B

10

ACTUATOR See Illustration MANUAL LIFT RELEASE SYSTEM/ PE2463

11

HANDLE NSS - L.H. - Order Ref. 13 - Was 6729792 - A

12

HANDLE NSS - R.H. - Order Ref. 14 - Was 6729791 - A

13

JOYSTICK ASMBLY LH NLA - L.H. - Ref. 1, 3-6 & 11 - Order Ref. 16 - Was 7111993 - C

14

JOYSTICK ASMBLY RH NLA - R.H. - Ref. 2-6 & 12 - Order Ref. 16 - Was 7111992 - C

15

6624289

STRAP, TIE

16

7126558

KIT, JOYSTICK See Illustration SELECTABLE JOYSTICK HANDLES KIT/ PE3111

17

7131642

HARNESS, ADAPTER See BTI394 - Use W/Ref. 20

18

BOLT See BTI394

19

BRACKET See BTI394 - NLA - bolts to cooling fan

20

7159310

BRACKET, HARNESS See BTI394 - bolts to pump

21

HOOK See Illustration HYDROSTATIC PUMP/ B16054

22

1C516

BOLT

23

97D5

NUT
