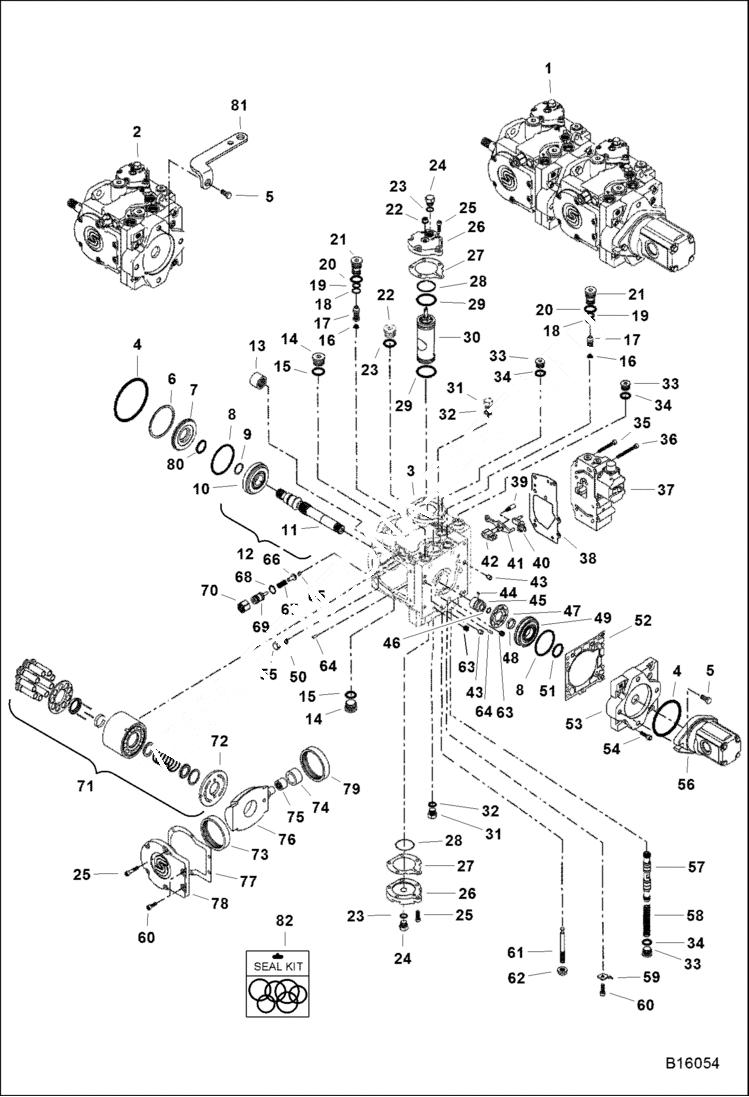

Запчасти Bobcat A-Series HYDROSTATIC PUMP (Servo Assisted Steering) (Right Half) HYDROSTATIC SYSTEM

1

PUMP NLA - Model 4415507 - complete W/gear pump - W/ 5000 psi reliefs - standard flow - Order 6681938 pump - Was 6677772 - A

1

6681938

PUMP Model 4412922 - W/ 5220 psi reliefs - Was 6679821 - A

1

PUMP, HYD TANDEM NLA - Model 4412936 - complete W/ 6686699 gear pump - Order 7021130 pump & 6686699 gear pump or 6686698REM pump & 6686699 gear pump - Was 6686698 - A

1

6686698REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

PUMP NLA - Model 4415508 - complete W/gear pump - W/ 5000 psi reliefs - high flow - Order 6681939 pump - Was 6677773 - A

1

6681939

PUMP Model 4412923 - W/ 5220 psi relief - Was 6679822 - A

1

PUMP NLA - Model 4412939 - complete W/ 6686710 gear pump - Order 7021130 pump or 6687021REM pump - Also Order 6686710 gear pump - Was 6687021 - A

1

6687021REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

PUMP See Illustration HYDROSTATIC PUMP/ NA5665 - NLA - Model 4412126 - right half - Ref. 3-78 - W/ 5000 psi reliefs - Order 7023432 pump or 6680434REM pump - Was 6678528 - A

2

6680434

PUMP, HYD RH See Illustration HYDROSTATIC PUMP/ NA5665 - NLA - Model 4412142 - right half - Ref. 3-80 - W/ 5220 psi reliefs - Order 7023432 pump or 6680434REM pump - Was 6680434 - A

2

6680434REM

PUMP, HYD RH, W/O GEAR PUMP

3

HOUSING NSS - W/Ref. 13, 63, 65 & 79

4

6678384

O-RING

5

6678385

BOLT

5

1C820

BOLT Use W/Ref. 81

6

6678354

SNAP RING internal

7

6678332

SEAL CARRIER shaft seal

8

6678331

O-RING

9

6678328

SNAP RING

10

6678329

BEARING roller

11

6678389

SHAFT

12

6678390

SHAFT assy. - Ref. 9-11

13

6650635

BEARING needle

14

6678353

PLUG

15

6662198

O-RING

16

6678364

SPRING

17

VALVE NLA - relief - 5000 PSI (345 bar) - Order 6680294 - SEE NOTE - Was 6658300 - A

17

6680294

VALVE relief - 5220 PSI (360 bar)

18

6678366

O-RING

19

6631468

WASHER back-up

20

79K10

O RING 10

21

6678365

VALVE by-pass

22

6678338

NUT

23

6661481

O-RING

24

6645086

PLUG W/Ref. 23

25

6678352

SCREW

26

6678367

COVER servo

27

6678350

GASKET

28

6678375

RING piston

29

6678374

O-RING

30

6678372

SERVO W/Ref. 28 & 29

30

6678373

KIT ring - (2) each of Ref. 28 & 29

31

6645086

PLUG W/Ref. 32

32

6661481

O-RING

33

6667402

PLUG W/Ref. 34

34

79K8

O RING 10

35

6678340

SCREW

36

6678341

SCREW

37

6678339

HOUSING, CONTROL PUMP HYD W/Ref. 35 & 36

37

6678339REM

HOUSING, CONTROL PUMP

38

6678344

GASKET

39

6678333

SCREW

40

6678334

LINK summing

41

6678335

LINK feedback

42

6678336

LINK neutral adjust

43

6518460

PIN

44

6678358

KEY

45

6678381

COUPLER 15/22 tooth

45

7001133

COUPLER, BODY 13/22 tooth

46

6678359

SNAP RING

47

6678360

GEROTOR

48

6678858

BEARING

49

6678361

COVER gerotor - W/Ref. 48

50

6678371

O-RING

51

6678363

O-RING

52

6678357

GASKET

53

6678383

COVER charge pump

54

6678382

SCREW

55

6678370

PLUG W/Ref. 50

56

GEAR PUMP See Illustration GEAR PUMP/ B16446 See Illustration HIGH HORSEPOWER HYDRAULICS/ B18248

57

6678342

SPOOL

58

SPRING NLA - Order 6688648 spring kit - Was 6678343 - A

59

6678355

BRACKET

60

6678348

SCREW

61

6678337

SCREW neutral adjust

62

6678338

NUT

63

6518510

PLUG pipe

64

6678347

PIN

65

6678351

FILTER screen

66

6661717

POPPET charge relief

67

6661716

SPRING

68

6678377

O-RING

69

6678376

ADJUSTER charge relief

70

6661718

NUT

71

6678386

ROTATING PIECE

72

6678369

VALVE PLATE

73

BEARING NSS - Order Ref. 78

74

6678379

CAM W/Ref. 75

75

6678380

BEARING

76

6678378

SWASHPLATE

77

6678349

GASKET

78

6678346

COVER W/Ref. 73

79

BEARING NSS - Order Ref. 2

80

6650626

SEAL shaft

81

6731178

HOOK See Illustration CONTROLS ELECTRICAL/ PE2373 See BTI394

82

6678388

SEAL KIT
