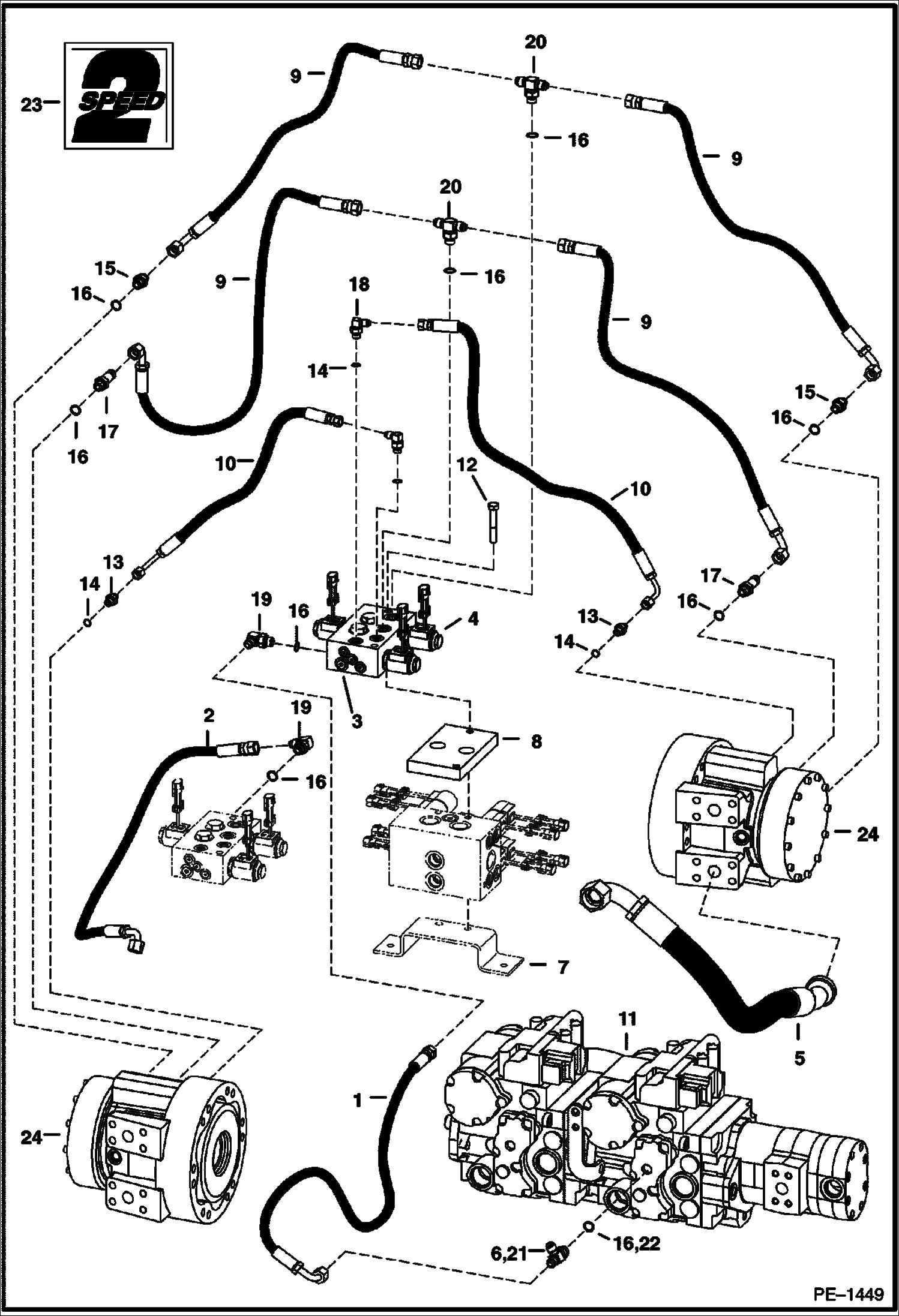

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (2-Speed Option) HYDROSTATIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
6809144
HOSE
2
6628613
HOSE
3
6661753
PLUG diagnostic - Use W/6676417 2-speed valve
4
VALVE See Illustration 2-SPEED VALVE/ MS1143 See Illustration 2-SPEED VALVE/ MS1385 2-speed
5
6677671
HOSE
6
TEE NLA - W/Ref. 16 - tapered boss face - Was 21KV00005B - A
6
97K6
O RING
6
21KB0606
FTG HYD STRAIGHT TEE W/Ref. 16 - flat boss face
7
6729017
MOUNT
8
6729039
BLOCK 2-speed
9
6729590
HOSE
10
6729591
HOSE
11
COVER NLA - W/O breather hole - Order 6732174 - Was 6725496 - A
11
6732174
COVER W/Breather hole
12
43C640
BOLT
13
CONNECTOR NLA - W/Ref. 14 - tapered boss face - Was 15KV00003B - A
13
97K4
O'RING flared end
13
15KB0404
FTG HYD S Connector W/Ref. 14 - flat boss face
14
99K4
O'RING tapered boss face
14
79K4
O RING 10 flat boss face
15
ADAPTER NLA - W/Ref. 16 - tapered boss face - Was 15KV00005B - A
15
97K6
O RING flared end
16
99K6
O RING tapered boss face
16
79K6
O RING 10 flat boss face
17
ADAPTER NLA - W/Ref. 16 - tapered boss face - Was 16KN00005B - A
17
97K6
O RING flared end
17
16KB0606
FTG HYD L CONNECTOR W/Ref. 16 - flat boss face
18
ELBOW NLA - W/Ref. 14 - tapered boss face - Was 17KV00003B - A
18
97K4
O'RING flared end
18
17KB0404
FTG HYD ELBOW 90 W/Ref. 14 - flat boss face
19
ELBOW NLA - W/Ref. 16 - Use W/6676417 2-speed valve - Was 17KV00005B - A
19
ELBOW NLA - W/Ref. 16 - Use W/6679102 2 speed valve - Was 17KV00005B - A
19
97K6
O RING flared end
19
17KB0606
FITTING W/Ref. 16 - flat boss face
20
TEE NLA - W/Ref. 16 - Was 19KV00005B - A
20
97K6
O RING flared end
20
19KB0606
TEE W/Ref. 16
21
TEE NLA - W/Ref. 22 - tapered boss face - Was 21KN00007B - A
21
97K10
O-RING 10 flared end
21
21KB1010
FITTING, HYD TEE W/Ref. 22 - flat boss face
22
99K10
O'RING tapered boss face
23
6729078
DECAL
24
MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B16657
Выбрано товаров: 45
