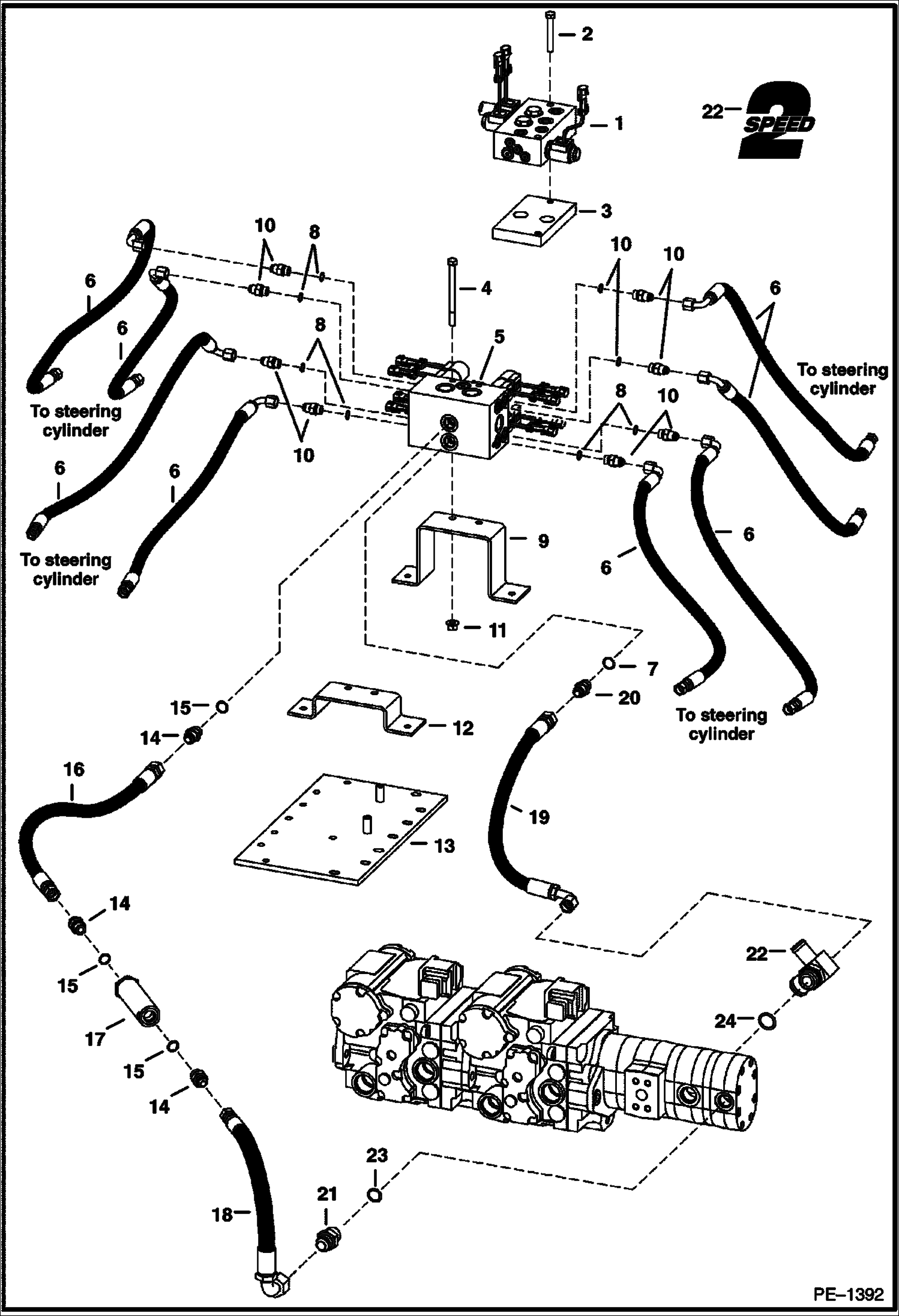

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (Steering Valve) HYDROSTATIC SYSTEM

1

VALVE See Illustration 2-SPEED VALVE/ MS1143 2-SPEED

2

43C640

BOLT

3

6729039

BLOCK

4

17C672

BOLT

5

VALVE See Illustration STEERING VALVE/ MS1174 STEERING

6

6727423

HOSE

7

99K10

O'RING tapered boss face

7

79K10

O RING 10 flat boss face

8

99K6

O RING tapered boss face

8

79K6

O RING 10 flat boss face

9

6729016

BRACKET

10

ADAPTOR NLA - W/Ref. 8 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 8 - flat boss face

11

83D6

NUT 5

12

6729017

MOUNT

13

6725496

COVER

14

ADAPTOR NLA - W/Ref. 15 - tapered boss face - Was 15KV00006B - A

14

97K8

O-RING flared end

14

15KB0808

FITTING, HYD CONNECTOR W/Ref. 15 - flat boss face

15

99K8

O-RING tapered boss face

15

79K8

O RING 10 flat boss face

16

6727921

HOSE

17

6679143

FILTER, VALVE STEERING IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B22136 steering in-line

18

6729754

HOSE

19

6809326

HOSE

20

FITTING, HYD CONNECTOR NLA - W/Ref. 7 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 7 - flat boss face

21

ADAPTER NLA - W/Ref. 23 - tapered boss face - Order 15KB01212B - Was 15KN00008B - A

21

97K12

O'RING flared end

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 23 - flat boss face

22

6727069

TEE

22

6733809

TEE

23

99K12

O RING tapered boss face

23

79K12

O RING 10 flat boss face

24

79K16

O RING 10
