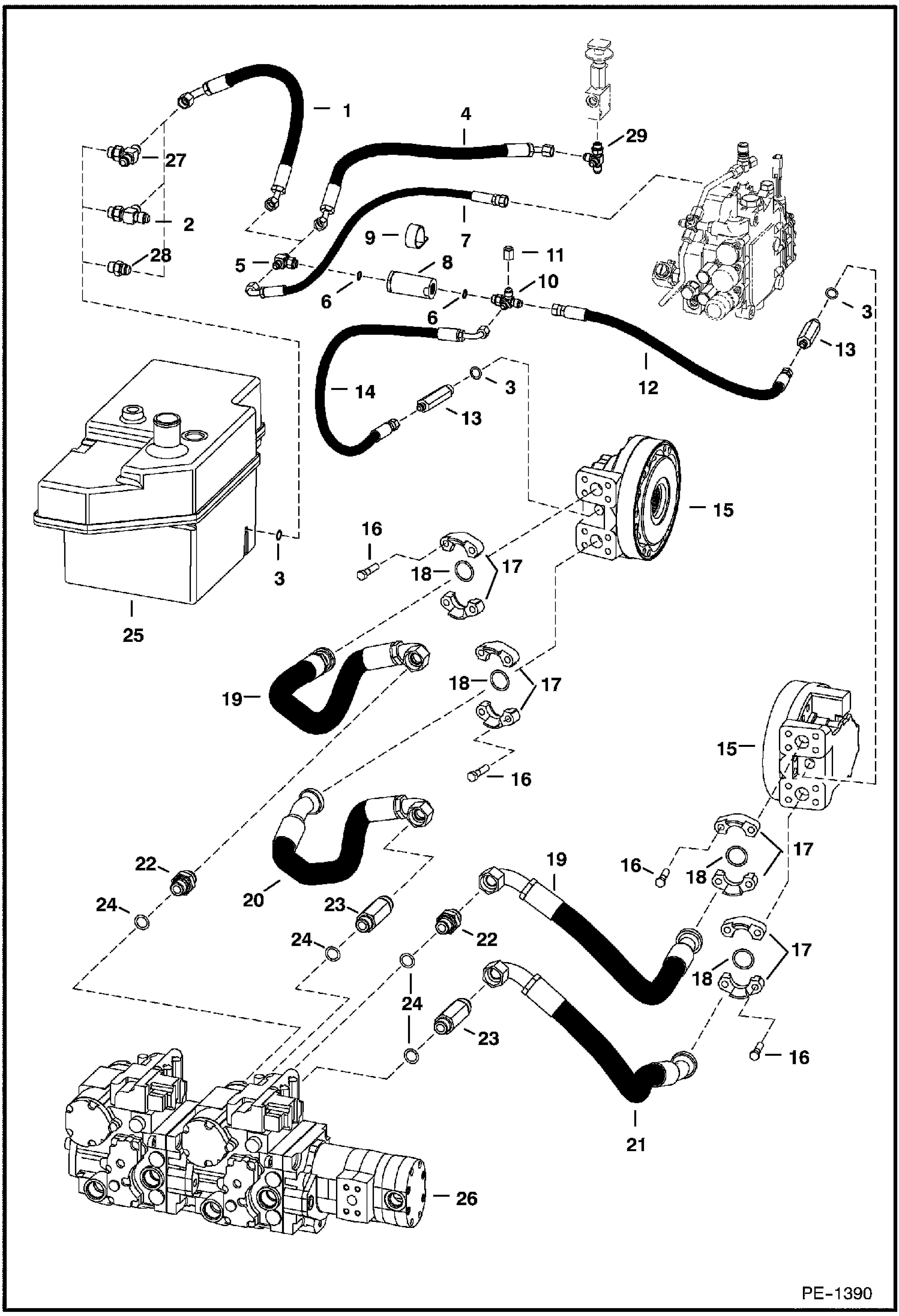

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Motors) HYDROSTATIC SYSTEM

1

6726453

HOSE

2

21KB0808

FTG HYD STRAIGHT TEE See Illustration MANUAL LIFT RELEASE SYSTEM/ PE2463 W/Ref. 3 - Was 21KN00006B - A

2

97K8

O-RING flared end

3

99K8

O-RING

4

6734101

HOSE Was 6732547 - A

5

19KB0606

TEE W/Ref. 6 - tapered boss face - Was 19KV00005B - A

5

97K6

O RING flared end

5

19KB0606

TEE W/Ref. 6 - flat boss face

5

6725497

CROSS w/Ref. 6 - flat boss face - W/port

6

99K6

O RING tapered boss face

6

79K6

O RING 10 flat boss face

7

6725431

HOSE

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

30H79

CLAMP Was 30H000060B - B

10

6718031

TEE W/Ref. 6

10

97K6

O RING flared end

11

36K5

CAP

12

6725432

HOSE

13

6717306

ADAPTER W/Ref. 3

13

97K6

O RING flared end

14

6725433

HOSE

15

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B16657 See Illustration HYDROSTATIC MOTOR/ C3374

16

17C728

BOLT

17

20J16

FLANGE

18

55K219

O'RING

19

6673955

HOSE

20

6677768

HOSE

21

6677671

HOSE

22

ADAPTER NLA - W/Ref. 24 - 2.16'' (55 mm) long - Order 15KB01612B - Was 6715878 - A

22

15KB1612

FITTING, HYD CONNECTOR W/Ref. 24 - 2.38'' (60,5 mm) long

23

6716243

ADAPTER W/Ref. 24

24

75K12

O'RING 10

24

79K12

O RING 10 for 15KB01612B

25

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE1389

26

PUMP See Illustration HYDROSTATIC PUMP/ B16054

27

19KB0808

Fitting Hydraulic Branch Tee See Illustration MANUAL LIFT RELEASE SYSTEM/ PE2463 W/Ref. 3 - Was 19KN00006B - A

27

97K8

O-RING flared end

28

15KB0808

FITTING, HYD CONNECTOR See Illustration MANUAL LIFT RELEASE SYSTEM/ PE2463 W/Ref. 3 - Was 15KN00006B - A

28

97K8

O-RING flared end

29

CROSS See Illustration MANUAL LIFT RELEASE SYSTEM/ PE2463
