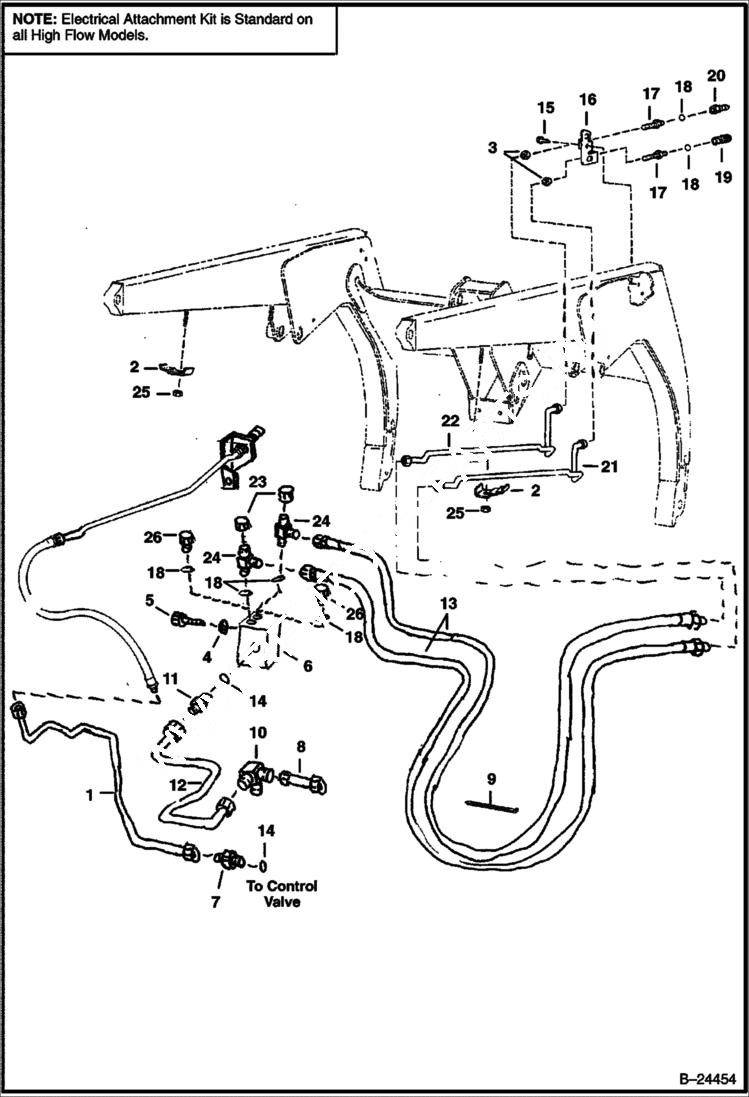

Запчасти Bobcat A-Series HIGH HORSEPOWER HYDRAULICS ( Auxiliary Hydraulics ) HIGH FLOW HYDRAULICS

1

6719068

TUBELINE

2

6703216

CLAMP

3

86F5

NUT

4

25E17

WASHER 5

5

17C612

BOLT 5

6

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R CONTROL

7

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - tapered boss face - Was 15KN00008B - A

7

97K12

O'RING flared end

7

6812646

ADAPTER

8

6719067

TUBELINE

9

6624289

STRAP, TIE

9

6624289

STRAP, TIE

10

6719053

TEE

10

97K10

O-RING 10 flared end

11

6655572

VALVE check - W/Ref. 14

12

6719069

TUBELINE

13

6719266

HOSE

14

99K12

O RING tapered boss face

15

84G3716

SCREW 5

16

6711674

MOUNT

17

6716089

CONNECTOR tapered boss face - W/Ref. 18

17

97K6

O RING flared end

18

99K6

O RING tapered boss face

19

6667803

COUPLER, FF FEMALE

20

6667804

COUPLER, FF MALE

21

6719165

TUBELINE

22

6719166

TUBELINE

23

36K5

CAP

24

21KB0606

FTG HYD STRAIGHT TEE tapered boss face - W/Ref. 18 - Was 21KV00005B - A

24

97K6

O RING flared end

25

59D6

NUT

26

90KV5

PLUG W/Ref. 18
