Запчасти Bobcat A-Series AUXILIARY HYDRAULICS (S/N 5196 11124, 5197 11004 & Above) HYDRAULIC SYSTEM

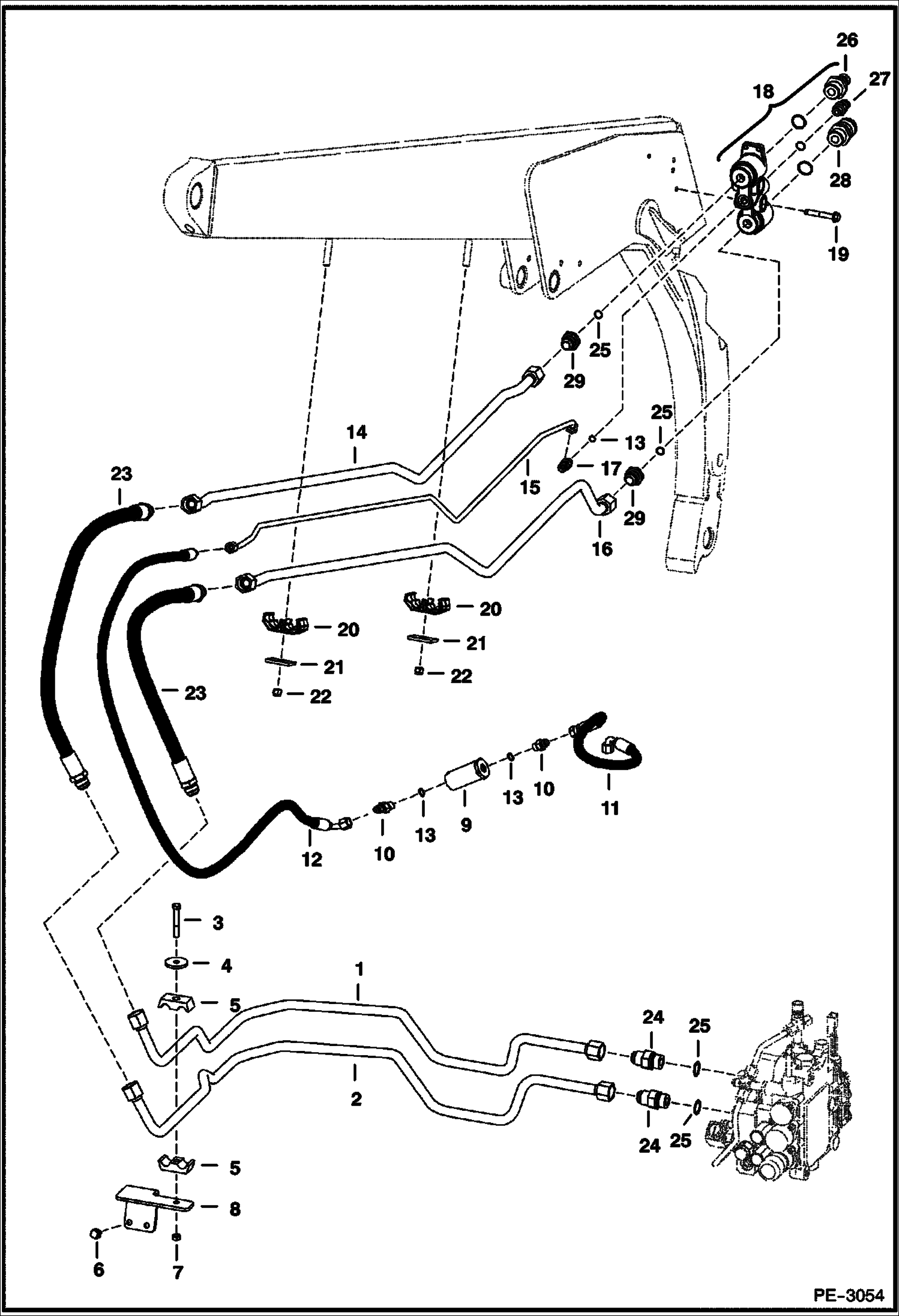

Схема запчастей Bobcat A-Series - AUXILIARY HYDRAULICS (S/N 5196 11124, 5197 11004 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6718793

TUBELINE

2

6718792

TUBELINE

3

17C640

BOLT 5

4

872229

WASHER

5

6592506

CLAMP

6

84G3712

BOLT 5

7

85D6

NUT, 5

8

6712599

BRACKET

9

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

10

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

11

6712885

HOSE

11

6702079

HOSE

12

6725424

HOSE

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

6730032

TUBELINE

15

6730031

TUBELINE casedrain

16

6730033

TUBELINE

17

FITTING NLA - 45 degree - W/Ref. 13 - tapered boss face - Was 18KN00005B - A

17

97K6

O RING flared end

17

18KB0606

FITTING, HYD ELBOW 45 degree - W/Ref. 13 - flat boss face

18

6678076

BLOCK coupler - Ref. 26 - 28 & (2) of Ref. 29

19

84G3740

BOLT

20

6717951

CLAMP

21

6553709

WASHER

22

59D6

NUT

23

6729152

HOSE

24

15KB1212

FITTING, HYD CONNECTOR W/Ref. 25 - Was 6812646 - A

25

79K12

O RING 10 Was 99K000012B - B

26

6679837

COUPLER male

26

6679841

SEAL blue - front

26

6680020

SEAL KIT (3) O-rings & (3) back-up washers

27

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

27

6679840

SEAL blue - front

28

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

28

6680020

SEAL KIT (3) O-rings & (3) back-up washers

28

6680018

COUPLER, KIT female - Use W/hydraulic breaker

29

6679836

ADAPTER W/spring & Ref. 25

Выбрано товаров: 40
