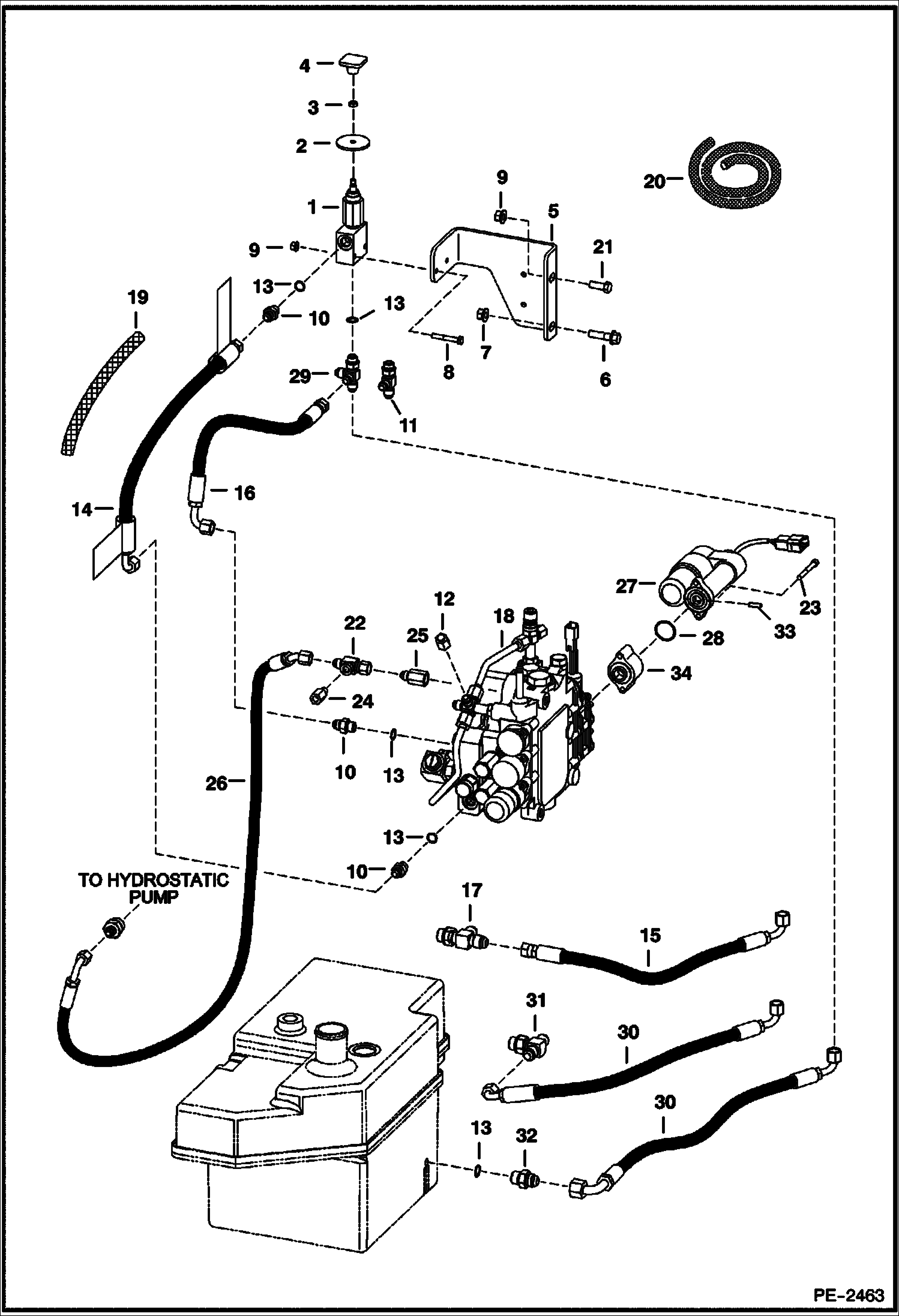

Запчасти Bobcat A-Series MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

1

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

2

6707101

SEAL neoprene

3

7D4

NUT for 6667874

4

6737524

KNOB red square - Was 6668913 - A

5

6718881

BRACKET

6

35C624

BOLT

7

83D6

NUT 5

8

17C428

BOLT

9

83D4

NUT 10

10

ADAPTOR NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

11

FTG HYD STRAIGHT TEE NLA - W/Ref. 13 - tapered boss face - Was 21KV00005B - A

11

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13 - flat boss face

12

36K5

CAP

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

6729602

HOSE 21'' (533 mm) long - available only as an assembly W/two danger decals installed

14

6809511

DECAL, DANGER

15

6725430

HOSE

16

6706790

HOSE

17

HOSE ASSY NLA - W/Ref. 13 - flat boss face - Was 21KV00006B - A

17

97K8

O-RING flared end

17

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 13 - flat boss face

18

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1620

19

SHIELD NLA - 21'' (533mm) long - Order Ref. 20

20

6650108

HOSE COVER bulk - 1.35'' (33,5mm) I.D. - Sold Per foot

21

35C616

BOLT 5

22

6718660

TEE

22

97K6

O RING flared end

23

69G436

BOLT

24

6563922

SNUBBER

25

6672766

CHECK VALVE

26

6725090

HOSE

27

ACTUATOR NLA - Use W/Ref. 28 (58K120 O-ring) & Ref. 34 (6725128 adapter) - Order 7101672 actuator & Ref. 34 (7101705 adapter) - Was 6678775 - A

27

ACTUATOR NLA - W/Ref. 28 (6686220 O-ring) - Use W/Ref. 34 (7101705 adapter) - Was 7103129 - A

27

7101672

ACTUATOR W/Ref. 28 (58K120 O-ring) - Use W/Ref. 34 (7101705 adapter)

28

58K120

O-RING Use W/Ref. 27 (NLA/ 6678775 actuator & 7101672 actuator)

28

6686220

O-RING Use W/Ref. 27 (NLA/ 7103129 actuator)

29

6718031

TEE

30

6731897

HOSE

31

19KB0808

Fitting Hydraulic Branch Tee W/Ref. 13 - Was 19KN00006B - A

31

97K8

O-RING flared end

32

15KB0808

FITTING, HYD CONNECTOR W/Ref. 13 - Was 15KN00006B - A

32

97K8

O-RING flared end

33

7108236

PIN Was 6718506 - A

34

6725128

ADAPTER actuator - W/ O-ring groove - Use W/Ref. 27 (NLA/ 6678776 actuator)

34

7101705

ADAPTER, ACTUATOR W/O O-ring groove - Use W/Ref. 27 (NLA/ 7103129 actuator & 7101672 actuator)
