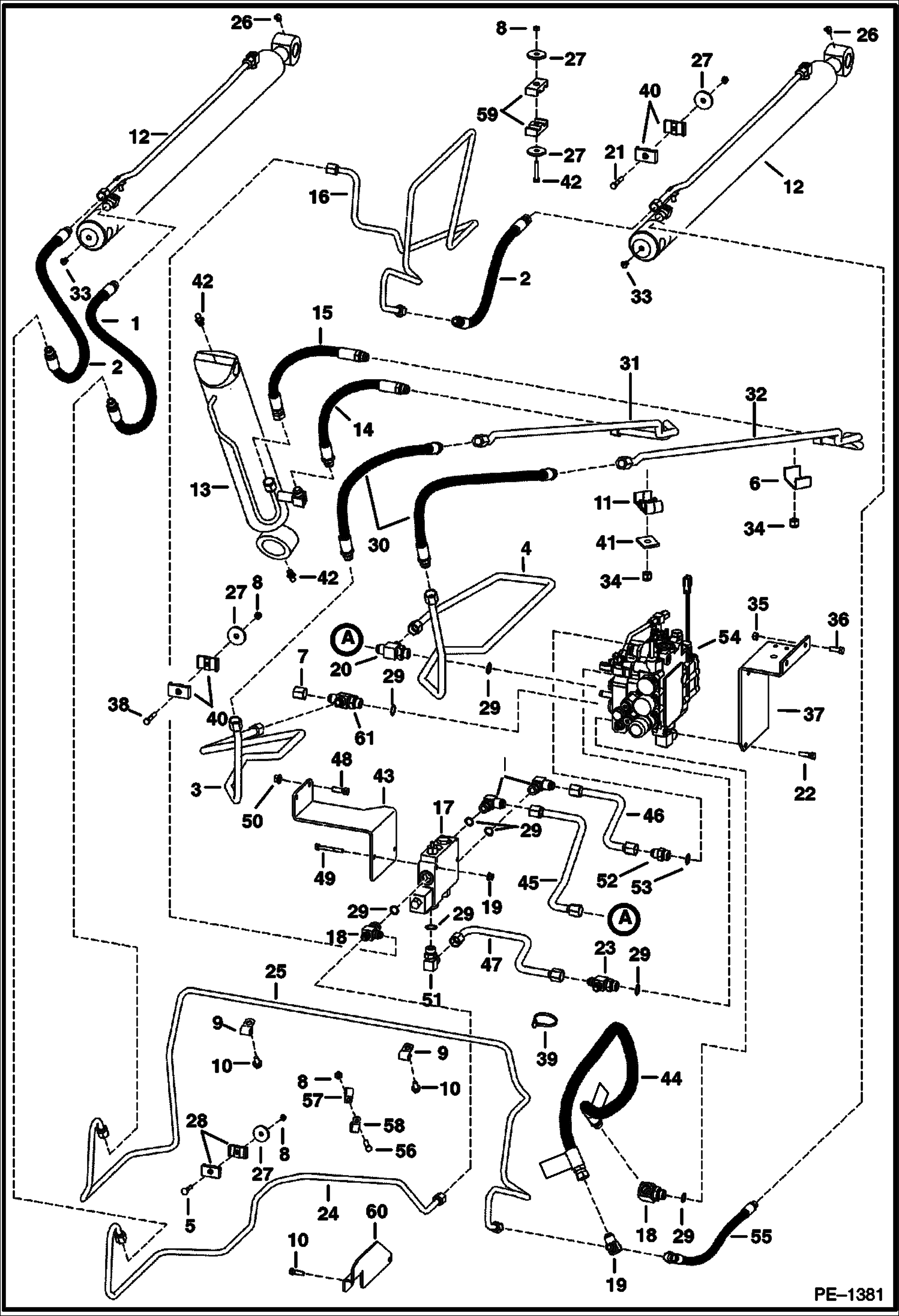

Запчасти Bobcat A-Series HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) HYDRAULIC SYSTEM

1

6669460

HOSE

2

6669461

HOSE

3

6729780

TUBELINE

4

6719354

TUBELINE

5

10C528

BOLT

6

6718754

CLAMP

7

36K7

FITTING

8

85D5

NUT 5

9

30H32

CLIP

10

84G3712

BOLT 5

11

6717933

CLAMP

12

CYLINDER See Illustration LIFT CYLINDER/ TS1451 LIFT

13

CYLINDER See Illustration TILT CYLINDER/ MS1988 TILT

14

6578773

HOSE

15

6578774

HOSE

16

6729898

TUBELINE lift

17

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 bucket positioning

18

ELBOW NLA - W/Ref. 29 - tapered boss face - Was 6729357 - A

18

7109623

ELBOW W/Ref 29 - flat boss face - Was 6817335 - A

19

6716061

TEE

20

6715294

TEE W/Ref. 29

20

97K10

O-RING 10 flared end

21

84G3728

BOLT

22

6717378

BOLT

23

15KB1010

FITTING, HYD CONNECTOR W/Ref. 29 - tapered boss face - Was 15KV00007B - A

23

97K10

O-RING 10 flared end

24

6729937

TUBELINE lift

25

6729432

TUBELINE lift

26

12H15

FITTING, GREASE 5

27

872229

WASHER

28

6701892

CLAMP

29

99K10

O'RING tapered boss face

29

79K10

O RING 10 flat boss face

30

6669674

HOSE

31

6718161

TUBELINE

32

6718162

TUBELINE

33

11H15

GREASE FITTING

34

59D8

NUT 5

35

85D6

NUT, 5

36

17C616

BOLT 5

37

6727750

BRACKET

38

17C528

BOLT

39

6624289

STRAP, TIE

40

6701893

CLAMP

41

6553709

WASHER rectangular

42

10H25

FITTING, GREASE 5

43

6718726

MOUNT BPV

43

6731906

MOUNT BPV

44

6729601

HOSE available only as an assembly W/two danger decals installed

44

6809511

DECAL, DANGER

45

6729794

TUBELINE tilt - for single speed

45

6731723

TUBELINE tilt - for 2 speed option

46

6718832

TUBELINE tilt- for single speed

46

6731722

TUBELINE tilt - for 2 speed option

47

6718877

TUBELINE lift

48

17C632

BOLT 5

48

84G3716

SCREW 5

49

17C540

BOLT

50

83D6

NUT 5

51

17KB1010

FITTING, HYD ELBOW W/Ref. 29 - Was 17KV00007B - A

51

97K10

O-RING 10 flared end

52

15KB1212

FITTING, HYD CONNECTOR W/Ref. 53 - tapered boss face - Was 15KN00008B - A

52

97K12

O'RING flared end

52

15KB1212

FITTING, HYD CONNECTOR W/Ref. 53 - flat boss face

53

99K12

O RING tapered boss face

53

79K12

O RING 10 flat boss face

54

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1620 CONTROL

55

6727810

HOSE

56

17C516

BOLT

57

30H30

CLAMP

58

30H64

CLAMP

59

6729605

CLAMP

60

6730024

SHIELD

61

21KB1010

FITTING, HYD TEE W/Ref. 29 - Was 21KN00007B - A
