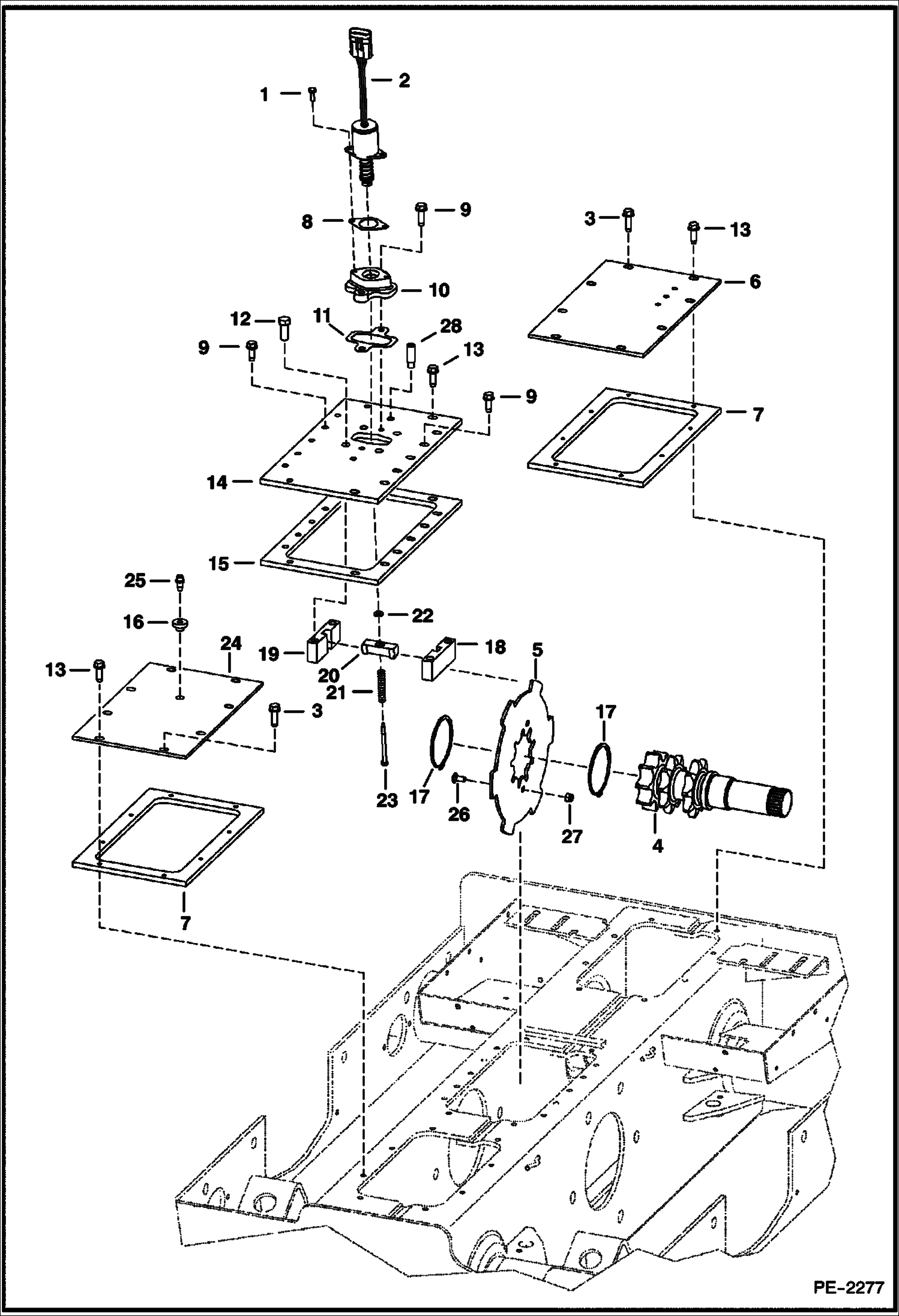

Запчасти Bobcat A-Series DISC BRAKE DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID Was 6667992 - A

3

84G3712

BOLT 5

4

6729662

SHAFT See Illustration MOTOR CARRIER/ PE1395

5

6715630

BRAKE disc

6

6729173

COVER See Illustration MAIN FRAME/ PE1354

7

6703097

GASKET, TRANS COVER

8

6706737

GASKET

9

84G3720

BOLT

10

6706718

MOUNT

11

6708016

GASKET

12

47C820

BOLT

13

84G3716

SCREW 5

14

6725496

COVER See Illustration MAIN FRAME/ PE1354 two speed - W/breather hole

14

6732174

COVER See Illustration MAIN FRAME/ PE1354 two speed - W/O breather hole

15

6708070

GASKET, COVER BRAKE

16

6553411

BUSHING

16

6599645

PLUG, STEEL

17

6662298

RING, RETAINER

18

6719057

BLOCK guide - RH

19

6719056

BLOCK guide - LH

20

6714278

WEDGE, LOCK TRACTION

21

6708018

SPRING

22

25E13

WASHER 5

23

6708267

BOLT

24

6700330

COVER See Illustration MAIN FRAME/ PE1354

25

6680970

BREATHER See Illustration MAIN FRAME/ PE1354 Was 6670627 - A

26

37C512

BOLT

27

59D5

NUT 5

28

7025626

VENT, BREATHER - Was 6684923 - A
