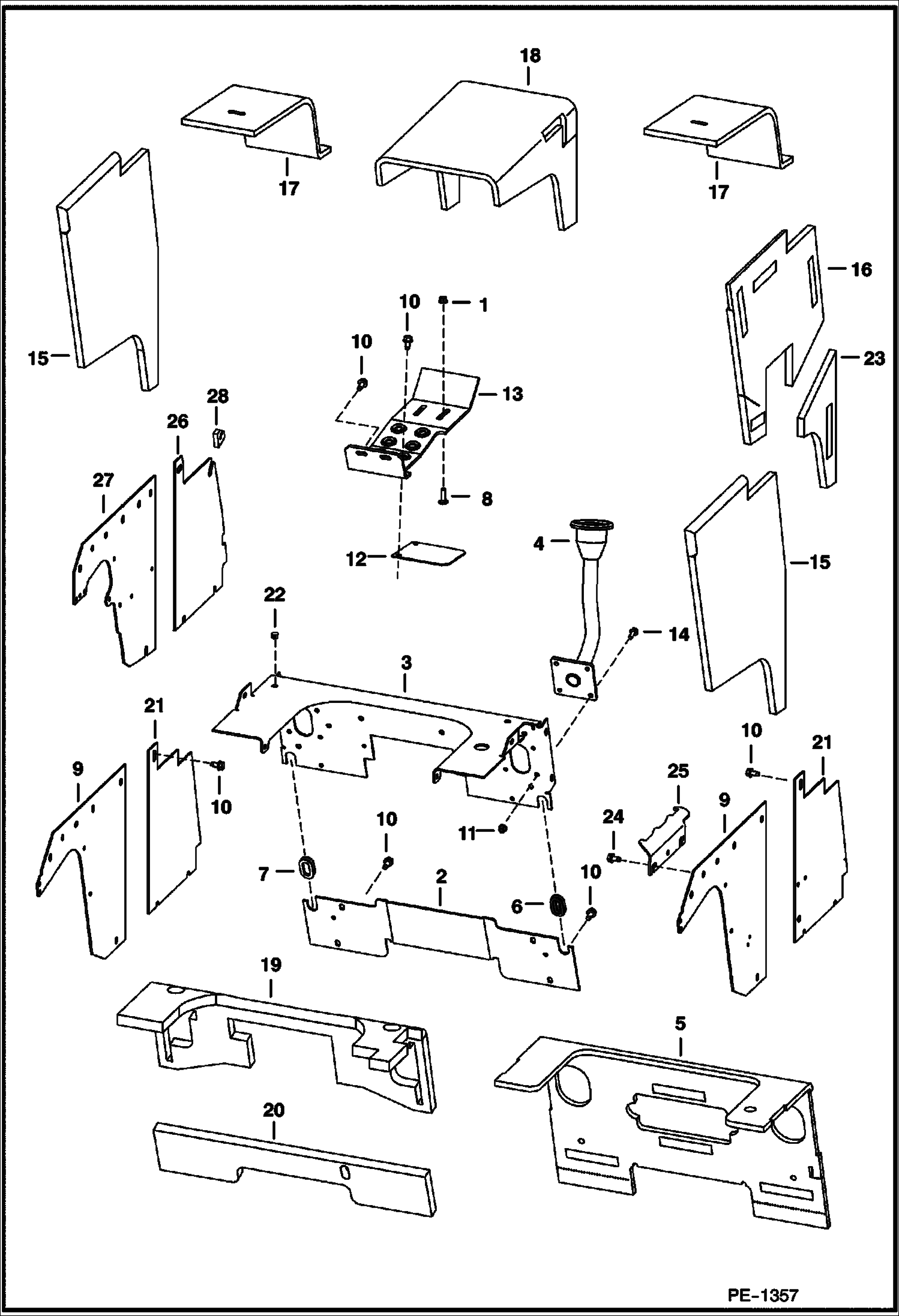

Запчасти Bobcat A-Series PANELS MAIN FRAME

1

57D6

NUT 5

2

6718915

PANEL

3

7106707

SHIELD Also Order 6734520 cover - Was 6729899 - A

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2373 NLA - joystick - R.H. - Order 7111992 joystick assembly - Was 6729791 - A

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2373 NLA - joystick - L.H. - Order 7111993 joystick assembly - Was 6729792 - A

5

6730094

INSULATION steering panel

6

6714726

GROMMET Was 6577961 - B,D

7

6714726

GROMMET

8

37C620

BOLT

9

6729787

PANEL R.H & L.H.

9

6729787

PANEL R.H.

9

6731838

PANEL L.H.

10

84G3712

BOLT 5

11

89D5

NUT

12

6729774

COVER

13

6729237

STEP

14

35C512

BOLT

15

6730098

INSULATION panel - L.H.

15

6733353

INSULATION panel - R.H.

16

6730097

INSULATION

17

6730095

INSULATION pedal

18

6730096

INSULATION

19

6716800

INSULATION

20

6701674

INSULATION panel

21

6729786

PANEL

22

6649949

PLUG

23

6730099

INSULATION

24

84G3716

SCREW 5 for throttle bracket stop

25

6732025

STOP See Illustration THROTTLE/ PE1358 throttle

26

6732177

PANEL

27

6731899

PANEL

28

6733529

SEAL panel
