Запчасти Bobcat A-Series HEATER & A/C (Heater & A/C Option) (For Threaded Heater Valve) ACCESSORIES & OPTIONS

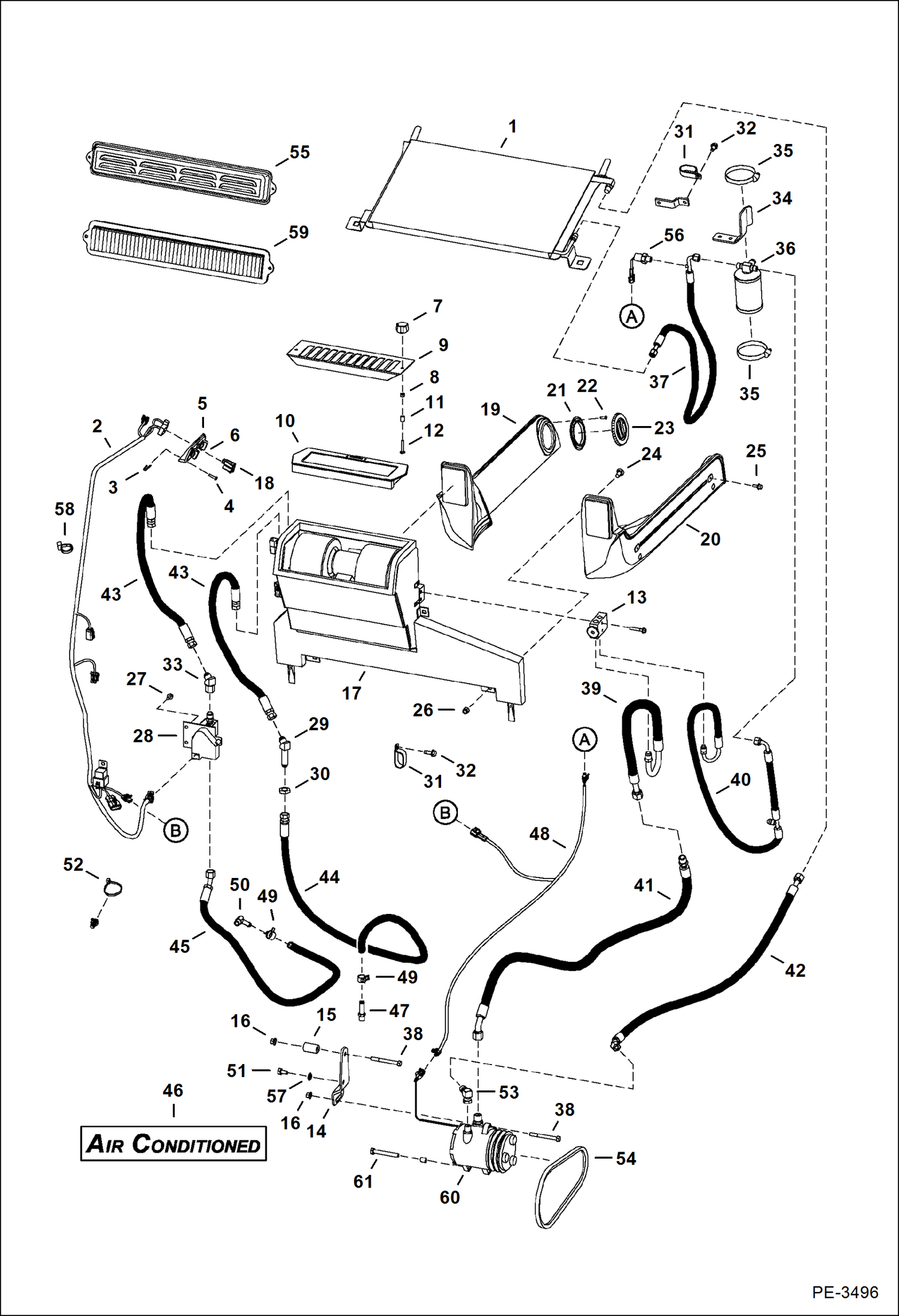

Схема запчастей Bobcat A-Series - HEATER & A/C (Heater & A/C Option) (For Threaded Heater Valve) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6674234

CONDENSER A/C

2

6725933

HARNESS hvac

3

6669091

CLIP retainer

4

6669224

BOLT

5

6674228

PANEL control

5

6640699

CONNECTOR

5

6718579

DECAL

5

6718887

PANEL A/C

5

6675176

SWITCH blower

5

6675177

KNOB

5

6675846

POTENTIOMETER

6

6675181

PLUG

7

6681614

KNOB

8

59D4

NUT 5

9

6718175

SCREEN filter

10

6678207

FILTER recirculation

11

6718837

SPACER

12

37C424

BOLT

13

6727326

MOUNT

14

6730265

MOUNT compressor

15

6730266

SPACER

16

83D6

NUT 5

17

6683001

HVAC

18

7169112

SWITCH, ROCKER A/C Was 6719176 - A

19

6735246

DUCT LH

20

6735245

DUCT RH

21

6675179

FLANGE

22

57G608

SCREW

23

6674231

VENT, HEATER CAB ROUND round

24

37C512

BOLT

25

35C410

BOLT 5

26

59D5

NUT 5

27

84G3110

SCREW

28

7100019

VALVE threaded hose connectors

29

46K6

ELBOW

30

86F6

NUT

31

31H46

CLAMP

32

84G3710

SCREW

33

12K6

UNION

34

6719459

MOUNT

35

44H48

CLAMP

36

6674235

RECEIVER DRIER

37

6675685

HOSE W/Ref. 56

37

7009976

O-RING #6 - Was 6675824 - A

38

17C656

BOLT

39

6675076

HOSE

39

7009978

O-RING #10 - Was 6675825 - A

40

6698442

HOSE Was 6675075 - A

40

6677122

CAP

40

7009976

O-RING #6 - Was 6675824 - A

41

6684908

HOSE, A/C ASSY

41

6685199

CAP

41

7009977

O-RING #8 - Was 6675538 - A

42

6692809

HOSE, A/C ASSY AC - Was 6684907 - A

42

CAP NLA - Was 6685198 - A

42

7009978

O-RING #10 - Was 6675825 - A

43

6732817

HOSE

44

6734519

HOSE

45

6733432

HOSE

46

6729077

DECAL

47

6731085

ELBOW

48

6719630

HARNESS ACS

49

5HM20

CLAMP

50

6731084

ADAPTER

51

5CM1020

SCREW

52

6624289

STRAP, TIE

53

6731255

ELBOW W/ O-ring - A

54

6730819

BELT compressor

55

6727848

COVER

56

6675779

SWITCH, PRESS W/harness

57

6557831

WASHER

58

6678666

MOUNT, STRAP TIE push in - Use W/tie strap

59

6677983

FILTER, AIR HEATER CAB

60

6733655

COMPRESSOR, A/C

60

6679145

CLUTCH

60

6648307

CONNECTOR 2-pin

60

6648308

CONNECTOR

61

5CM1080

SCREW

Выбрано товаров: 78
