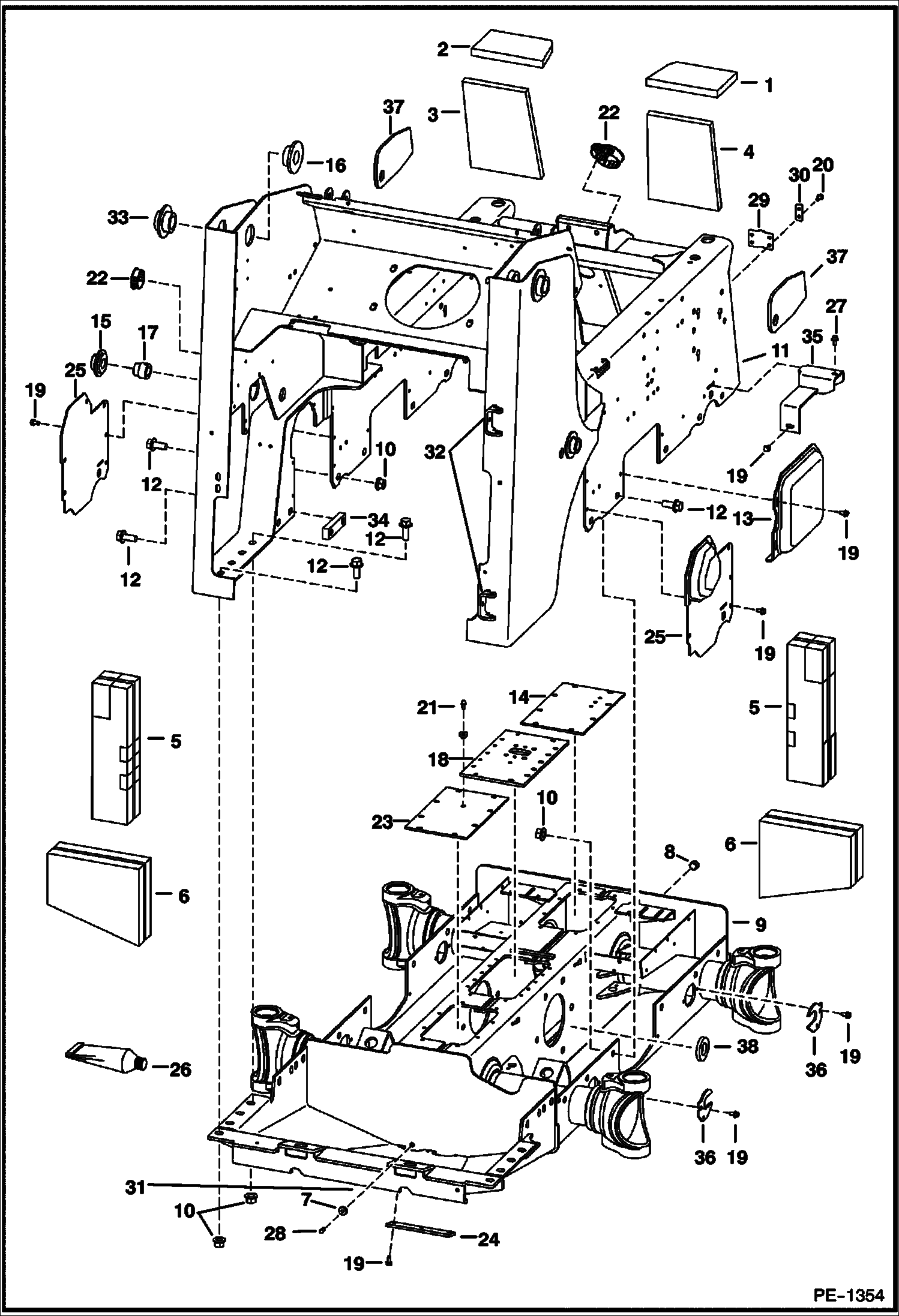

Запчасти Bobcat A-Series MAIN FRAME MAIN FRAME

1

6703963

INSULATION crossmember

2

6703964

INSULATION crossmember

3

6732726

INSULATION crossmember - Was 6703965 - A

4

6732725

INSULATION crossmember - Was 6703969 - A

5

7152242

INSULATION, STRIP fender - Was 6703967 - B

6

6703968

INSULATION transmission

7

6553411

BUSHING

8

6731121

PLUG

9

CHAINCASE See Illustration DRIVE TRAIN/ PE1355

10

53D12

NUT

11

6725574

MAIN FRAME

12

31C1228

BOLT

13

6719168

COVER

14

6729173

COVER See Illustration DISC BRAKE/ PE2277

15

6705047

BUSHING weld-on

16

6718544

BUSHING weld-on

17

6713823

BUSHING weld-on

18

COVER See Illustration DISC BRAKE/ PE2277

19

84G3712

BOLT 5

20

84G3716

SCREW 5

21

6680970

BREATHER See Illustration DISC BRAKE/ PE2277 Was 6670627 - A

22

6718796

PLUG horn/

23

6700330

COVER See Illustration DISC BRAKE/ PE2277 rear

24

6700182

COVER, DRAIN

25

6726451

COVER pump - right

25

6726452

COVER pump - left

26

6633583

SEALANT, POLYURETHANE 300 ML chaincase cover

27

35C610

BOLT 5 Was 35C000612B - B

28

6599645

PLUG, STEEL

29

6702164

SPACER flexible

30

6579106

SHIM

31

6706485

HOOK tie down - weld-on

32

6708987

HINGE, WELD-ON

33

6718545

BUSHING weld-on

34

6726867

BLOCK

35

7145685

SHIELD wheel positioning - R.H. front & L.H. rear - Was 6731354 - A

35

7145686

SHIELD wheel positioning - L.H. front & R.H. rear - Was 6731353 - A

36

6731052

COVER debris

37

6731939

BRACE

38

6680055

MAGNET
