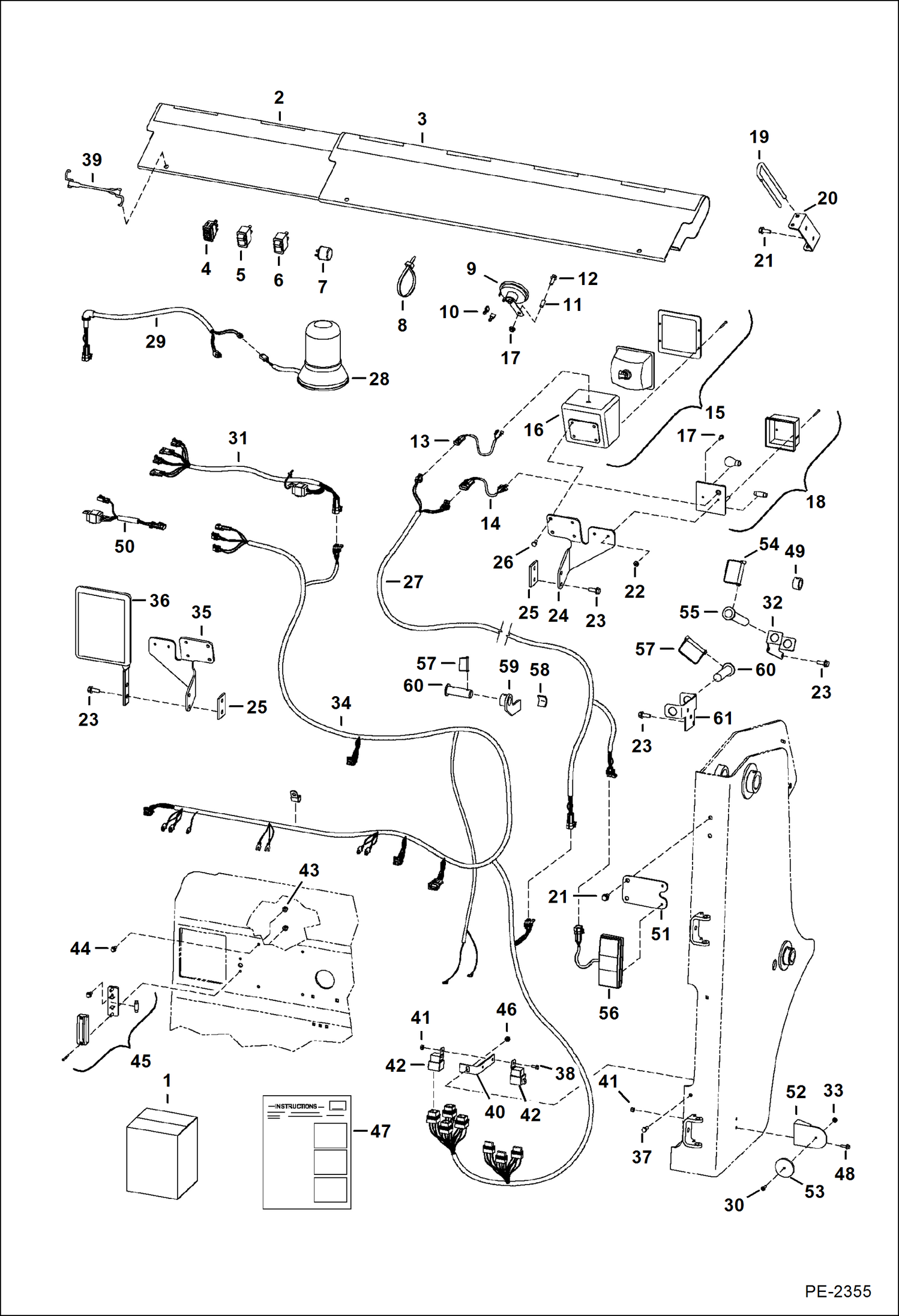

Запчасти Bobcat A-Series EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

1

KIT SALES - Order 6732387 from SALES

2

6713841

SHIELD bucket

3

6713842

SHIELD bucket

4

6676872

TURN SIGNAL

5

6668815

SWITCH hazard

6

6668816

SWITCH beacon

7

6557904

FLASHER

8

6624289

STRAP, TIE

9

6671106

HORN

10

6675064

TERMINAL

11

6732206

SPACER

12

35C536

BOLT

13

6713994

HARNESS adapter - headlight

14

6713993

HARNESS adapter - light

15

6665728

LIGHT front

15

6666570

BULB 40/45W

15

6666564

HOUSING

15

6666565

LENS

15

6666566

GASKET

16

6707804

HOUSING

17

85G808

SCREW

18

6665727

LIGHT

19

6731222

PIN Bob-Tach

20

6731973

HOLDER pin

21

84G3712

BOLT 5

22

12D8

NUT

23

84G3716

SCREW 5

23

84G3716

SCREW 5

24

MOUNT NLA - light - R.H. - Was 6713151 - A

25

6735825

SPACER

26

17C508

BOLT

27

6732081

HARNESS boom light - Was 6731239 - A

28

6675523

BEACON light

29

6718872

HARNESS cab exterior

30

85G1010

SCREW Was 85G000616B - A

31

6732045

HARNESS AWS stop lights

32

6733296

BRACKET pin holder

33

14D10

NUT Was 12D000006B - A

34

6726430

HARNESS engine/tail - Italian

35

MOUNT NLA - light - L.H. - Was 6713150 - A

36

6665860

KIT side mirror

37

17C512

BOLT 5

38

17C410

BOLT 10

39

6731819

STRAP rubber

40

6702650

MOUNT fuse

41

85D4

NUT 5

42

6670312

SWITCH, MAGNETIC relay

43

83D4

NUT 10

44

35C410

BOLT 5

45

6665729

LIGHT license plate

46

55D5

NUT

47

6901909

INSTRUCTIONS

48

35C412

BOLT

49

6733270

MOUNT

50

6733851

HARNESS OBW stop lights

51

7101104

MOUNT rear lights

52

6670620

MOUNT reflector

53

6670621

LENS reflector

54

6670668

PIN

55

6713990

PIN B/T lock

56

7101384

LIGHT

56

6686096

LENS amber - turn

56

6686097

BULB turn

56

6686098

BULB stop

56

6686099

LENS red - stop

56

6686100

SCREW

57

6656009

PIN

58

7117881

STOP

59

7117883

MOUNT

60

7117885

PIN

61

7117886

MOUNT
