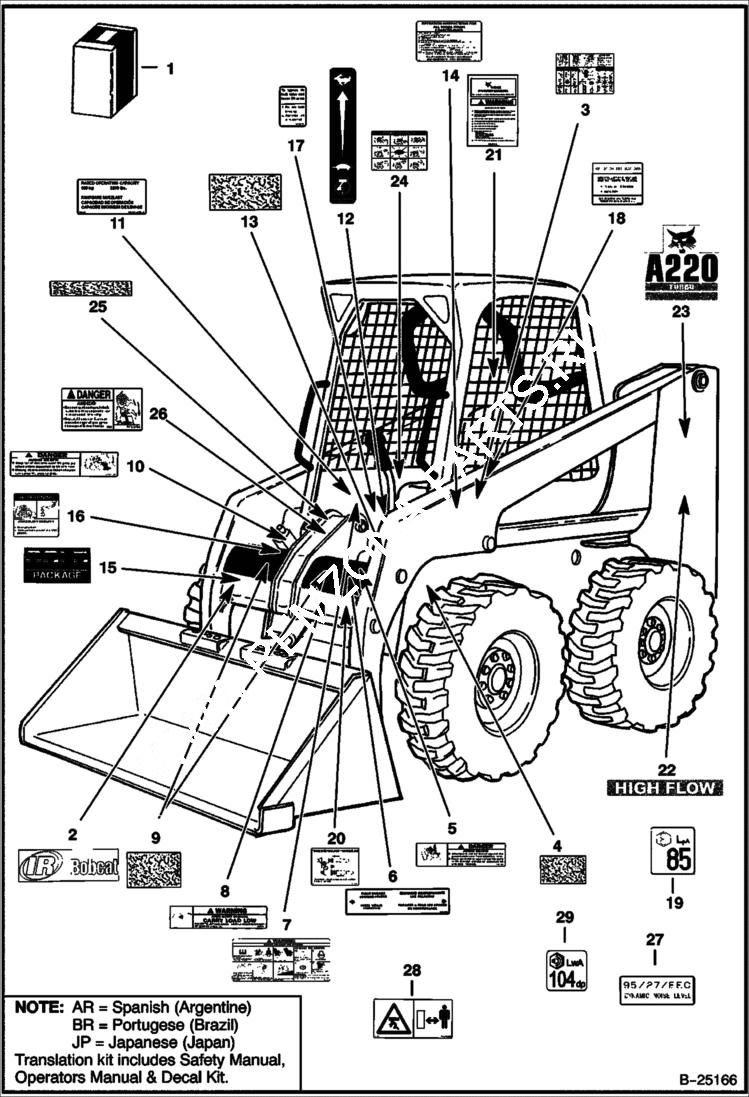

Запчасти Bobcat A-Series DECALS ACCESSORIES & OPTIONS

1

6902323

DECAL KIT decal - Was 6731634 - A

1

6731513AR

TRANSLATION KIT translation - SEE NOTE

1

6731513BR

TRANSLATION KIT translation - SEE NOTE

1

6731634AR

DECAL KIT decal - SEE NOTE

1

6731634BR

DECAL KIT decal - SEE NOTE

1

6731634JP

DECAL KIT decal - SEE NOTE

2

DECAL NLA - Ingersoll Rand - not in kit - Was 6727310 - A

3

6730921

DECAL, WARNING Was 6718701 - B

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702301

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6730212

DECAL Was 6718698 - B

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6702302

DECAL, DANGER

11

6730084

LOAD DECAL capacity - 1900 lbs. - Was 6710449 - B

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' (173 mm x 222 mm)

14

6730210

DECAL, OPERATION all wheel steer - Was 6705720 - B

15

6735862

DECAL gold package

16

6710358

DECAL warning

17

6711840

DECAL lift lock

18

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

19

6579385

DECAL Noise Warning - Europe

20

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

21

6730083

HANDBOOK, OPERATOR'S W/WIRE ROPE Was 6719563 - B

21

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

21

6558310

SLEEVE wire rope

21

84G3112

BOLT 5

22

6727913

DECAL high flow - Not in Kit - Was 6714534 - A

23

DECAL NLA - L.H. model no. A220 W/Bobcat head - Order 6729472, Also Order 6731508 Bobcat head decal - Was 6729626 - A

23

6729472

MODEL DECAL Model no. A220 W/O Bobcat head

24

6730922

DECAL right joystick

25

6710746

SAFETY TREAD 1.5 in x 15 in. (38 mm x 381 mm)

26

6717343

DECAL, DANGER

27

6715428

DECAL Dynamic noise level - Europe

28

6713507

DECAL stay clear -European -Not in Kit

29

6579404

DECAL Noise Warning - Europe
