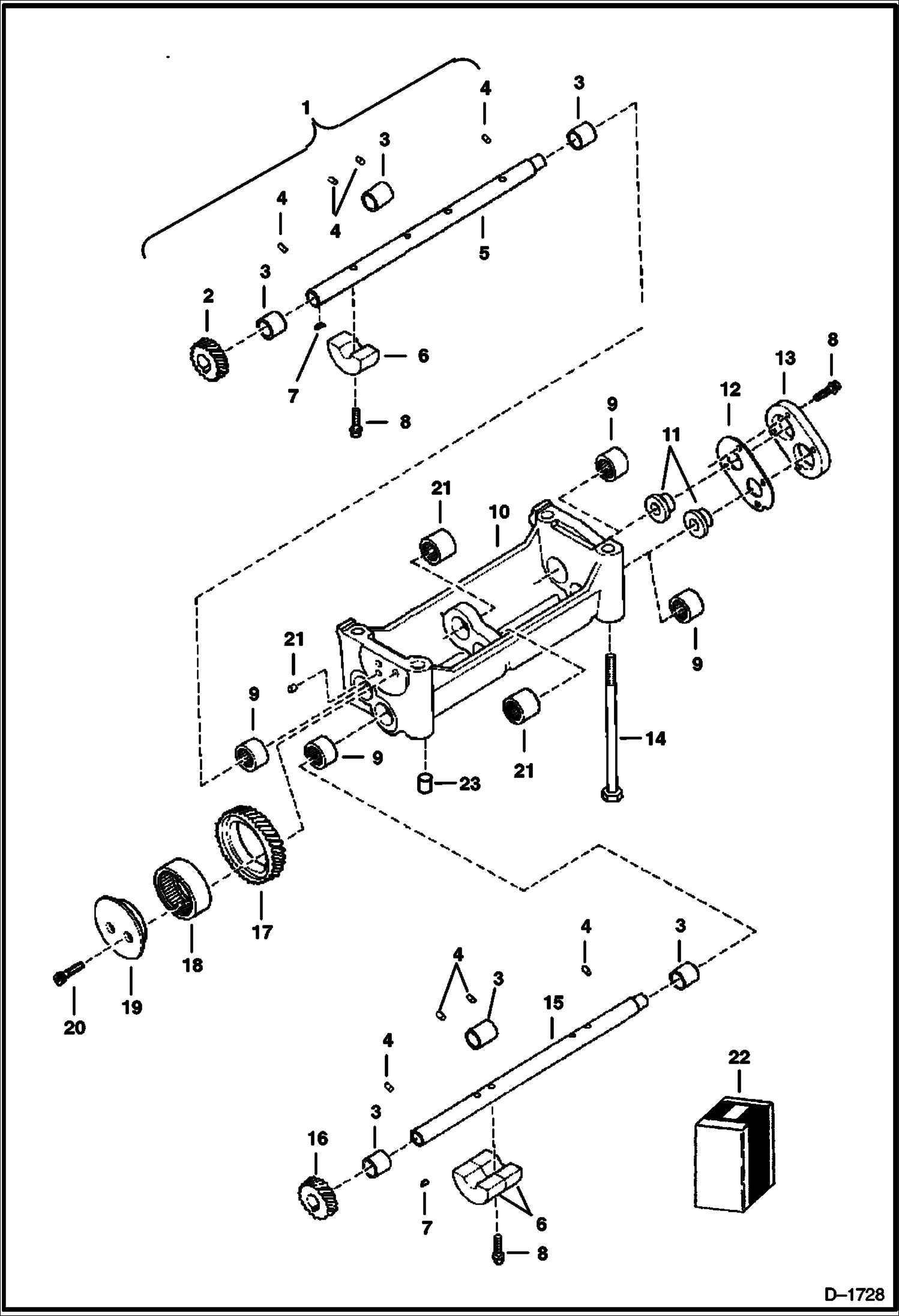

Запчасти Bobcat 900s BALANCER POWER UNIT

1

6631408

BALANCER ASSY. W/Ref. 2-21

2

6631397

GEAR

3

RACE NSS - Also Order Ref. 22

4

PIN NSS - Also Order Ref. 22

5

6631406

SHAFT

6

6631404

WEIGHT

7

6631174

KEY

8

1CM830

BOLT

9

6631298

BEARING

10

6631412

HOUSING

11

6631401

COLLAR

12

6631399

PLATE

13

6631400

PLATE

14

1CM14231

BOLT

15

6631407

SHAFT

16

6631398

GEAR

17

6641337

GEAR

18

6631147

BEARING

19

6641338

RETAINER

20

6631146

BOLT

21

6631411

BEARING

22

6631409

SHAFT ASSY. upper - Ref. 2-5, 7, 8 & 11

22

6631410

SHAFT ASSY. lower - Ref. 3, 4, 7, 8, 11, 15 & 16

23

6652492

DOWEL PIN
