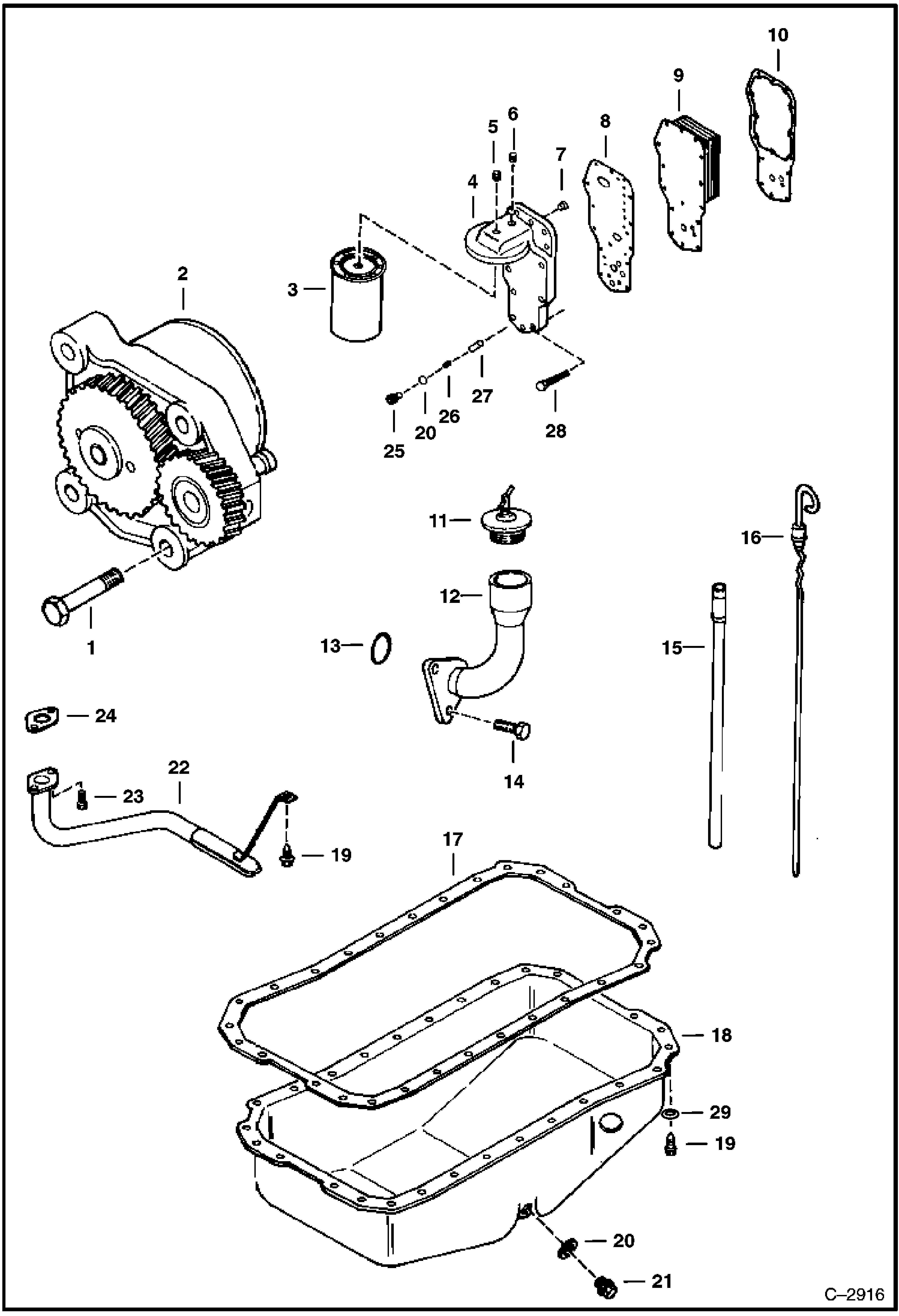

Запчасти Bobcat 900s LUBRICATION SYSTEM POWER UNIT

1

1CM830

BOLT

2

6631150

PUMP oil

3

1992368

ELEMENT oil filter

4

HEAD NLA - Order Ref. 4 (6660111 - Head), 20 and 25-27 - Was 6631173 - A

4

6660111

HEAD

5

6631073

PLUG

6

6631074

PLUG

7

6631175

VALVE pressure relief

8

6631289

GASKET

9

6631277

CORE cooler

10

6631290

GASKET

11

3679613

CAP

12

6631386

TUBE oil fill

13

6631207

O-RING

14

BOLT NLA - Was 29CM01275B - A

15

6631337

TUBE dipstick

16

6641081

DIPSTICK

17

6631220

GASKET oil pan

18

6631143

OIL PAN

19

29CM812

BOLT

20

6631184

WASHER sealing

20

6660112

RING

21

6631287

PLUG

22

6631374

TUBE oil suction

23

1CM816

BOLT

24

6631390

GASKET

25

6631287

PLUG

25

6660113

PLUG

26

6631208

SPRING

27

6631286

PLUNGER Was 6660114 - A

28

29CM835

BOLT

29

WASHER NLA - Was 6652502 - A
