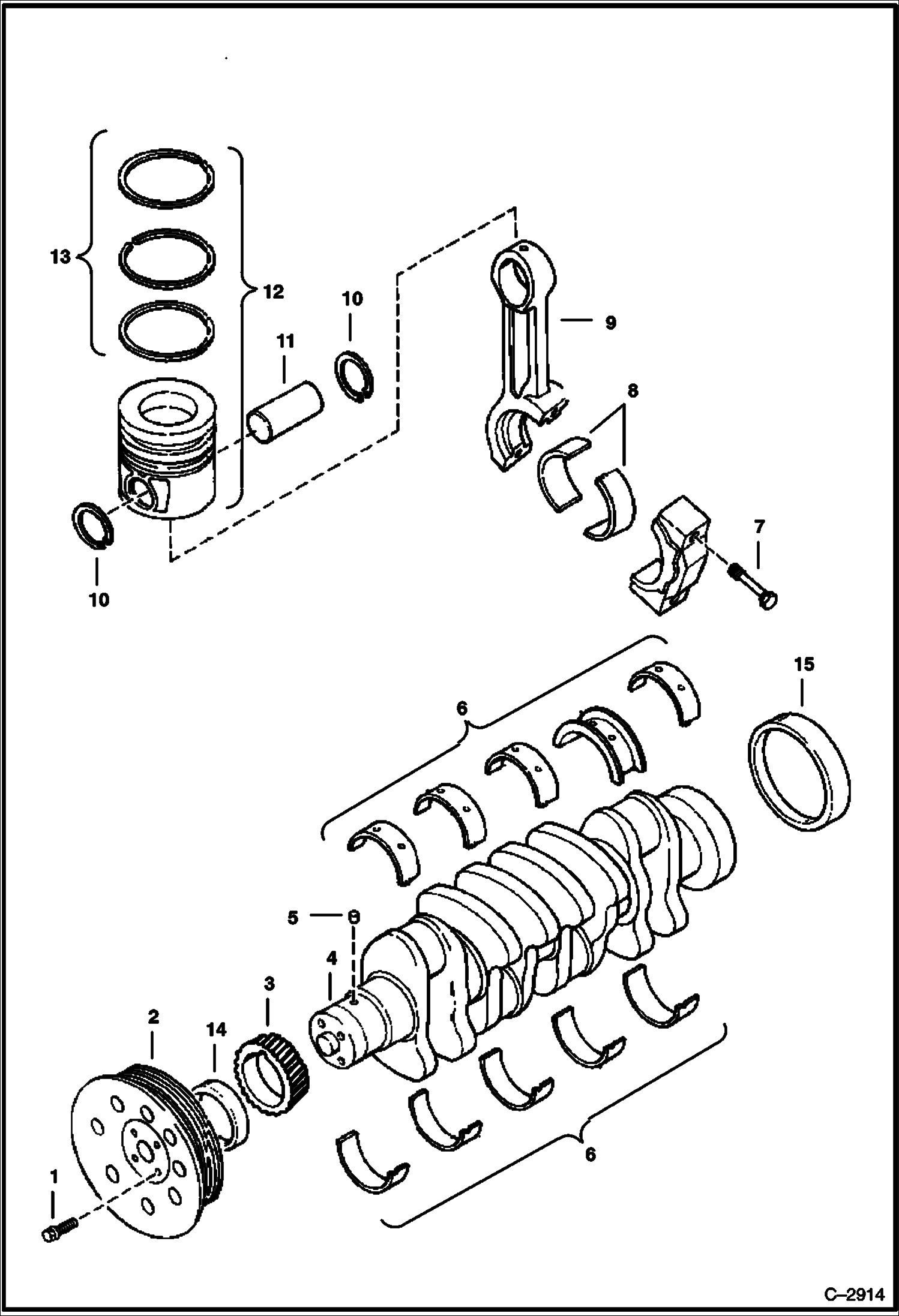

Запчасти Bobcat 900s PISTONS, CONN. RODS & CRANKSHAFT POWER UNIT

1

6631262

BOLT

2

6631263

PULLEY

3

6631144

GEAR

4

6631291

CRANKSHAFT W/Ref. 3 & 5

5

6631122

DOWEL

6

6631084

MAIN BEARING Std.

6

6631085

MAIN BEARING .010 - Complete Set

6

6631086

MAIN BEARING .020 - Complete Set

6

6631087

MAIN BEARING .030 - Complete Set

6

6631088

MAIN BEARING .040 - Complete Set

7

6631118

BOLT

8

6631142

BEARING rod - 1/2 of pair

8

6652503

BEARING rod - 1/2 of pair - .25mm undersize

8

6652504

BEARING rod - 1/2 of pair - .50mm undersize

8

6652505

BEARING rod - 1/2 of pair - .75mm undersize

8

6652506

BEARING rod - 1/2 of pair - 1.00mm undersize

9

6631158

ROD connecting

10

6631159

SNAP RING

11

6631163

PIN

12

6631094

PISTON Std. - W/Ref. 13

12

6631095

PISTON 0.5 mm - W/Ref. 13

12

6631096

PISTON 1.0 mm - W/Ref. 13

13

6631097

RINGS Std. - Set for one piston

13

6631098

RINGS 0.5 mm - Set for one piston

13

6663992

RINGS 1.0 mm - Set for one piston - Was 6631099 - A

14

6652495

SLEEVE wear - Front

15

6652496

SLEEVE wear - Rear - Was 665296 - D
